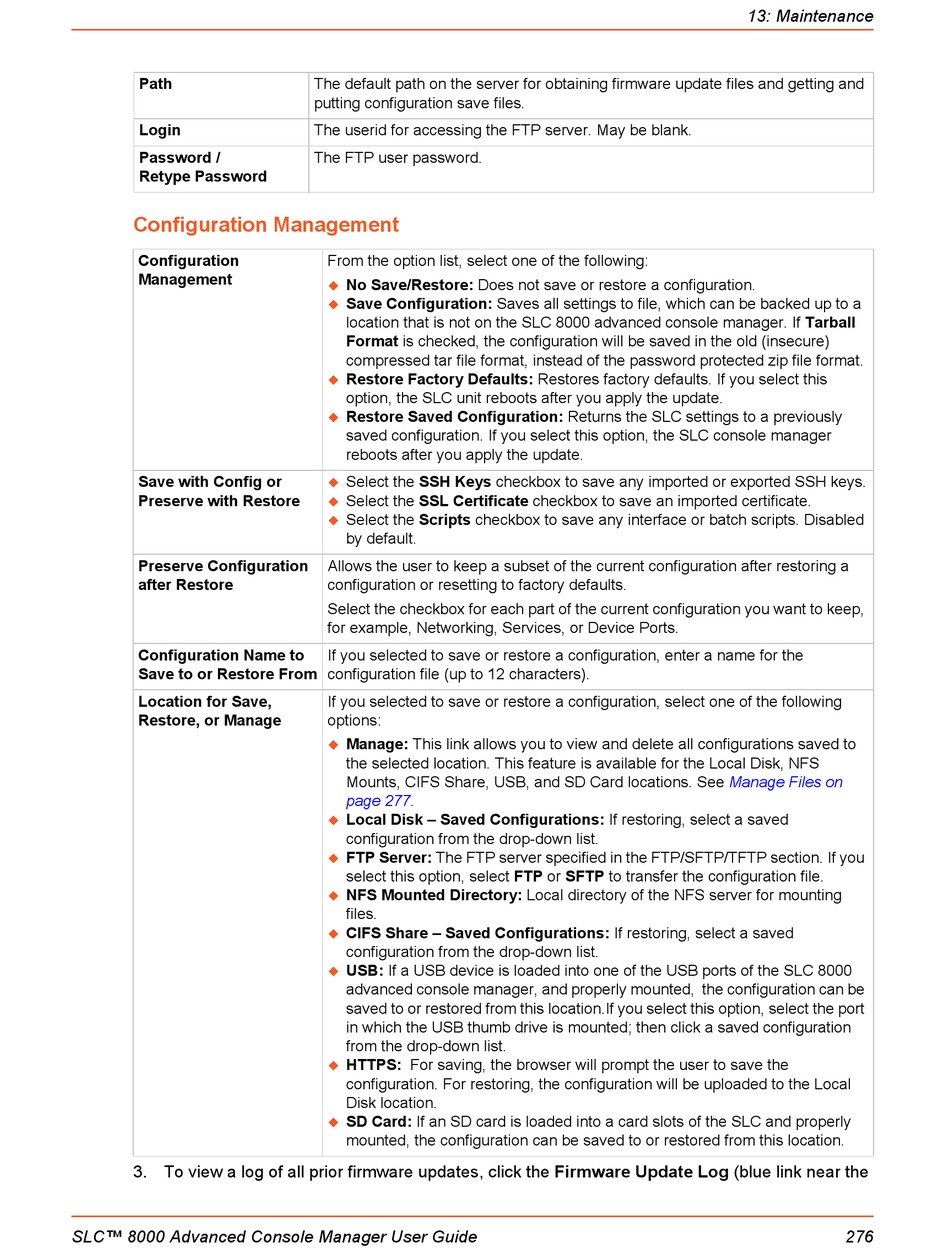

Configuration Management - Lantronix SLC 8000 User Manual

Path
Login
Password /
Retype Password

Configuration Management

Configuration
Management
Save with Config or
Preserve with Restore
Preserve Configuration
after Restore
Configuration Name to
Save to or Restore From
Location for Save,
Restore, or Manage
3. To view a log of all prior firmware updates, click the Firmware Update Log (blue link near the
SLC™ 8000 Advanced Console Manager User Guide
The default path on the server for obtaining firmware update files and getting and
putting configuration save files.
The userid for accessing the FTP server. May be blank.
The FTP user password.
From the option list, select one of the following:
No Save/Restore: Does not save or restore a configuration.

Save Configuration: Saves all settings to file, which can be backed up to a

location that is not on the SLC 8000 advanced console manager. If Tarball
Format is checked, the configuration will be saved in the old (insecure)
compressed tar file format, instead of the password protected zip file format.
Restore Factory Defaults: Restores factory defaults. If you select this

option, the SLC unit reboots after you apply the update.
Restore Saved Configuration: Returns the SLC settings to a previously

saved configuration. If you select this option, the SLC console manager
reboots after you apply the update.
Select the SSH Keys checkbox to save any imported or exported SSH keys.

Select the SSL Certificate checkbox to save an imported certificate.

Select the Scripts checkbox to save any interface or batch scripts. Disabled

by default.
Allows the user to keep a subset of the current configuration after restoring a
configuration or resetting to factory defaults.
Select the checkbox for each part of the current configuration you want to keep,
for example, Networking, Services, or Device Ports.
If you selected to save or restore a configuration, enter a name for the
configuration file (up to 12 characters).
If you selected to save or restore a configuration, select one of the following
options:
Manage: This link allows you to view and delete all configurations saved to

the selected location. This feature is available for the Local Disk, NFS
Mounts, CIFS Share, USB, and SD Card locations. See
page 277.
Local Disk – Saved Configurations: If restoring, select a saved

configuration from the drop-down list.
FTP Server: The FTP server specified in the FTP/SFTP/TFTP section. If you

select this option, select FTP or SFTP to transfer the configuration file.
NFS Mounted Directory: Local directory of the NFS server for mounting

files.
CIFS Share – Saved Configurations: If restoring, select a saved

configuration from the drop-down list.
USB: If a USB device is loaded into one of the USB ports of the SLC 8000

advanced console manager, and properly mounted, the configuration can be
saved to or restored from this location.If you select this option, select the port
in which the USB thumb drive is mounted; then click a saved configuration
from the drop-down list.
HTTPS: For saving, the browser will prompt the user to save the

configuration. For restoring, the configuration will be uploaded to the Local
Disk location.
SD Card: If an SD card is loaded into a card slots of the SLC and properly

mounted, the configuration can be saved to or restored from this location.
13: Maintenance
Manage Files on
276
