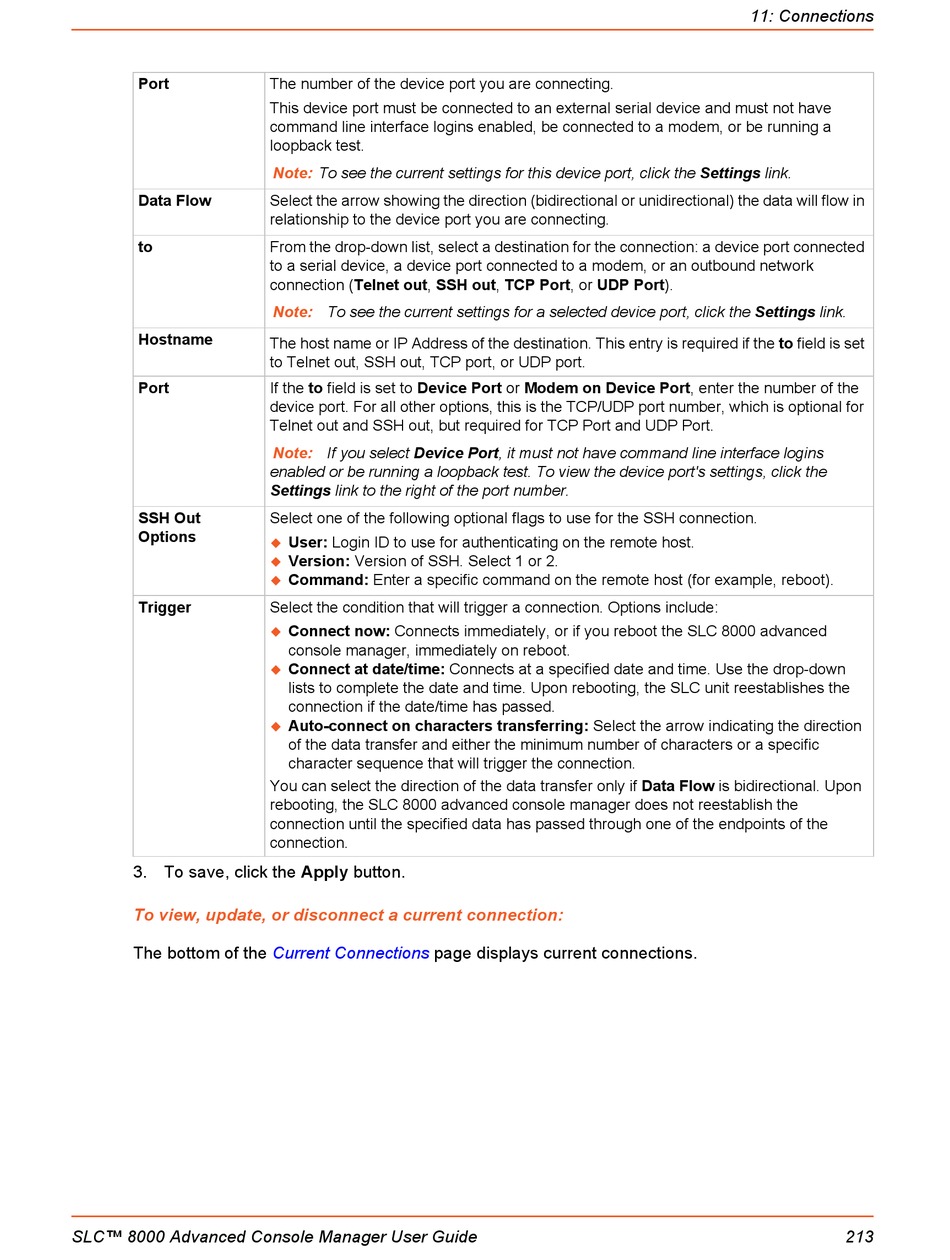

Lantronix SLC 8000 User Manual page 213

Port
Data Flow
to
Hostname
Port
SSH Out
Options
Trigger
3. To save, click the Apply button.
To view, update, or disconnect a current connection:
The bottom of the
SLC™ 8000 Advanced Console Manager User Guide
The number of the device port you are connecting.
This device port must be connected to an external serial device and must not have
command line interface logins enabled, be connected to a modem, or be running a
loopback test.
Note: To see the current settings for this device port, click the Settings link.
Select the arrow showing the direction (bidirectional or unidirectional) the data will flow in
relationship to the device port you are connecting.
From the drop-down list, select a destination for the connection: a device port connected
to a serial device, a device port connected to a modem, or an outbound network
connection (Telnet out, SSH out, TCP Port, or UDP Port).
Note: To see the current settings for a selected device port, click the Settings link.
The host name or IP Address of the destination. This entry is required if the to field is set
to Telnet out, SSH out, TCP port, or UDP port.
If the to field is set to Device Port or Modem on Device Port, enter the number of the
device port. For all other options, this is the TCP/UDP port number, which is optional for
Telnet out and SSH out, but required for TCP Port and UDP Port.
Note: If you select Device Port, it must not have command line interface logins
enabled or be running a loopback test. To view the device port's settings, click the
Settings link to the right of the port number.
Select one of the following optional flags to use for the SSH connection.
User: Login ID to use for authenticating on the remote host.

Version: Version of SSH. Select 1 or 2.

Command: Enter a specific command on the remote host (for example, reboot).

Select the condition that will trigger a connection. Options include:
Connect now: Connects immediately, or if you reboot the SLC 8000 advanced

console manager, immediately on reboot.
Connect at date/time: Connects at a specified date and time. Use the drop-down

lists to complete the date and time. Upon rebooting, the SLC unit reestablishes the
connection if the date/time has passed.
Auto-connect on characters transferring: Select the arrow indicating the direction

of the data transfer and either the minimum number of characters or a specific
character sequence that will trigger the connection.
You can select the direction of the data transfer only if Data Flow is bidirectional. Upon
rebooting, the SLC 8000 advanced console manager does not reestablish the
connection until the specified data has passed through one of the endpoints of the
connection.
Current Connections page displays current connections.
