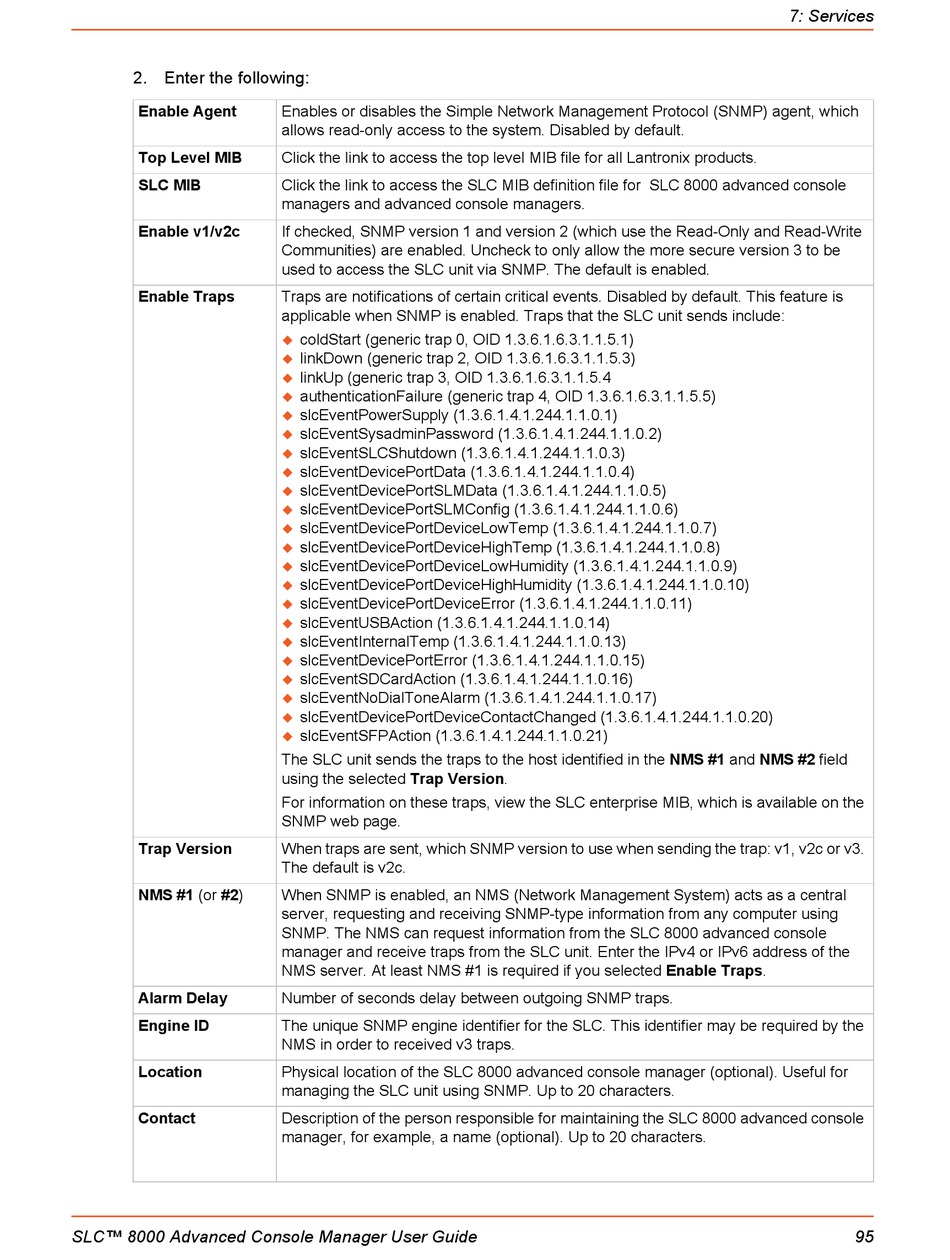

2. Enter the following:
Enable Agent
Top Level MIB
SLC MIB
Enable v1/v2c
Enable Traps
Trap Version
NMS #1 (or #2)
Alarm Delay
Engine ID
Location
Contact
SLC™ 8000 Advanced Console Manager User Guide
Enables or disables the Simple Network Management Protocol (SNMP) agent, which
allows read-only access to the system. Disabled by default.
Click the link to access the top level MIB file for all Lantronix products.
Click the link to access the SLC MIB definition file for SLC 8000 advanced console
managers and advanced console managers.
If checked, SNMP version 1 and version 2 (which use the Read-Only and Read-Write
Communities) are enabled. Uncheck to only allow the more secure version 3 to be
used to access the SLC unit via SNMP. The default is enabled.
Traps are notifications of certain critical events. Disabled by default. This feature is
applicable when SNMP is enabled. Traps that the SLC unit sends include:
coldStart (generic trap 0, OID 1.3.6.1.6.3.1.1.5.1)

linkDown (generic trap 2, OID 1.3.6.1.6.3.1.1.5.3)

linkUp (generic trap 3, OID 1.3.6.1.6.3.1.1.5.4

authenticationFailure (generic trap 4, OID 1.3.6.1.6.3.1.1.5.5)

slcEventPowerSupply (1.3.6.1.4.1.244.1.1.0.1)

slcEventSysadminPassword (1.3.6.1.4.1.244.1.1.0.2)

slcEventSLCShutdown (1.3.6.1.4.1.244.1.1.0.3)

slcEventDevicePortData (1.3.6.1.4.1.244.1.1.0.4)

slcEventDevicePortSLMData (1.3.6.1.4.1.244.1.1.0.5)

slcEventDevicePortSLMConfig (1.3.6.1.4.1.244.1.1.0.6)

slcEventDevicePortDeviceLowTemp (1.3.6.1.4.1.244.1.1.0.7)

slcEventDevicePortDeviceHighTemp (1.3.6.1.4.1.244.1.1.0.8)

slcEventDevicePortDeviceLowHumidity (1.3.6.1.4.1.244.1.1.0.9)

slcEventDevicePortDeviceHighHumidity (1.3.6.1.4.1.244.1.1.0.10)

slcEventDevicePortDeviceError (1.3.6.1.4.1.244.1.1.0.11)

slcEventUSBAction (1.3.6.1.4.1.244.1.1.0.14)

slcEventInternalTemp (1.3.6.1.4.1.244.1.1.0.13)

slcEventDevicePortError (1.3.6.1.4.1.244.1.1.0.15)

slcEventSDCardAction (1.3.6.1.4.1.244.1.1.0.16)

slcEventNoDialToneAlarm (1.3.6.1.4.1.244.1.1.0.17)

slcEventDevicePortDeviceContactChanged (1.3.6.1.4.1.244.1.1.0.20)

slcEventSFPAction (1.3.6.1.4.1.244.1.1.0.21)

The SLC unit sends the traps to the host identified in the NMS #1 and NMS #2 field
using the selected Trap Version.
For information on these traps, view the SLC enterprise MIB, which is available on the
SNMP web page.
When traps are sent, which SNMP version to use when sending the trap: v1, v2c or v3.
The default is v2c.
When SNMP is enabled, an NMS (Network Management System) acts as a central
server, requesting and receiving SNMP-type information from any computer using
SNMP. The NMS can request information from the SLC 8000 advanced console
manager and receive traps from the SLC unit. Enter the IPv4 or IPv6 address of the
NMS server. At least NMS #1 is required if you selected Enable Traps.
Number of seconds delay between outgoing SNMP traps.
The unique SNMP engine identifier for the SLC. This identifier may be required by the
NMS in order to received v3 traps.
Physical location of the SLC 8000 advanced console manager (optional). Useful for
managing the SLC unit using SNMP. Up to 20 characters.
Description of the person responsible for maintaining the SLC 8000 advanced console
manager, for example, a name (optional). Up to 20 characters.
