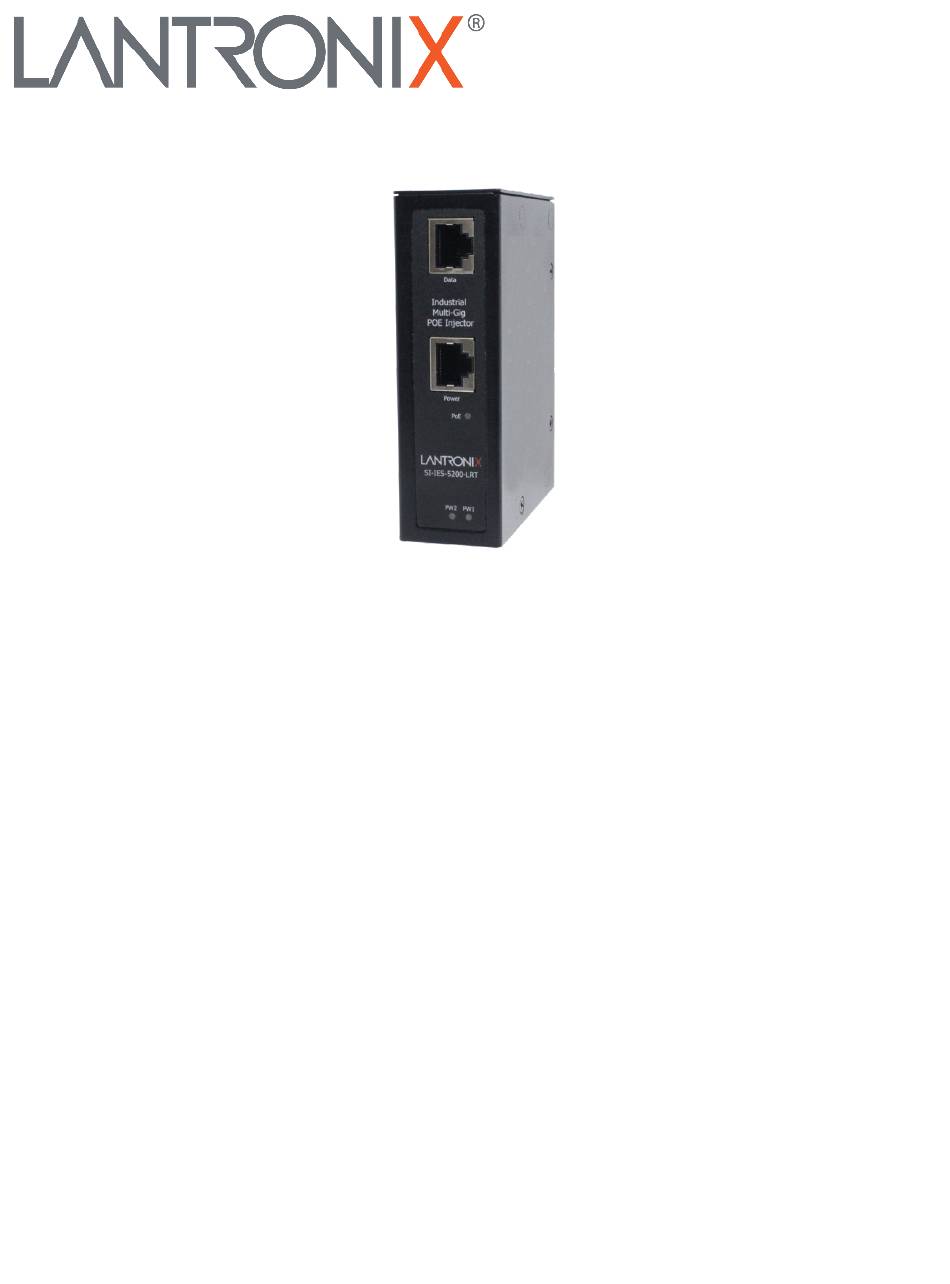

- Page 1 SI-IES-5200-LRT Unmanaged Hardened PoE++ Injector (1) 10M/100M/1G/2.5G/5G/10GBase-T(X) Port + (1) 10M/100M/1G/2.5G/5G/10GBase-T(X) PoE++ Port User Guide Part Number 33879 Revision A May 2025...
-
Page 2: Intellectual Property
Intellectual Property © 2025 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders. -
Page 3: Revision History
Revision History Date Description May 2025 Initial document release. SI-IES-5200-LRT User Guide... -
Page 4: Cautions And Warnings
Warning: Ensure that the disconnect device for the external power source is OPEN (turned OFF) before disconnecting or connecting the power leads to the power module. Failure to observe this warning could result in an electric shock, even death. Electrical Safety Warnings on page for electrical safety warnings translated into multiple languages. SI-IES-5200-LRT User Guide... -
Page 5: Table Of Contents
EU Declaration of Conformity ..........................19 UK Declaration of Conformity ........................... 20 NDAA, RoHS, REACH and WEEE Compliance ..................... 21 Trade Agreement Act (TAA) Compliant Products ....................21 Accessibility Statement ............................. 21 Electrical Safety Warnings ..........................21 SI-IES-5200-LRT User Guide... -
Page 6: Introduction
Product Description The SI-IES-5200-LRT is an unmanaged hardened multi-Gigabit PoE++ injector that adds up to 90 Watts of power on a network segment. This injector is designed specifically to meet the demand of higher bandwidth (up to 10G), higher power (up to 90W) devices such as wireless access points, multi-lens surveillance cameras, license plate readers and other IP networked devices in locations where a power source is not readily available. -
Page 7: Ordering Information
SFP Modules product page OCA-P181610 18 in. x16 in. x10 in. polycarbonate enclosure Industrial Power Supplies The following power supplies are available from Lantronix. Industrial power supplies are sold separately. Input 88-264VAC, 124-370VDC 25105 Output 48-55VDC, 2.5A, 120W For detailed information, see https://www.lantronix.com/products/25105-2/... -
Page 8: Specifications
4W @ 56VDC (No PoE) • • 101.4W @ 56VDC (Full PoE) PoE Power Maximum PoE power 90W at 56VDC input Provides 4 pin terminal block Removable Terminal Wire range: 0.34mm^2 to 2.5mm^2 • Block • Solid wire (AWG):12-24/14-22 SI-IES-5200-LRT User Guide... -
Page 9: Certifications
IEC 61000-4-3 (RS) • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV • • IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV IEC 61000-4-6 (CS) • • IEC 61000-4-8 Vibration EN 60068-2-6 Shock EN 60068-2-27 Free Fall EN 60068-2-32 SI-IES-5200-LRT User Guide... -
Page 10: Hardware Description
2. Hardware Description Hardware Description Product Views Front Panel and Bottom Panel SI-IES-5200-LRT User Guide... -
Page 11: Housing Dimensions
2. Hardware Description Housing Dimensions The dimensions are shown in millimeters (mm). LED Indicators The SI-IES-5200-LRT front panel LEDs are shown and described below. SI-IES-5200-LRT User Guide... -
Page 12: Grounding The Poe Injector
Do not connect earth ground to: Isolated DC Supply Negative input terminal Connect chassis to earth ground Positive input terminal Terminal Block and Ground Screw Connect a wire from the PoE Injector chassis ground to the earth ground. SI-IES-5200-LRT User Guide... -
Page 13: Wiring The Power Inputs
Terminal Block Requirements The removable 4-Pin Terminal Block requirements for power connection are provided below. • Wire range: 0.34mm^2 to 2.5mm^2 • Solid wire (AWG):12-24/14-22 Stranded wire (AWG): 12-24/14-22 • Torque:5lb-In/0.5Nm/0.56Nm • • Wire Strip length: 7-8mm SI-IES-5200-LRT User Guide... -
Page 14: Installation
DIN Rail Mounting The DIN-rail clip is screwed onto the SI-IES-5200-LRT when built at the factory. If the DIN-rail clip is not installed, see the figure below to install the DIN-rail clip onto the switch. 1. Use the screws to install the DIN-rail clip on the SI-IES-5200-LRT. -
Page 15: Wall Mounting
3. Installation 2. Lightly push down on the SI-IES-5200-LRT until the bottom of DIN-rail clip snaps onto the bottom edge of the DIN-rail track. 3. Check that the SI-IES-5200-LRT is securely mounted on the track. 4. To remove the SI-IES-5200-LRT from the track, reverse the steps above. -
Page 16: Cable Connections
IEEE 802.3af/at/bt standards. The higher quality powered device (PD) you connect to, the more reliable the network will be. When connecting to a poor quality PD, it cannot generate a strong enough signal for the remote switch. Always make sure you have a high-quality PD to perform well on your network. SI-IES-5200-LRT User Guide... -
Page 17: Troubleshooting
1. Check the power source, power supply, and power cord for proper operation. Avoid using a switch power outlet. 2. If the SI-IES-5200-LRT is not producing full PoE output, make sure that the power supply is adjusted to provide the required input power to the PD. -
Page 18: Compliance
5. Compliance Compliance Compliance Information (According to ISO/IEC Guide and EN 45014) Manufacturer’s Name & Address: Lantronix, Inc. 48 Discovery, Suite 250, Irvine, CA 92618 USA Product Family: SI-IES-5200-LRT Conforms to the following standards or other normative documents: Country Specification... -
Page 19: Eu Declaration Of Conformity
5. Compliance EU Declaration of Conformity SI-IES-5200-LRT User Guide... -
Page 20: Uk Declaration Of Conformity
5. Compliance UK Declaration of Conformity SI-IES-5200-LRT User Guide... -
Page 21: Ndaa, Rohs, Reach And Weee Compliance
See the TAA webpage at https://www.lantronix.com/legal/rohs/taa-compliant-products/. Accessibility Statement In our effort to help provide a fully accessible and optimized experience for our website visitors, lantronix.com has taken careful measures to help ensure an enhanced user experience, whether the website visitor is using assistive technologies such as a screen reader, magnifier or other assistive technology to access the website.
