To configure how secure Lantronix devices are searched for on the network:
1. Click the Search Options link on the top right of the
page. The following web page displays:
2. Enter the following:
Secure Lantronix
Network Search
IP Address
3. If you entered an IP address, click the Add IP Address button. The IP address displays in the
IP Address List.
4. Repeat steps 2 and 3 for each IP address you want to add.
5. To delete an IP address from the IP Address List, select the address and click the Delete IP
Address button.
6. Click the Apply button. When the confirmation message displays, click Secure Lantronix
Network on the main menu. The
secure Lantronix devices resulting from the search. You can now manage these devices.
SLC™ 8000 Advanced Console Manager User Guide

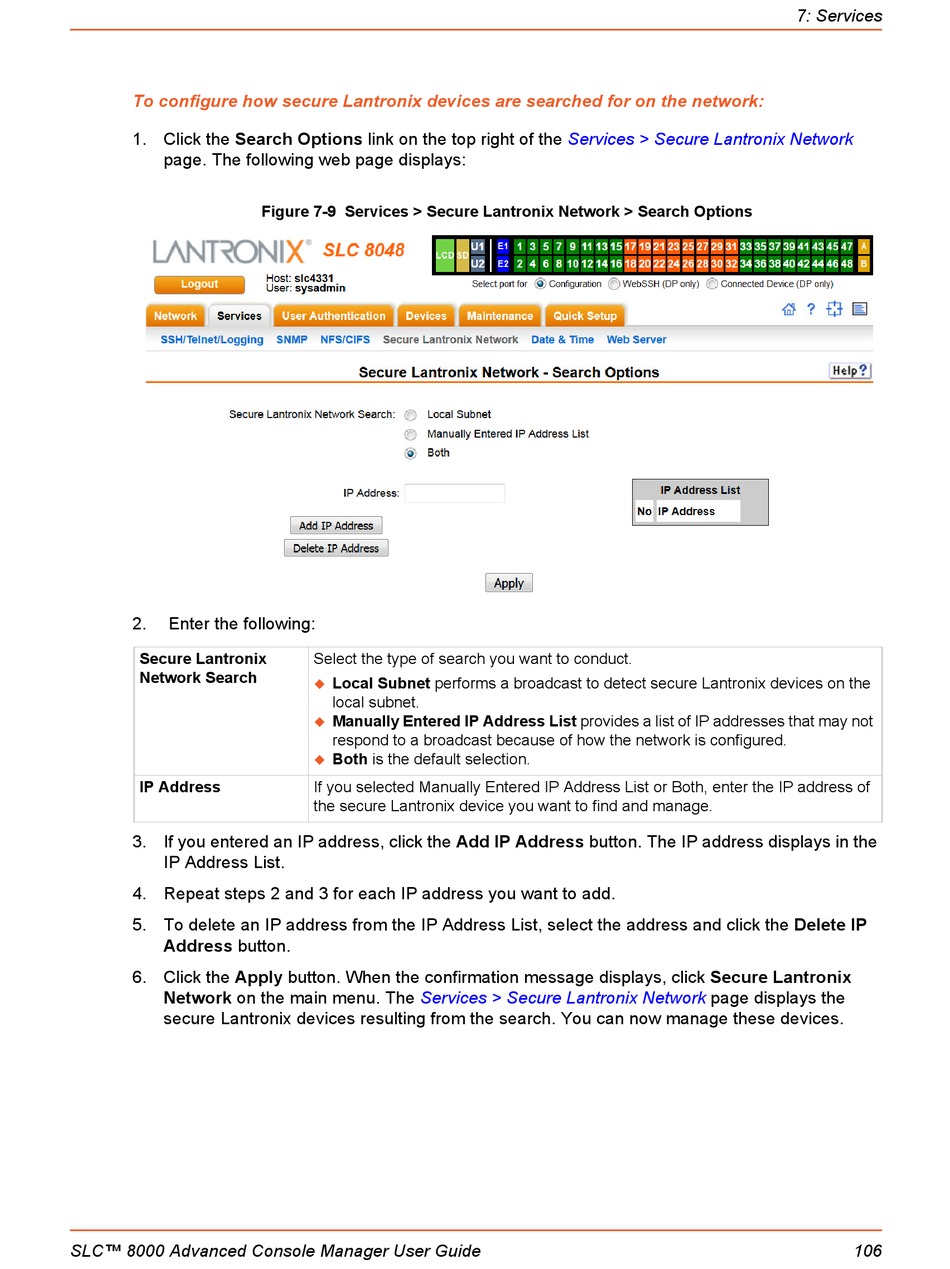

Figure 7-9 Services > Secure Lantronix Network > Search Options
Select the type of search you want to conduct.
Local Subnet performs a broadcast to detect secure Lantronix devices on the

local subnet.
Manually Entered IP Address List provides a list of IP addresses that may not

respond to a broadcast because of how the network is configured.
Both is the default selection.

If you selected Manually Entered IP Address List or Both, enter the IP address of
the secure Lantronix device you want to find and manage.
Services > Secure Lantronix Network
Services > Secure Lantronix Network
page displays the
7: Services
106
