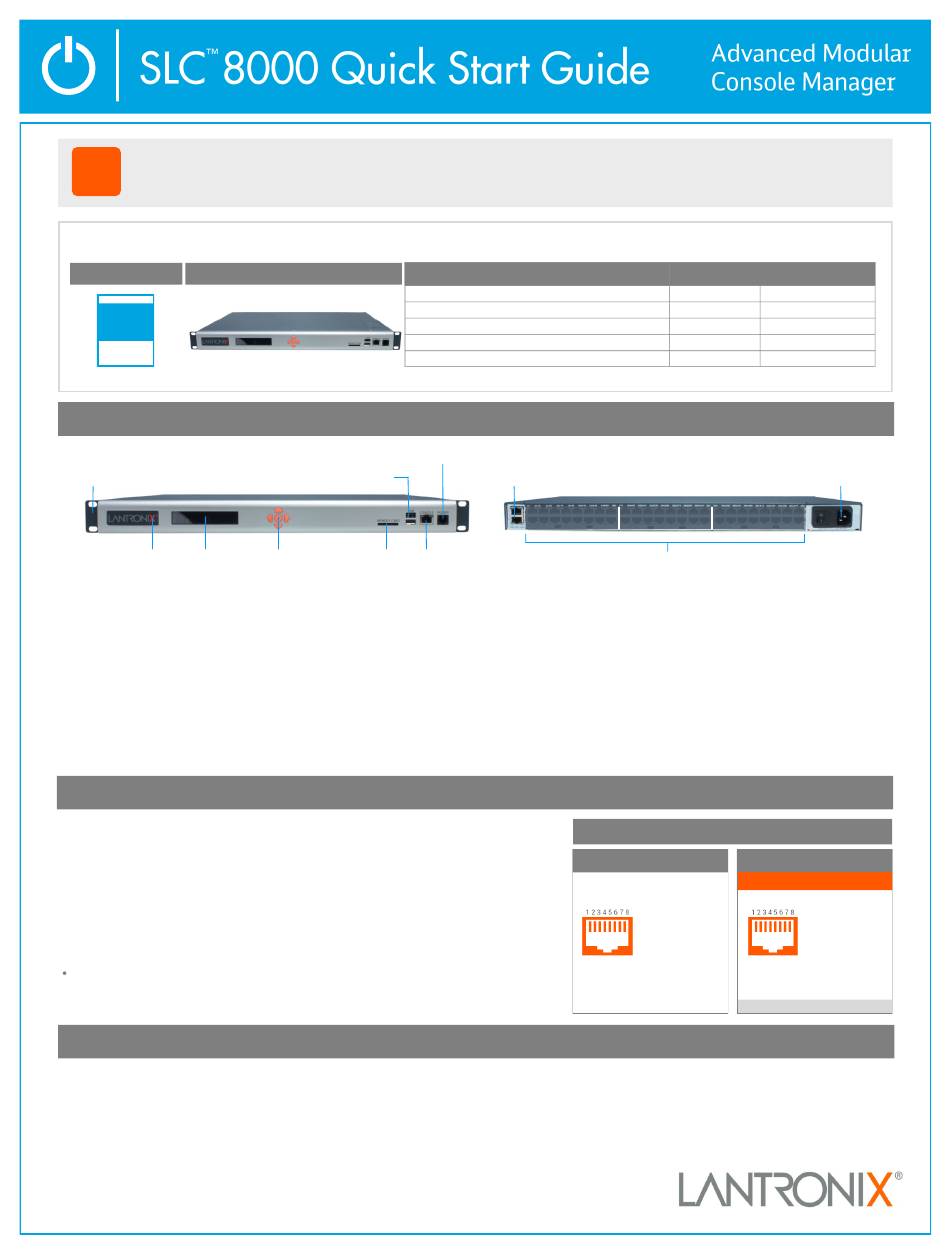

Lantronix SLC 8000 Quick Start Manual

!
Thank you for choosing Lantronix. Please register the SLC 8000 Console Manager in order to receive
notifications for firmware and documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX
Quick Start Guide SLC 8000 Console Manager
START
1. HARDWARE OVERVIEW
Front View
Front-mid-rear
Mounting Bracket
Indicator LED LCD
The Lantronix SLC 8000 Advanced Console Manager enables IT professionals to remotely and securely administer servers and networking equipment.
Leveraging the console or emergency management port built into most servers and networking equipment, the SLC 8000 provides remote access
anywhere, anytime. All that is required is an available console, AUX, or serial port on the attached equipment. Using in-band management, you can
manage equipment over the network from virtually any place, using familiar tools like Telnet or Secure Shell (SSH). Out-of-band management
provides access from a local terminal or through an internal modem (P/N 56KINTMODEM-01, sold separately). If a modem is used, dial-in access is
possible in the event that the IP network is unavailable. Once connected, the user has access to the server or IT equipment's command line interface
(CLI) via the console port to perform maintenance or management tasks. The front LCD panel and keypad allow for quick and easy network
configuration.
All SLC 8000 models are compatible with a variety of equipment, including:
• Switches • Routers • Firewalls • Servers • UPS systems • PBX systems • Telecom switches • PDU
2. CONNECTING THE SLC 8000
The front console port allows a dumb terminal or PC with terminal emulation software to
locally access management functions and connected devices.
The device ports allow simple and flexible connections to serial devices using adapters and
a standard CAT5 cable. Connect one end of the CAT5 cable to the device port and the other
end to an adapter that attaches to the serial console of the target system.
For example, to connect a PC to the console port of the SLC 8000, you only need the RJ45
to DB9F Adapter and a standard CAT5 cable which is supplied with the unit.
The default communication parameters for the device ports and console ports are:
9600 baud • 1 stop bit • 8 data bits • No flow control • No parity
Note: SLC 8000 device ports are reversed by default, but are software configurable.
3. HARDWARE INSTALLATION
1. Install the unit in a 19-inch rack.
Warning: Do not block the air vents on the sides of the unit. If mounted in an enclosed rack, it is recommended that the rack have a ventilation fan.
2. Connect the equipment to the numbered device ports on the back of the unit using the appropriate cables and adapters.
3. If you installed the internal modem, connect a RJ11 cable between the front panel modem port on the SLC 8000 to your phone line.
4. Connect the unit to the network using the upper network port (Ethernet 1).
5. Connect the power cord and apply power.
6. Wait about a minute and a half for the boot process to complete. When the boot process ends,
the SLC model name and clock appear on the LCD. Detected faults or process messages may also display.
For AC Supply Models:
For DC Supply Models:
RJ45 to RJ45, CAT5 Cable, 6.6 ft (2 m)
RJ45 to DB9F Adapter*
RJ45 Loopback Cable*
* Only included for models with RJ45 modules
Modem (Optional)
Dual USB Ports
SD Card
Console
Keypad
Accessories
AC Power Cord included only
DC Installation Kit only
10/100/1000
Dual Network Ports
Bay1
Device Ports (Modular)
Console Port (RS-232)
1. RTS
2. DTR
3. TX
4. GND
5. GND
6. RX
7. DSR
8. CTS
1
Part Number Quantity
500-041-ACC 1 for Single, 2 for Dual
083-152-ACC 1
200.0062 1
200.2070A 1
500-153 1
Back View
Power Inlet
(Dual AC or Single AC or Dual DC)
Bay2 Bay2
Default Pin Assignments
Device Ports (RS-232)
Reversed by Default
(Out)
1. CTS
(Out) 2. DSR
(Out)
3. RX
4. GND
5. GND
(In)
6. TX
Software
(In)
7. DTR
Reversible
(In)
8. RTS
Only for models with RJ45 modules
(In)
(In)
(In)
(Out)
(Out)
(Out)
