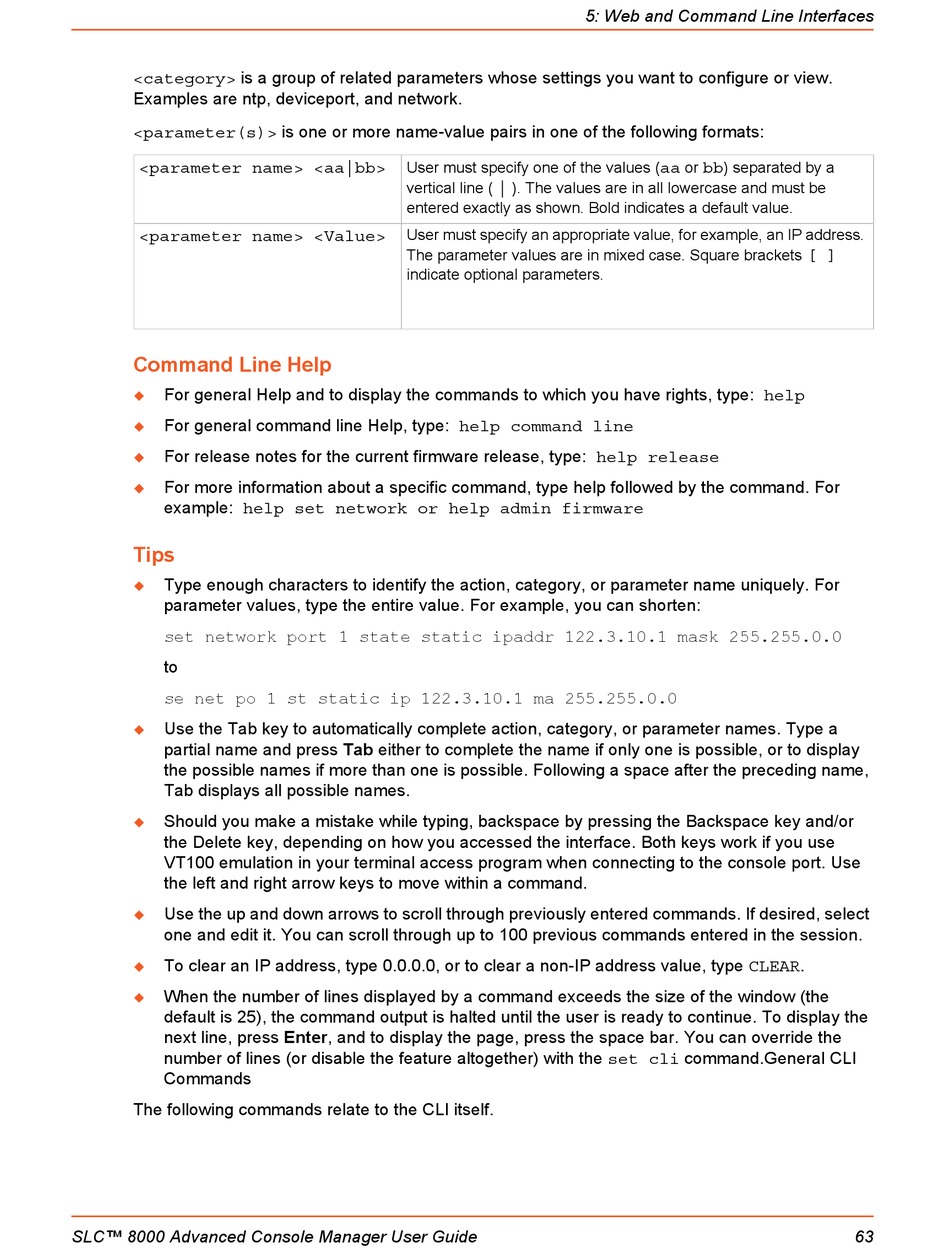

Command Line Help; Tips - Lantronix SLC 8000 User Manual

<category> is a group of related parameters whose settings you want to configure or view.
Examples are ntp, deviceport, and network.
<parameter(s)> is one or more name-value pairs in one of the following formats:
<parameter name> <aa|bb>
<parameter name> <Value>

Command Line Help

For general Help and to display the commands to which you have rights, type: help

For general command line Help, type: help command line

For release notes for the current firmware release, type: help release

For more information about a specific command, type help followed by the command. For

example: help set network or help admin firmware

Tips

Type enough characters to identify the action, category, or parameter name uniquely. For

parameter values, type the entire value. For example, you can shorten:
set network port 1 state static ipaddr 122.3.10.1 mask 255.255.0.0
to
se net po 1 st static ip 122.3.10.1 ma 255.255.0.0
Use the Tab key to automatically complete action, category, or parameter names. Type a

partial name and press Tab either to complete the name if only one is possible, or to display
the possible names if more than one is possible. Following a space after the preceding name,
Tab displays all possible names.
Should you make a mistake while typing, backspace by pressing the Backspace key and/or

the Delete key, depending on how you accessed the interface. Both keys work if you use
VT100 emulation in your terminal access program when connecting to the console port. Use
the left and right arrow keys to move within a command.
Use the up and down arrows to scroll through previously entered commands. If desired, select

one and edit it. You can scroll through up to 100 previous commands entered in the session.
To clear an IP address, type 0.0.0.0, or to clear a non-IP address value, type CLEAR.

When the number of lines displayed by a command exceeds the size of the window (the

default is 25), the command output is halted until the user is ready to continue. To display the
next line, press Enter, and to display the page, press the space bar. You can override the
number of lines (or disable the feature altogether) with the set cli command.General CLI
Commands
The following commands relate to the CLI itself.
SLC™ 8000 Advanced Console Manager User Guide
User must specify one of the values (
vertical line ( ). The values are in all lowercase and must be
|
entered exactly as shown. Bold indicates a default value.
User must specify an appropriate value, for example, an IP address.
The parameter values are in mixed case. Square brackets
indicate optional parameters.
5: Web and Command Line Interfaces
or ) separated by a
aa bb
[ ]
63
