SLC™ 8000 Advanced Console Manager User Guide

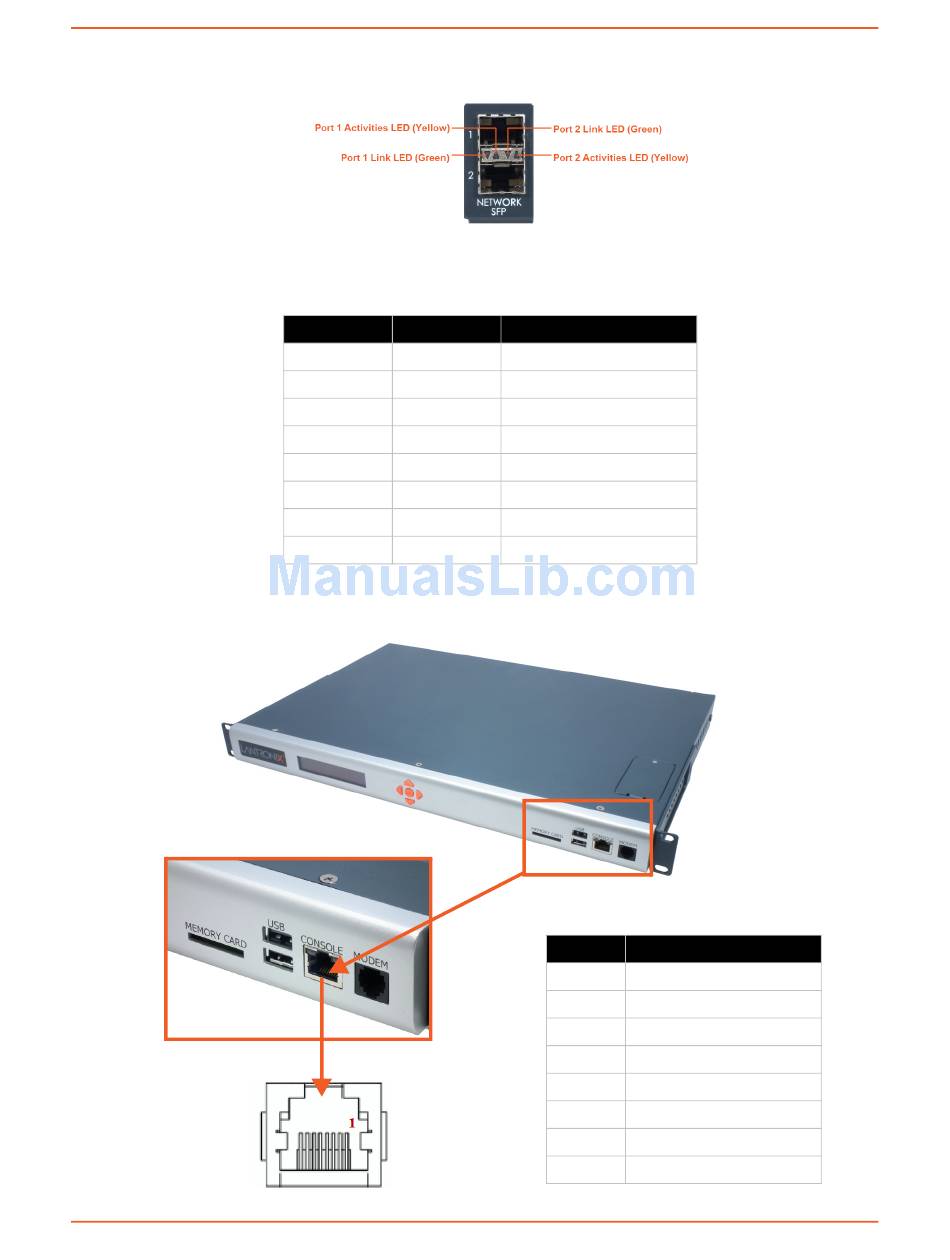

Figure 2-6 SFP Port LEDs

Table 2-7 Device (DCE Reversed & DTE) Port Pinout
DCE Pin DTE Pin
8 1
7 2
6 3
5 4
4 5
3 6
2 7
1 8

Figure 2-8 Console Port (Front Side)

Description
RTS (output)
DTR (output)
TXD (output)
Ground
Ground
RXD (input)
DSR (input)
CTS (input)

Table 2-9 Console (DTE) Port Pinout

DTE Pin Description
1 RTS (output)
2 DTR (output)
3 TXD (output)
4 Ground
5 Ground
6 RXD (input)
7 DSR (input)
8 CTS (input)
2: Introduction
28
