1. To view details about a connection, hold the mouse over the arrow in the Flow column.
2. To disconnect (delete) a connection, select the connection in the Select column and click the
Terminate button.
3. To reestablish the connection, create the connection again in the top part of the page.
4. To view information about Web connections, click the here link in the text above the table. The
Maintenance > Firmware & Configurations

Connection Commands

These commands for configuring connections correspond to the web page entries described
above.
To connect to a device port to monitor and/or interact with it, or to establish an outbound
network connection:
connect direct <endpoint>
Endpoint is one of:
deviceport <Port # or Name>
ssh <IP Address or Name> [port <TCP Port>] [<SSH flags>]
where <SSH flags> is one or more of:
user <Login Name>
version <1|2>
command <Command to Execute>
tcp <IP Address> [port <TCP Port>]
telnet <IP Address or Name> [port <TCP Port>]
udp <IP Address> [port <UDP Port>]
hostlist <Host List>
To configure initial timeout for outgoing connections:
connect global outgoingtimeout <disable|1-9999 seconds>
Note: This is not a TCP timeout.
To monitor a device port:
connect listen deviceport <Device Port # or Name>
To connect a device port to another device port or an outbound network connection (data
flows in both directions):
connect bidirection <Port # or Name> <endpoint>
SLC™ 8000 Advanced Console Manager User Guide

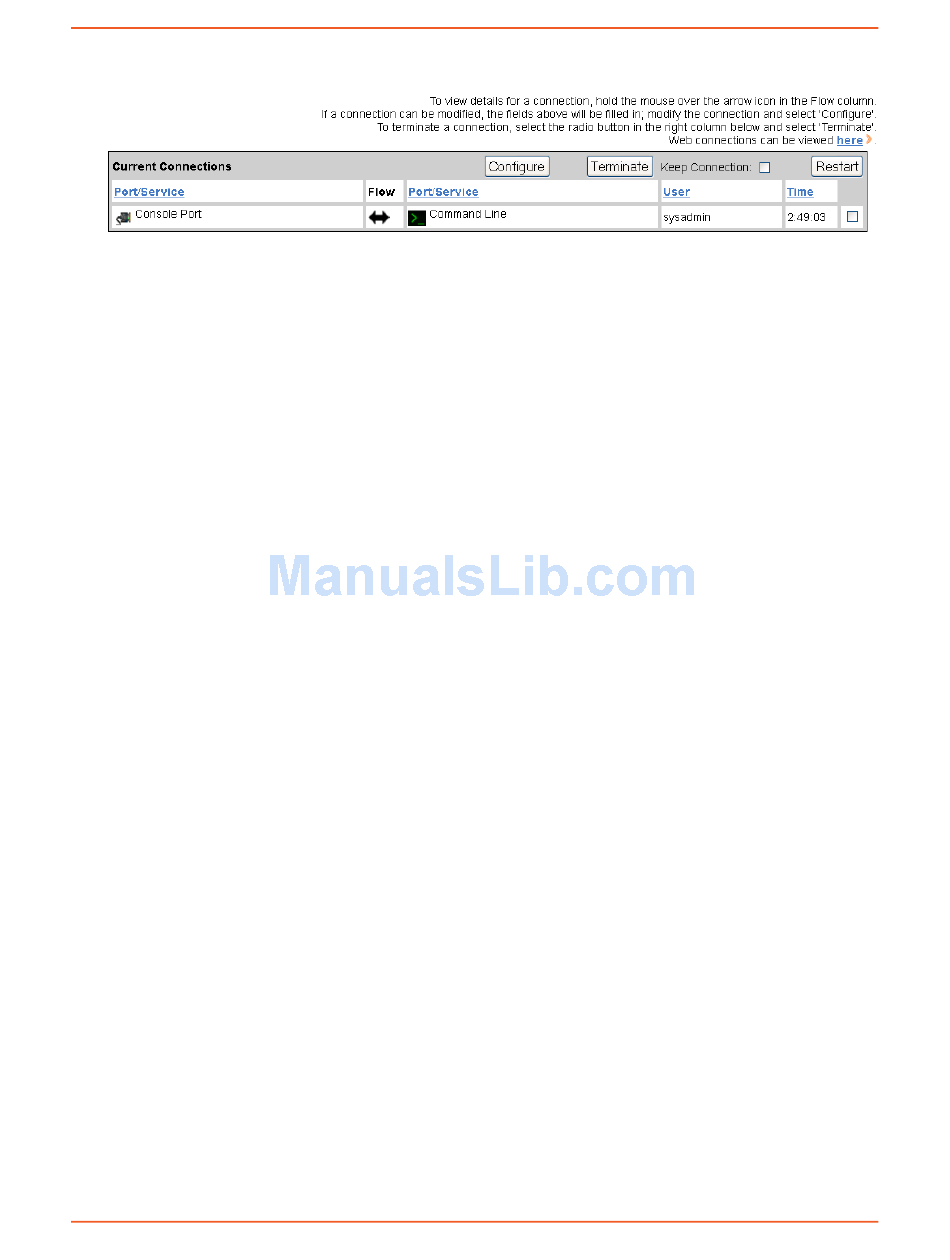

Figure 11-7 Current Connections

page displays.
11: Connections
214
