• Transmission Time
•
Shutdown Time
Port Configuration
Object
•
Port
• Enable
• Action
•
Tx Mode
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.17.2 Loop Protection Status

This page displays the loop protection port status of the switch; screen in
User's Manual of GS-5220 Ultra PoE & PoE+ Series
The interval between each loop protection PDU sent on each port. Valid values
are 1 to 10 seconds.
The period (in seconds) for which a port will be kept disabled in the event of a
loop is detected (and the port action shuts down the port). Valid values are 0 to
604800 seconds (7 days). A value of zero will keep a port disabled (until next
device restart).
Description
The switch port number of the port.
Controls whether loop protection is enabled on this switch port.
Configures the action performed when a loop is detected on a port. Valid values
are Shutdown Port, Shutdown Port and Log or Log Only.
Controls whether the port is actively generating loop protection PDU's, or
whether it is just passively looking for looped PDU's.

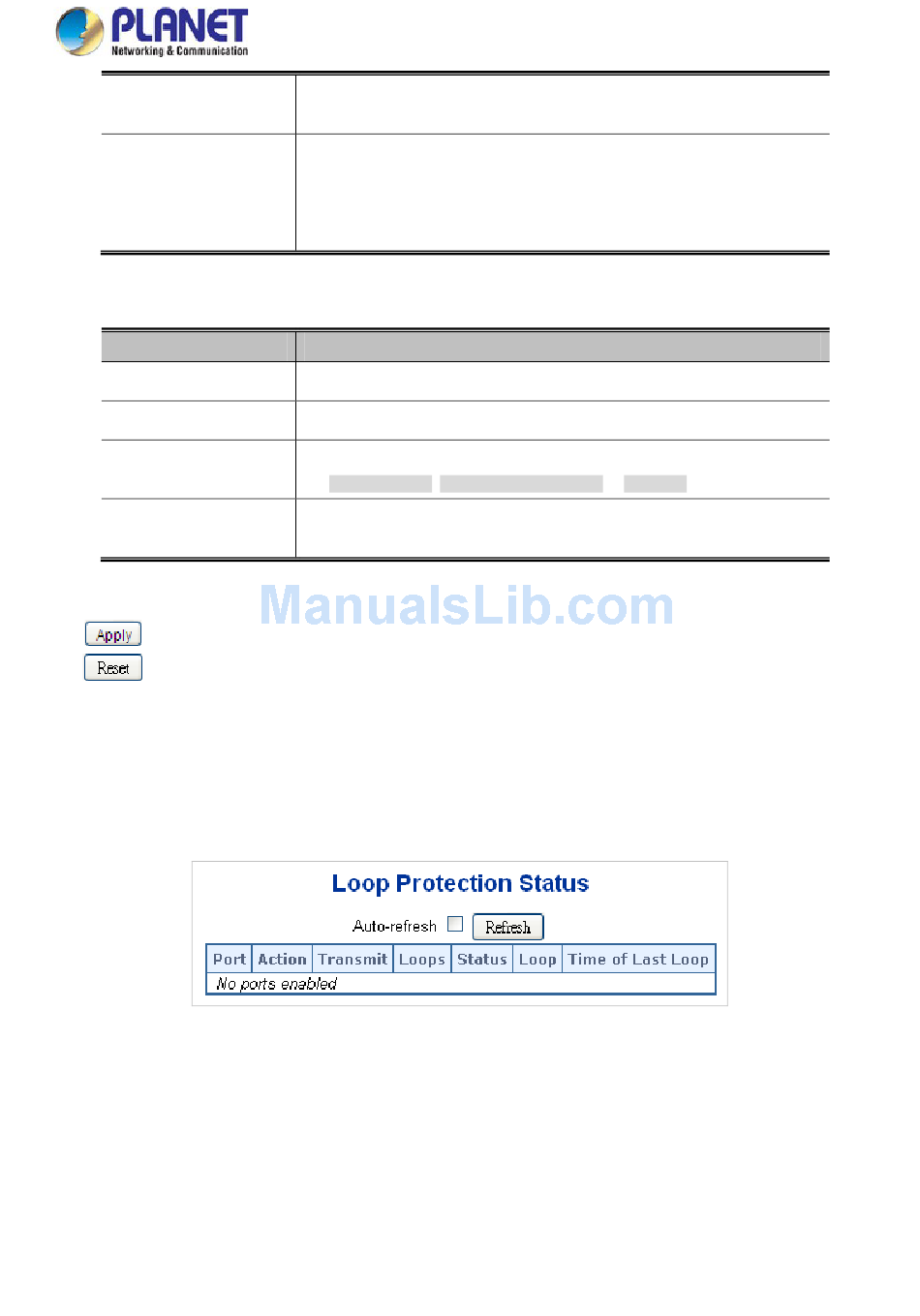

Figure 4-17-2: Loop Protection Status Screenshot
343
Figure 4-17-2 appears.
