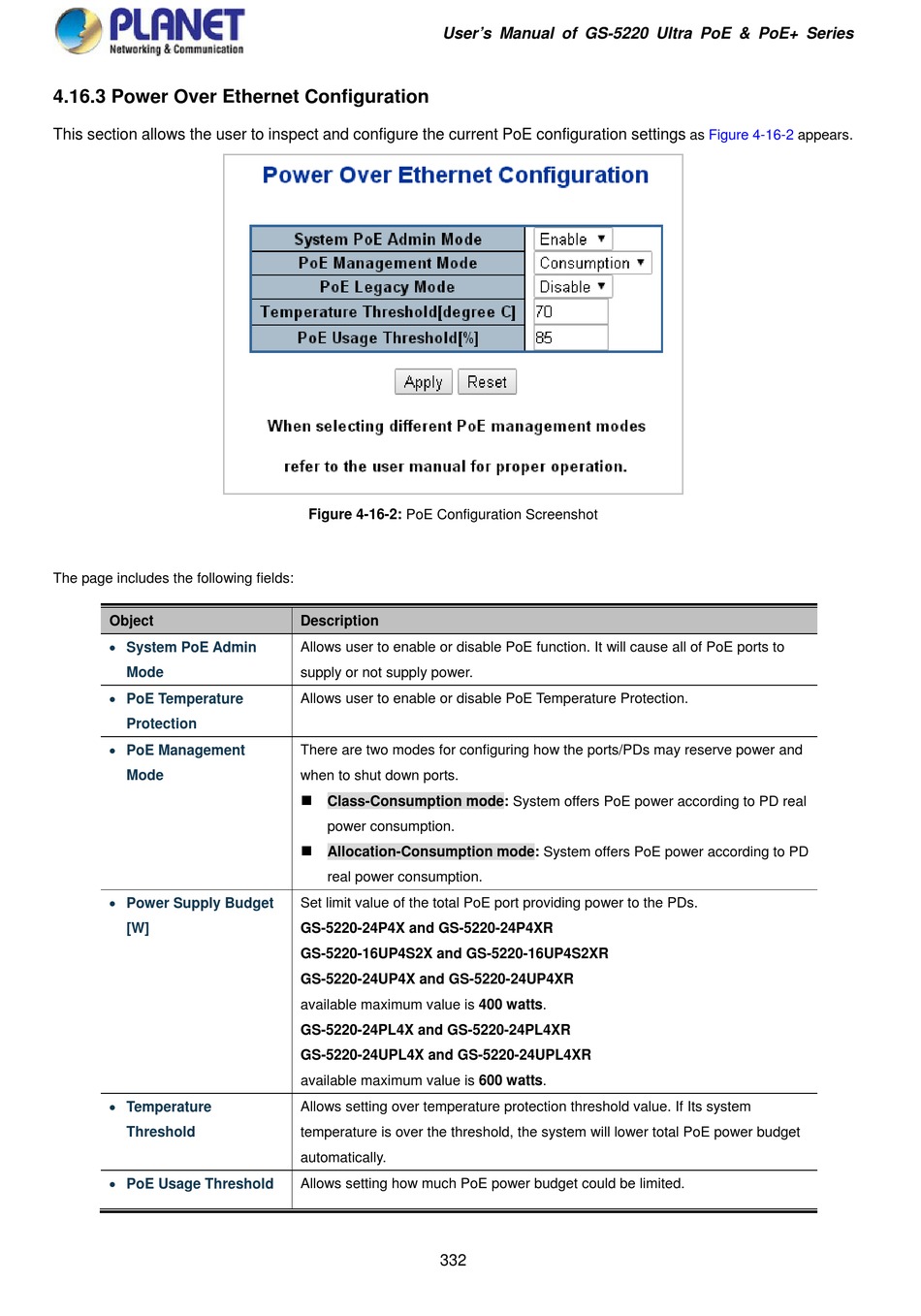

4.16.3 Power Over Ethernet Configuration

This section allows the user to inspect and configure the current PoE configuration settings
The page includes the following fields:
Object
• System PoE Admin
Mode
• PoE Temperature
Protection
• PoE Management
Mode
• Power Supply Budget
[W]
• Temperature
Threshold
• PoE Usage Threshold
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Figure 4-16-2: PoE Configuration Screenshot
Description
Allows user to enable or disable PoE function. It will cause all of PoE ports to
supply or not supply power.
Allows user to enable or disable PoE Temperature Protection.
There are two modes for configuring how the ports/PDs may reserve power and
when to shut down ports.

Class-Consumption mode: System offers PoE power according to PD real
power consumption.

Allocation-Consumption mode: System offers PoE power according to PD
real power consumption.
Set limit value of the total PoE port providing power to the PDs.
GS-5220-24P4X and GS-5220-24P4XR
GS-5220-16UP4S2X and GS-5220-16UP4S2XR
GS-5220-24UP4X and GS-5220-24UP4XR
available maximum value is 400 watts.
GS-5220-24PL4X and GS-5220-24PL4XR
GS-5220-24UPL4X and GS-5220-24UPL4XR
available maximum value is 600 watts.
Allows setting over temperature protection threshold value. If Its system
temperature is over the threshold, the system will lower total PoE power budget
automatically.
Allows setting how much PoE power budget could be limited.
332
as Figure 4-16-2 appears.
