Action Parameters
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values
: Return to the previous page without saving the configuration change

4.9.12 QCL Status

This page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific
QCE is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The
QoS Control List Status screen in
The page includes the following fields:
Object
• User
•
QCE#
• Port
•
Frame Type
Dport Destination TCP/UDP port:(0-65535) or 'Any', specific or port range
applicable for IP protocol UDP/TCP
Class QoS class: (0-7) or 'Default'.
DPL Valid Drop Precedence Level can be (0-3) or 'Default'.
DSCP Valid DSCP value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) or
'Default'.
'Default' means that the default classified value is not modified by this QCE.
Figure 4-9-14 appears.

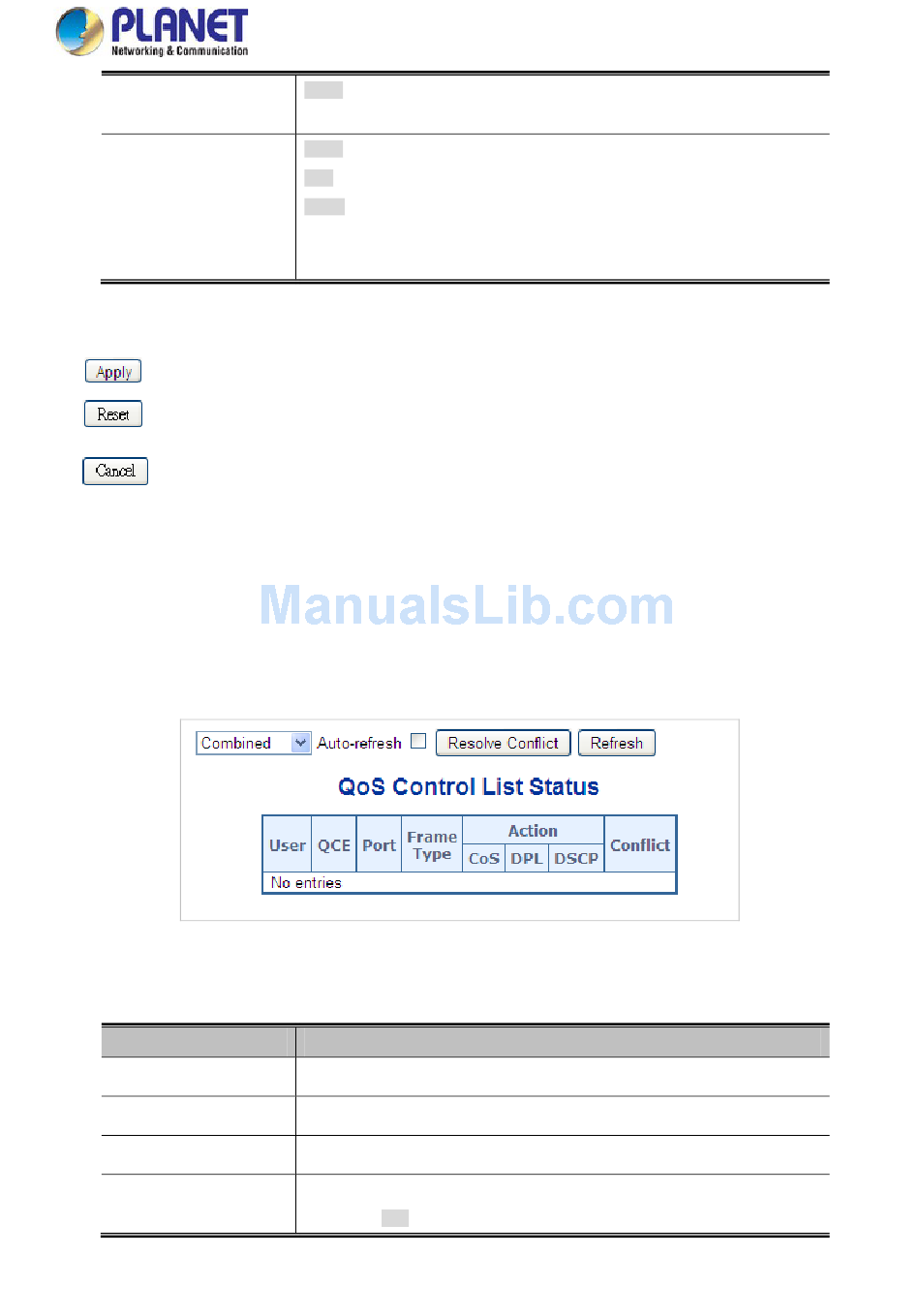

Figure 4-9-14: QoS Control List Status Page Screenshot
Description
Indicates the QCL user.
Indicates the index of QCE.
Indicates the list of ports configured with the QCE.
Indicates the type of frame to look for incoming frames. Possible frame types are:
■
Any: The QCE will match all frame types.
User's Manual of GS-5220 Ultra PoE & PoE+ Series
213
