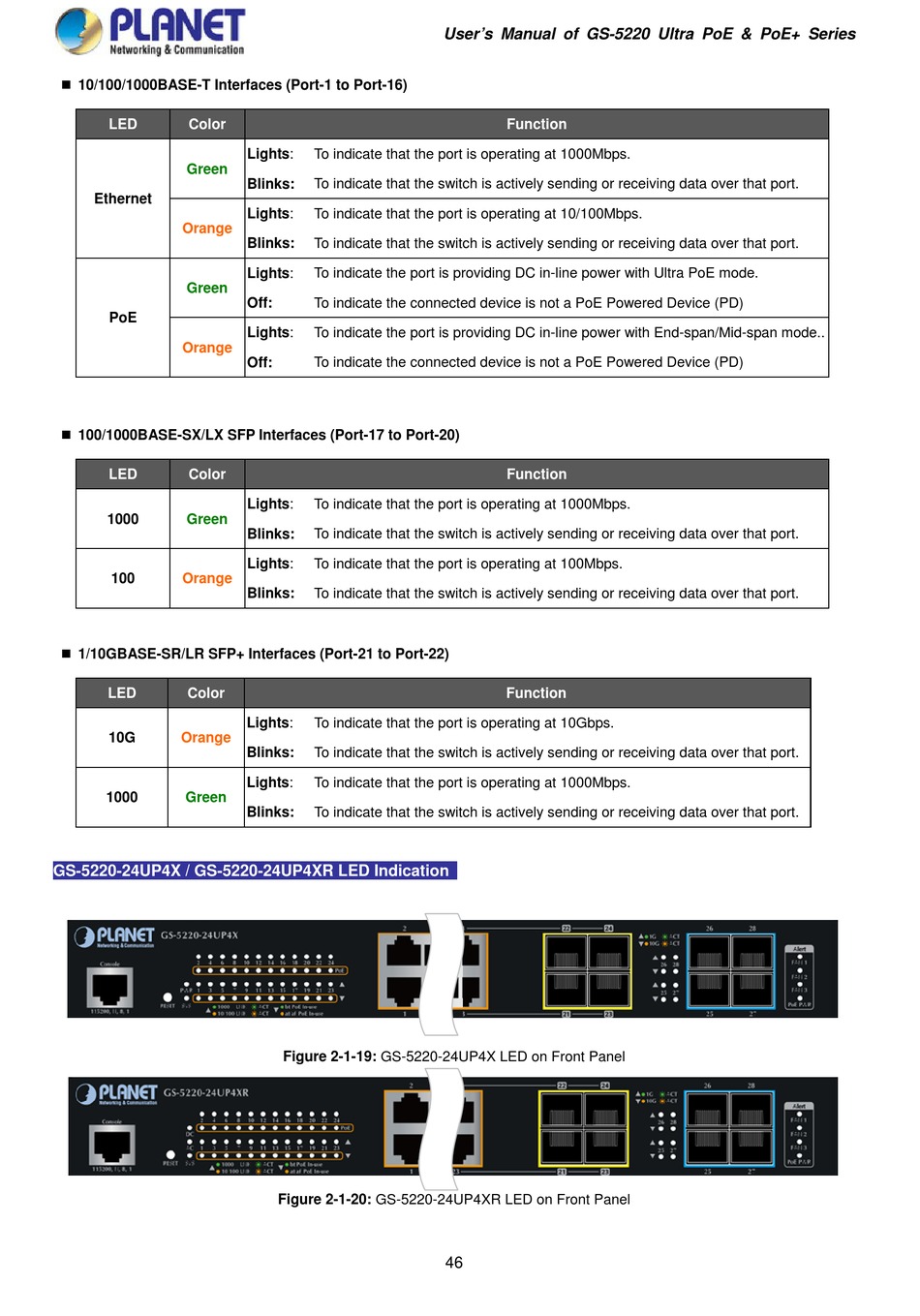

10/100/1000BASE-T Interfaces (Port-1 to Port-16)
LED
Color
Green
Ethernet
Orange
Green
PoE
Orange
100/1000BASE-SX/LX SFP Interfaces (Port-17 to Port-20)
LED
Color
1000
Green
100
Orange
1/10GBASE-SR/LR SFP+ Interfaces (Port-21 to Port-22)
LED
Color
10G
Orange
1000
Green
GS-5220-24UP4X / GS-5220-24UP4XR LED Indication
To indicate that the port is operating at 1000Mbps.
Lights:
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 10/100Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate the port is providing DC in-line power with Ultra PoE mode.
Off:
To indicate the connected device is not a PoE Powered Device (PD)
To indicate the port is providing DC in-line power with End-span/Mid-span mode..
Lights:
Off:
To indicate the connected device is not a PoE Powered Device (PD)
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 100Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 10Gbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Figure 2-1-19: GS-5220-24UP4X LED on Front Panel
Figure 2-1-20: GS-5220-24UP4XR LED on Front Panel
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Function
Function
Function
46
