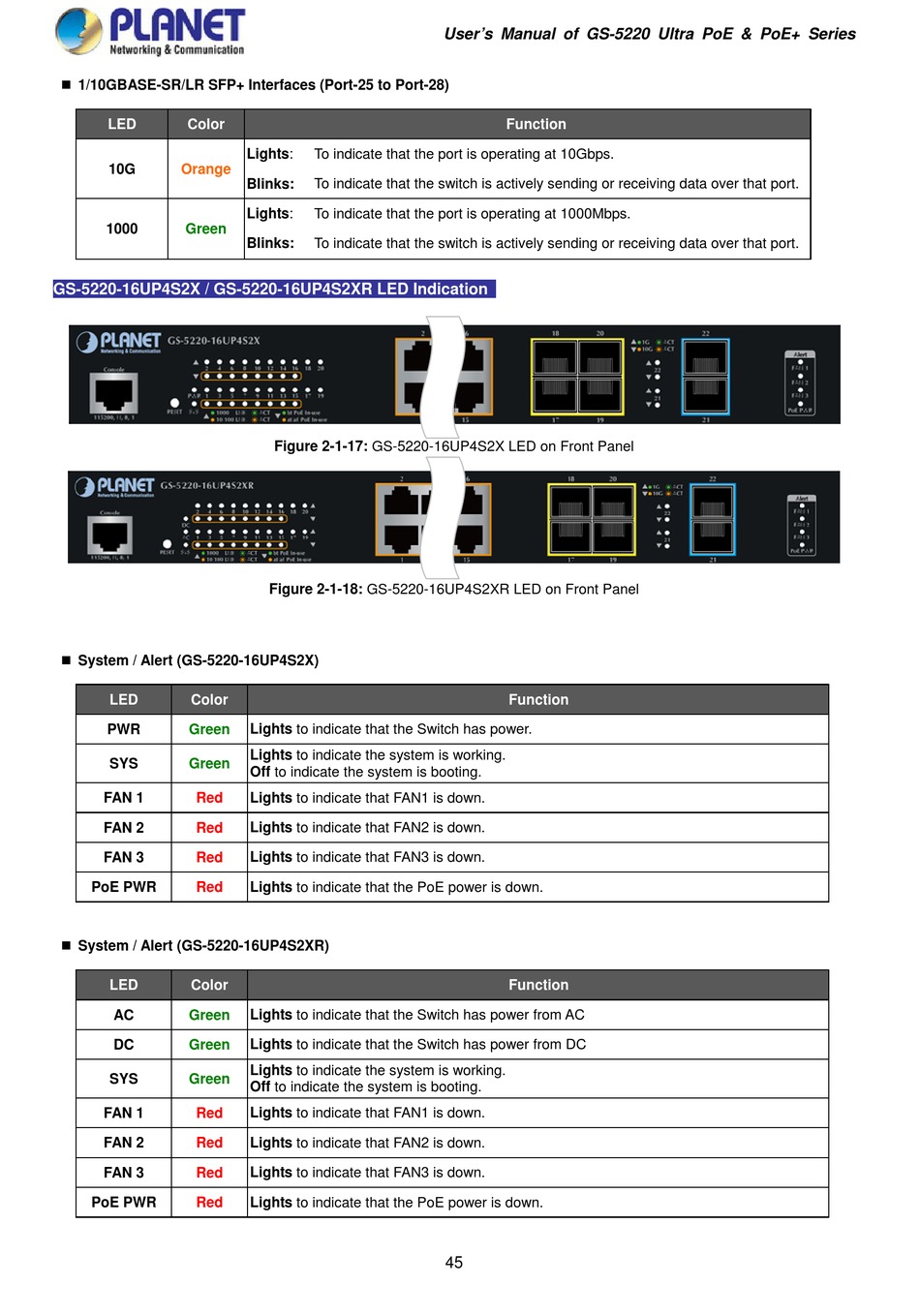

 1/10GBASE-SR/LR SFP+ Interfaces (Port-25 to Port-28)
LED Color
10G Orange
1000 Green
GS-5220-16UP4S2X / GS-5220-16UP4S2XR LED Indication
 System / Alert (GS-5220-16UP4S2X)
LED Color
PWR Green
SYS Green
FAN 1 Red
FAN 2 Red
FAN 3 Red
PoE PWR Red
 System / Alert (GS-5220-16UP4S2XR)
LED Color
AC Green
DC Green
SYS Green
FAN 1 Red
FAN 2 Red
FAN 3 Red
PoE PWR Red
To indicate that the port is operating at 10Gbps.
Lights:
Blinks: To indicate that the switch is actively sending or receiving data over that port.
Lights: To indicate that the port is operating at 1000Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
Figure 2-1-17: GS-5220-16UP4S2X LED on Front Panel
Figure 2-1-18: GS-5220-16UP4S2XR LED on Front Panel
Lights to indicate that the Switch has power.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
Lights to indicate that the Switch has power from AC
Lights to indicate that the Switch has power from DC
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
