4.
The shared secret key should be as same as the key configured on the Managed Switch.
5.
Configure ports attribute of 802.1X, the same as "802.1X Port Configuration".
6.
Create user data. The establishment of the user data needs to be created on the Radius Server PC. For example, the
Radius Server founded on Win2003 Server, and then:
User's Manual of GS-5220 Ultra PoE & PoE+ Series

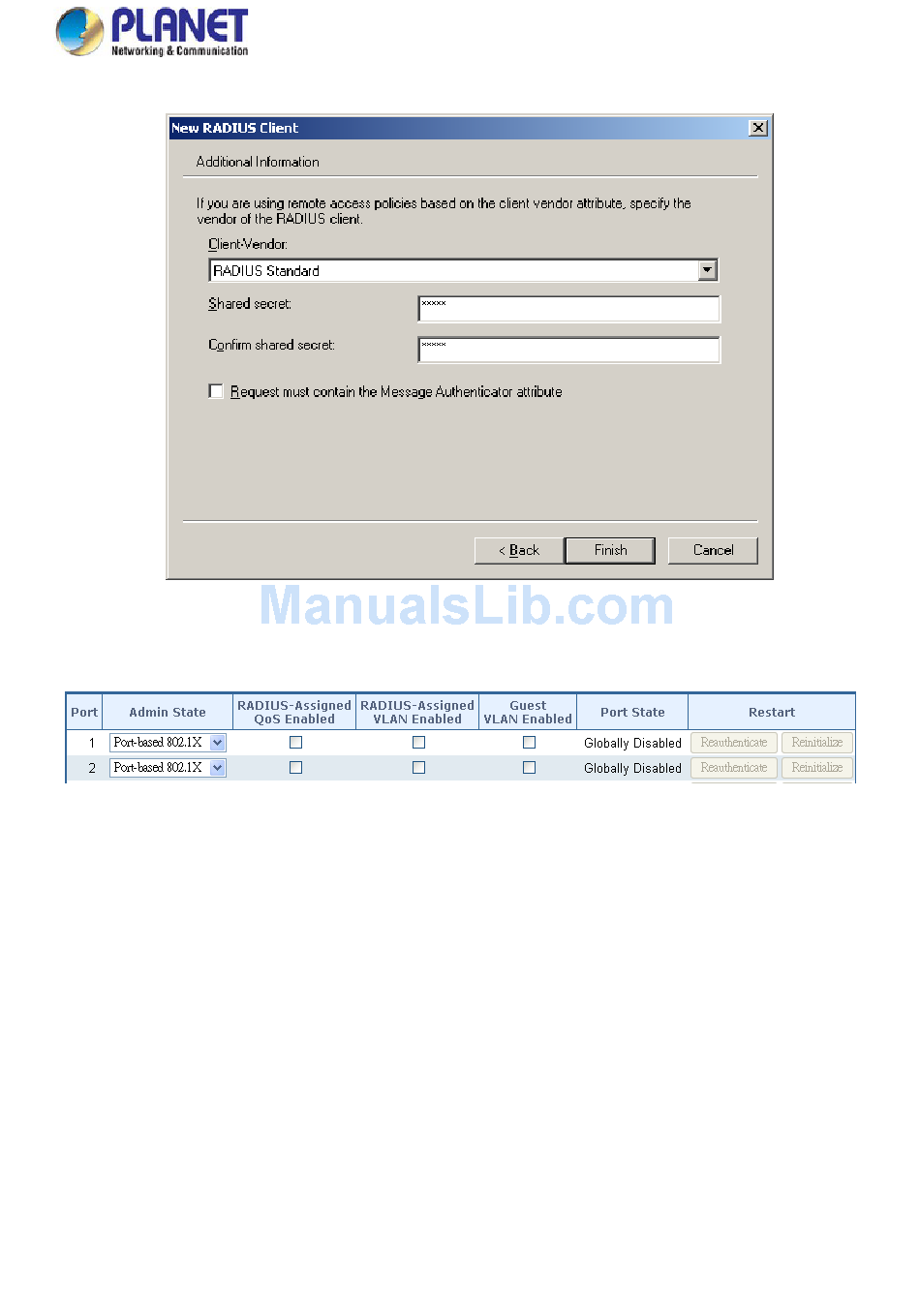

Figure 4-11-14: Windows Server RADIUS Server Setting
Figure 4-11-15: 802.1x Port Configuration
276
