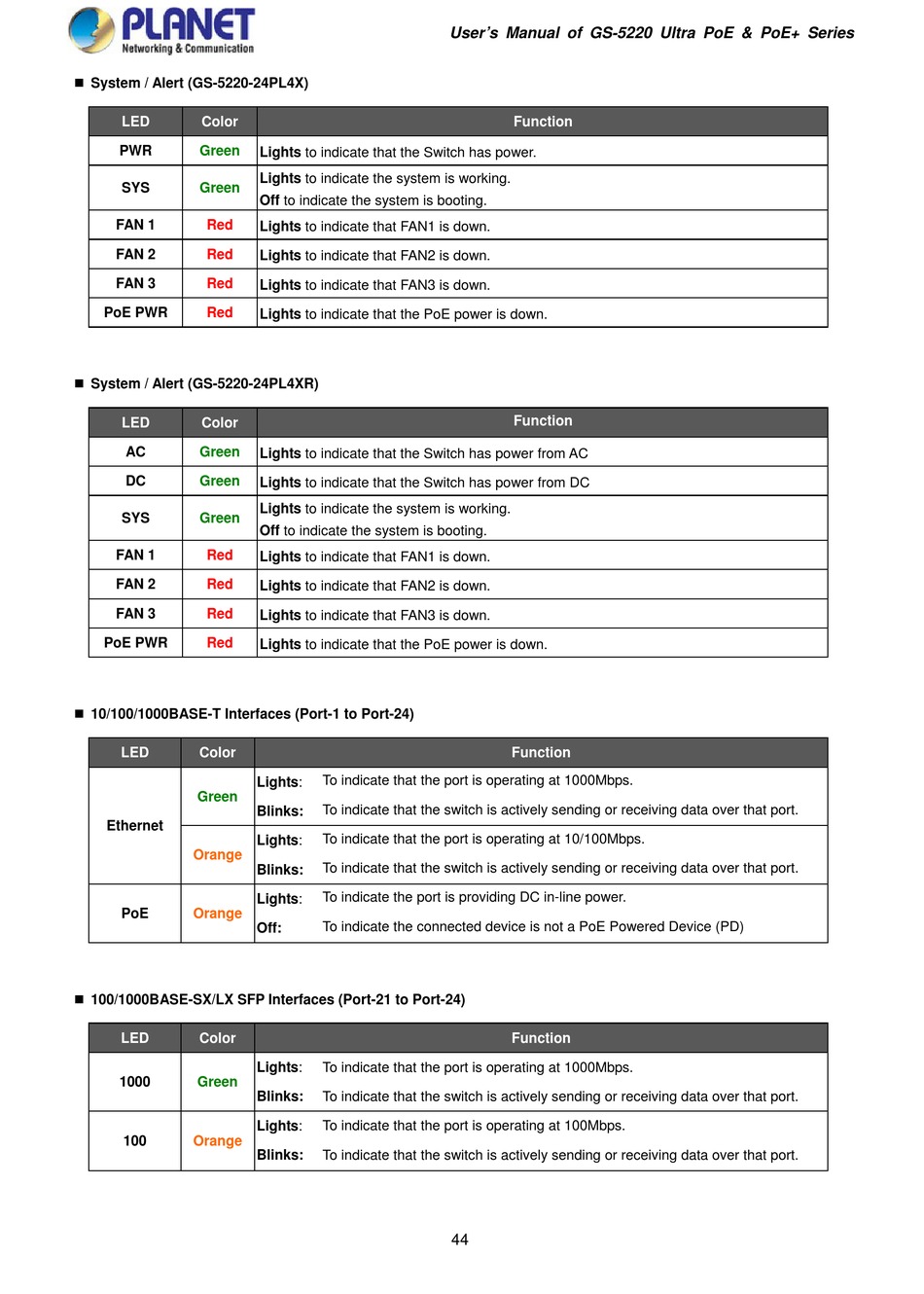

 System / Alert (GS-5220-24PL4X)
LED Color
PWR Green
SYS Green
FAN 1 Red
FAN 2 Red
FAN 3 Red
PoE PWR Red
 System / Alert (GS-5220-24PL4XR)
LED Color
AC Green
DC Green
SYS Green
FAN 1 Red
FAN 2 Red
FAN 3 Red
PoE PWR Red
 10/100/1000BASE-T Interfaces (Port-1 to Port-24)
LED Color
Green
Ethernet
Orange
PoE Orange
 100/1000BASE-SX/LX SFP Interfaces (Port-21 to Port-24)
LED Color
1000 Green
100 Orange
Lights to indicate that the Switch has power.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
Lights to indicate that the Switch has power from AC
Lights to indicate that the Switch has power from DC
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
To indicate that the port is operating at 1000Mbps.
Lights:
To indicate that the switch is actively sending or receiving data over that port.
Blinks:
To indicate that the port is operating at 10/100Mbps.
Lights:
To indicate that the switch is actively sending or receiving data over that port.
Blinks:
To indicate the port is providing DC in-line power.
Lights:
To indicate the connected device is not a PoE Powered Device (PD)
Off:
To indicate that the port is operating at 1000Mbps.
Lights:
Blinks: To indicate that the switch is actively sending or receiving data over that port.
Lights: To indicate that the port is operating at 100Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Function
Function
Function
Function
44
