4.4.3 Detailed Port Statistics

This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details
to display. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the
error counters for receive and transmit. The Detailed Port Statistics screen in
The page includes the following fields:
Receive Total and Transmit Total
Object
•
Rx and Tx Packets
•
Rx and Tx Octets
•
Rx and Tx Unicast
•
Rx and Tx Multicast
•
Rx and Tx Broadcast
• Rx and Tx Pause

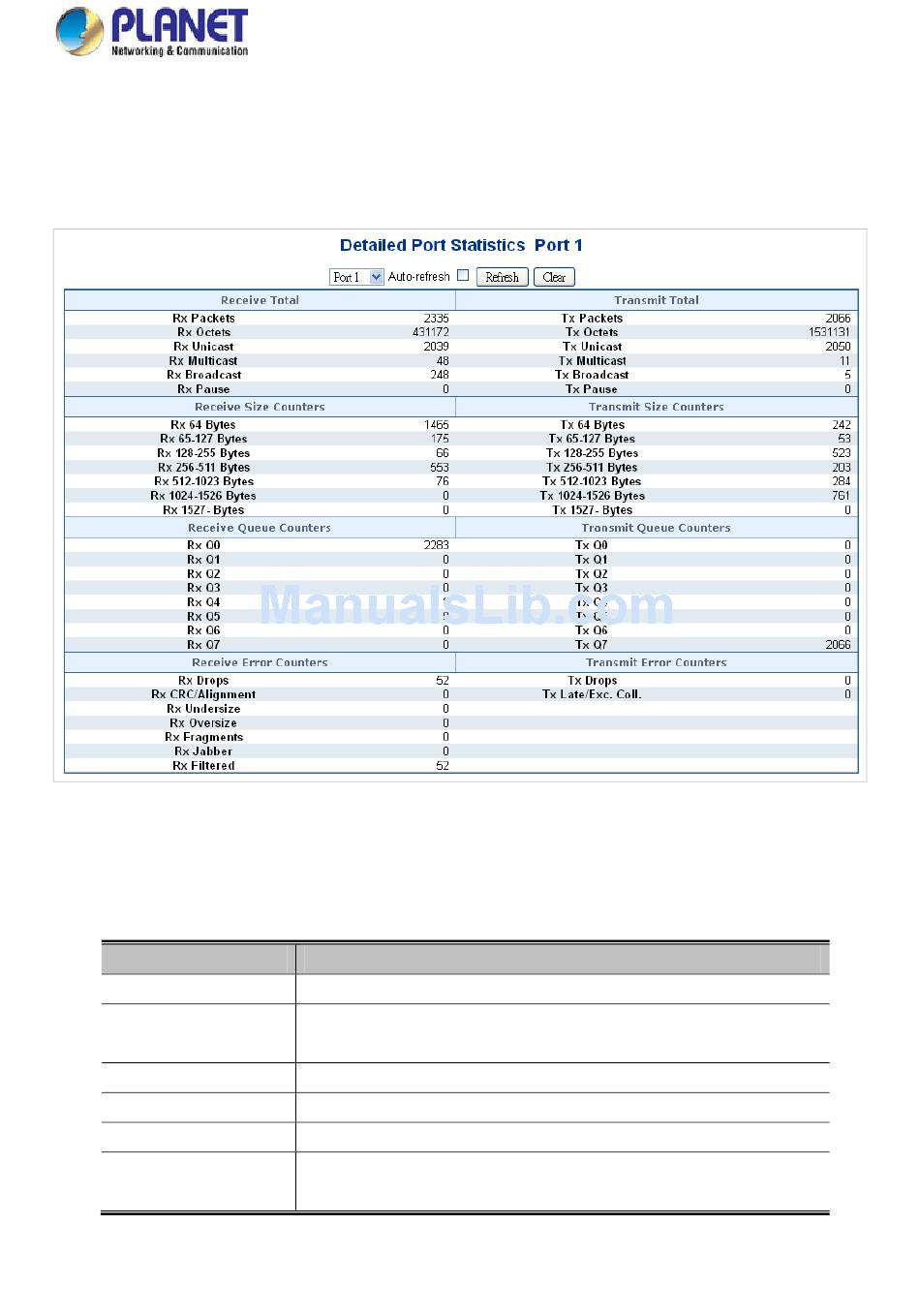

Figure 4-4-3: Detailed Port Statistics Port 1 Page Screenshot
Description
The number of received and transmitted (good and bad) packets
The number of received and transmitted (good and bad) bytes, including FCS,
but excluding framing bits.
The number of received and transmitted (good and bad) unicast packets.
The number of received and transmitted (good and bad) multicast packets.
The number of received and transmitted (good and bad) broadcast packets.
A count of the MAC Control frames received or transmitted on this port that has
an opcode indicating a PAUSE operation.
