Buttons
: Select VLAN Users from this drop down list.
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.
: Updates the table, starting with the entry after the last entry currently displayed.

4.6.5 VLAN Port Status

This page provides VLAN Port Status. The VLAN Port Status screen in
The page includes the following fields:
Object
• Port
• Port Type
a Combo Box). When ALL VLAN Users are selected, it shall show this
information for all the VLAN Users, and this is by default. VLAN membership
allows the frames classified to the VLAN ID to be forwarded on the respective
VLAN member ports.

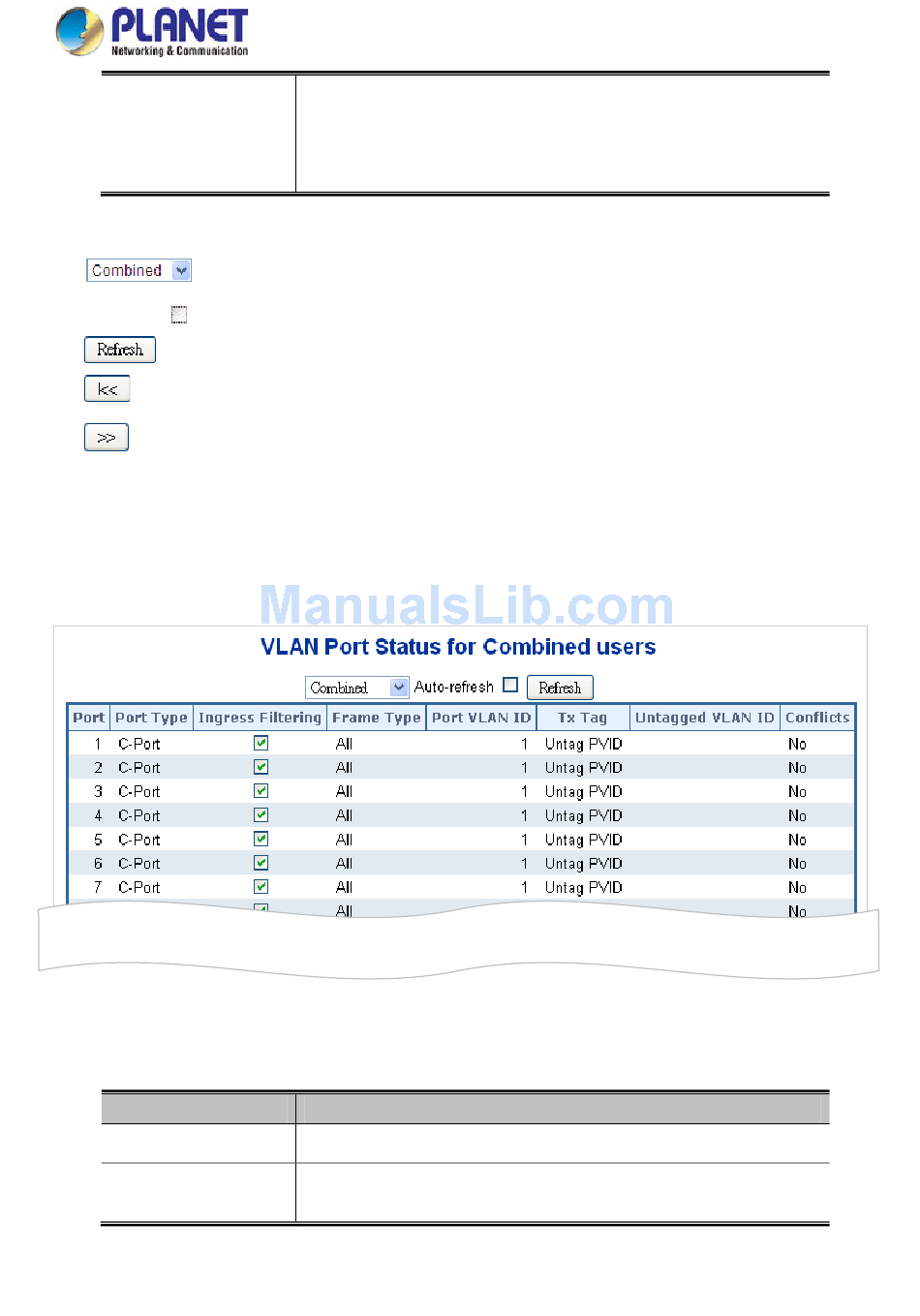

Figure 4-6-5: VLAN Port Status for Combined users Page Screenshot
Description
The logical port for the settings contained in the same row.
Show the VLAN Awareness for the port.
If VLAN awareness is enabled, the tag is removed from tagged frames received
