4.7.8 Port Status

This page displays the STP CIST port status for port physical ports in the currently selected switch.
The STP Port Status screen in
The page includes the following fields:
Object
•
Port
•
CIST Role
•
CIST State
• Uptime
Buttons
: Click to refresh the page immediately.
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds
Figure 4-7-11 appears.

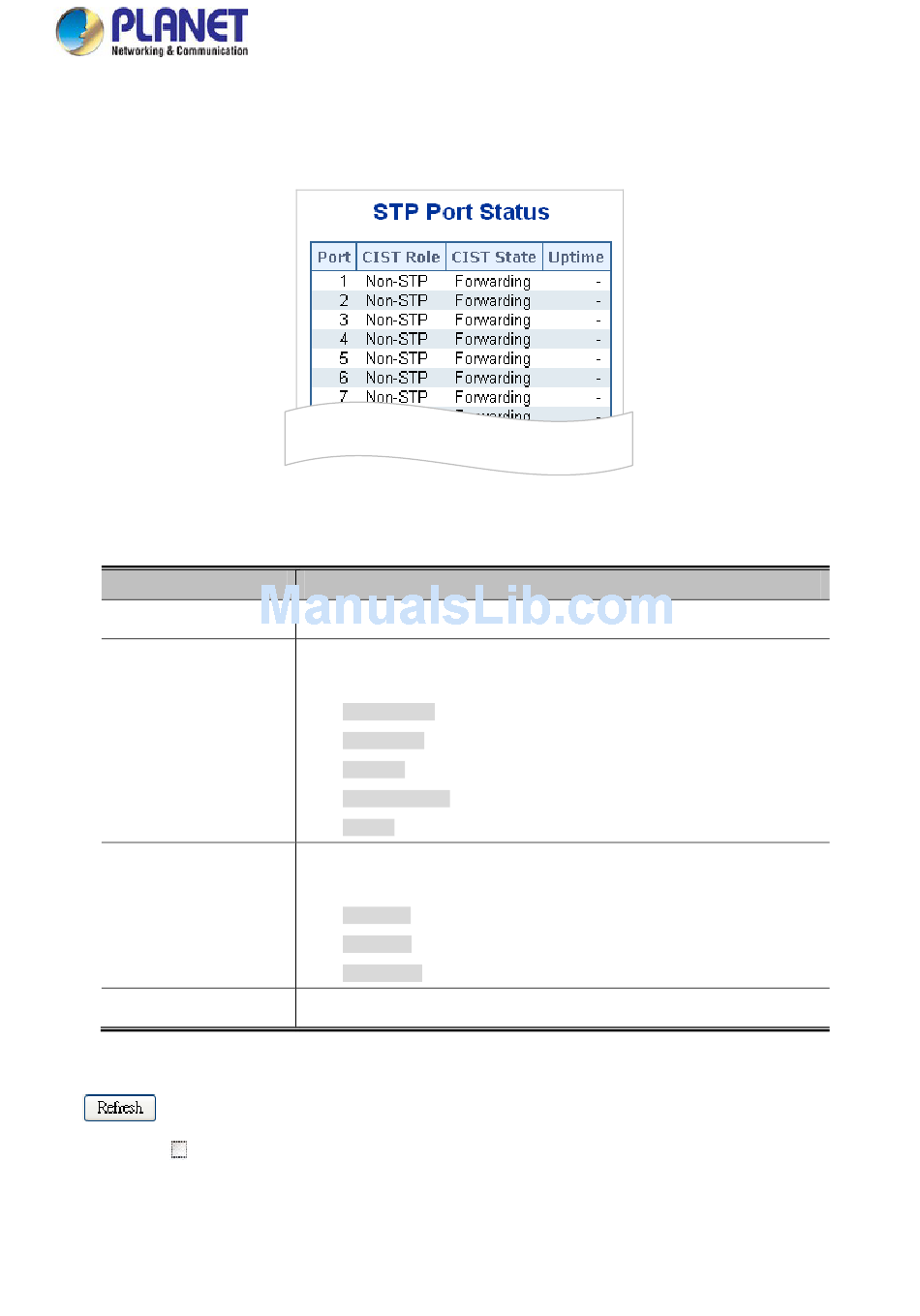

Figure 4-7-11: STP Port Status Page Screenshot
Description
The switch port number of the logical STP port.
The current STP port role of the ICST port. The port role can be one of the
following values:
■
AlternatePort
■
BackupPort
■
RootPort
■
DesignatedPort
■
Disable
The current STP port state of the CIST port . The port state can be one of the
following values:
■
Disabled
■
Learning
■
Forwarding
The time since the bridge port was last initialized.
