The status page is divided into two sections - one with a legend of user modules and one with the actual port status. The Port
Security Status screen in Figure 4-12-6
The page includes the following fields:
User Module Legend
The legend shows all user modules that may request Port Security services.
Object
• User Module Name
• Abbr
Port Status
The table has one row for each port on the selected switch in the switch and a number of columns, which are:
Object
• Port
appears.

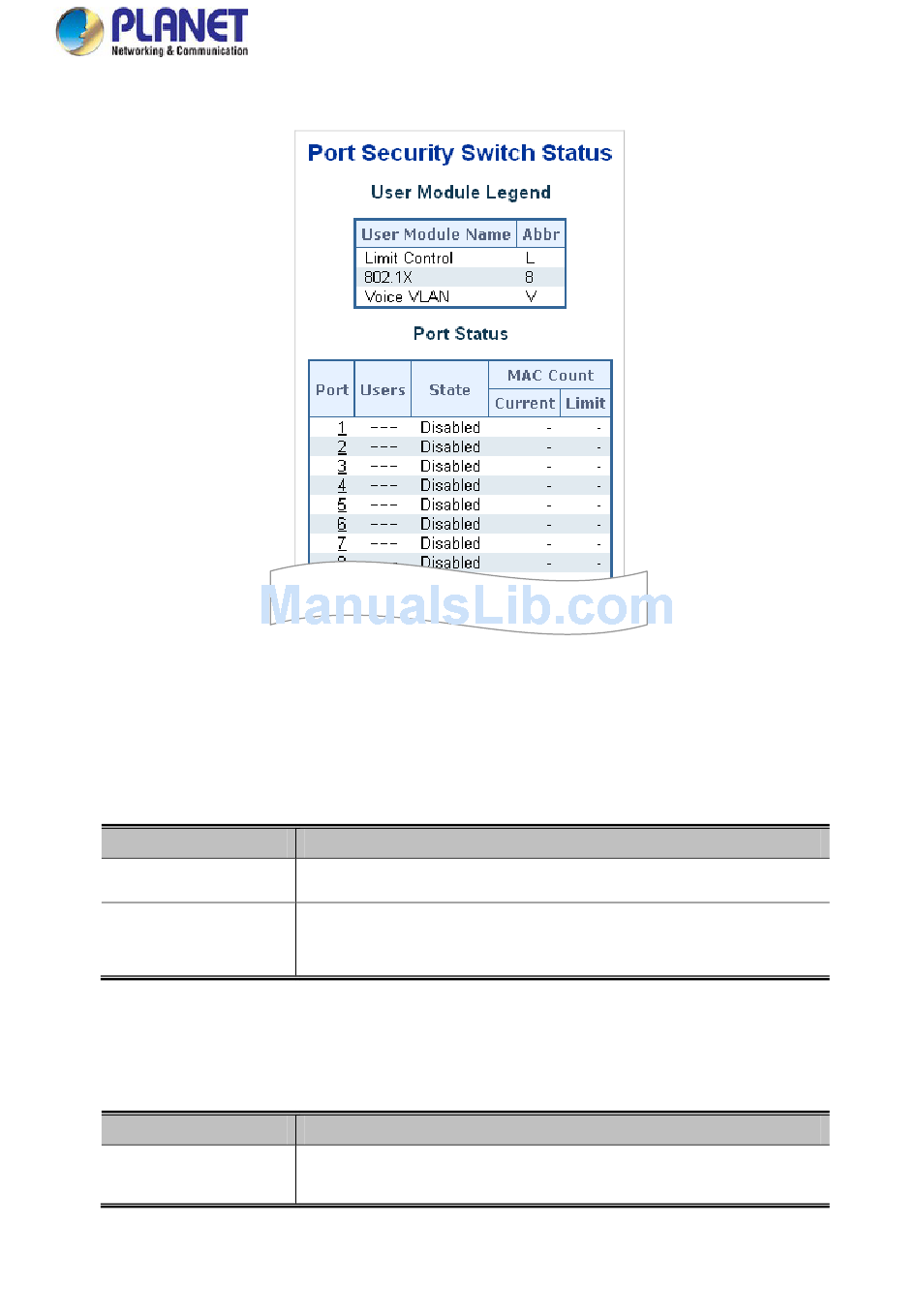

Figure 4-12-6: Port Security Status Screen Page Screenshot
Description
The full name of a module that may request Port Security services.
A one-letter abbreviation of the user module. This is used in the Users column in
the port status table.
Description
The port number for which the status applies. Click the port number to see the
status for this particular port.
