4.4 Port Management

Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:

Port Configuration

Port Statistics Overview

Port Statistics Detail

SFP Module Information

Port Mirror
4.4.1 Port Configuration
This page displays current port configurations. Ports can also be configured here. The Port Configuration screen in
appears.
The page includes the following fields:
Object
•
Port
• Port Description
•
Link
•
Current Link Speed
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Configures port connection settings
Lists Ethernet and RMON port statistics
Lists Ethernet and RMON port statistics
Display SFP information
Sets the source and target ports for mirroring

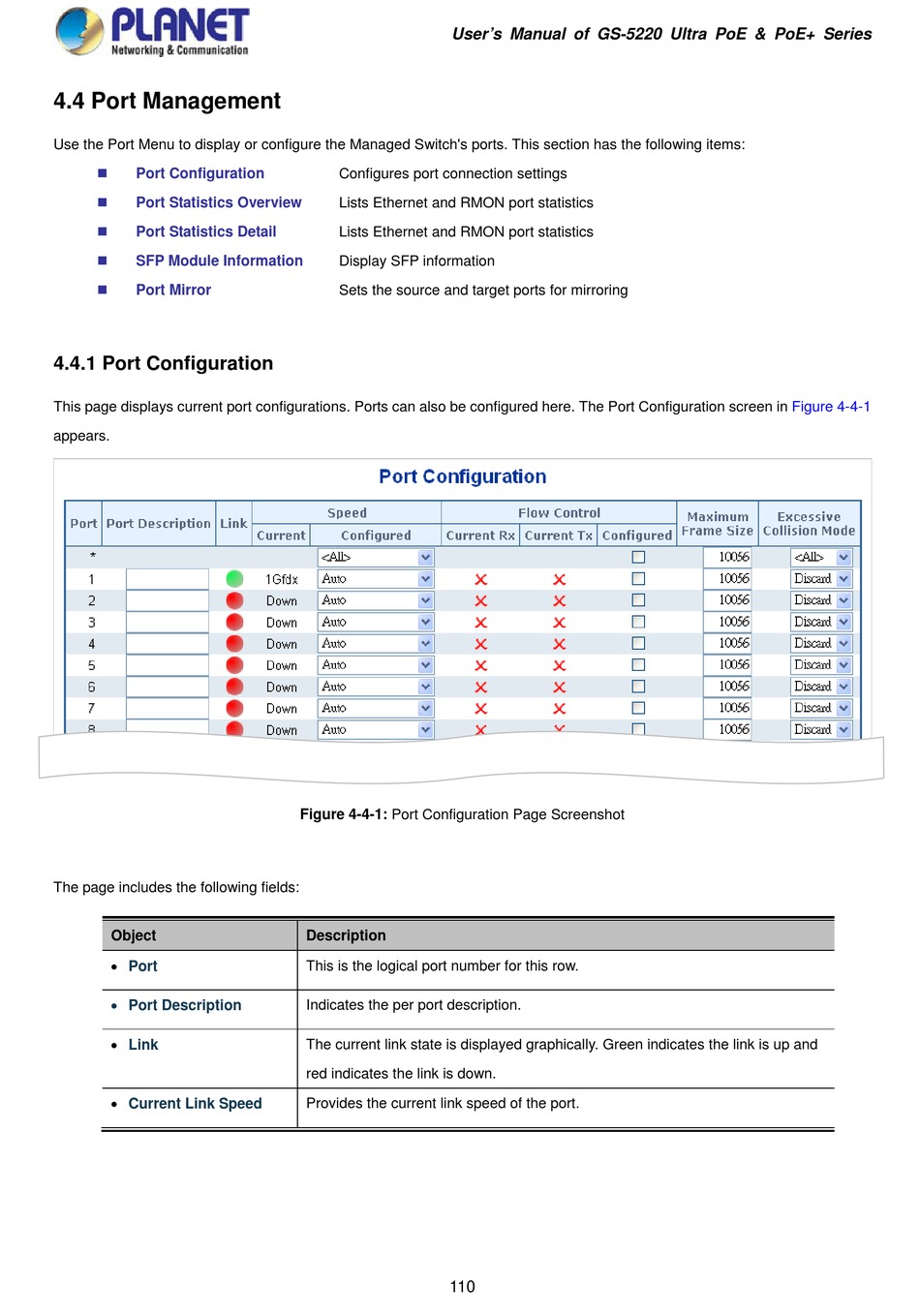

Figure 4-4-1: Port Configuration Page Screenshot
Description
This is the logical port number for this row.
Indicates the per port description.
The current link state is displayed graphically. Green indicates the link is up and
red indicates the link is down.
Provides the current link speed of the port.
110
Figure 4-4-1
