The page includes the following fields:
Object
• Snooping Mode
• Port Mode
Configuration
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

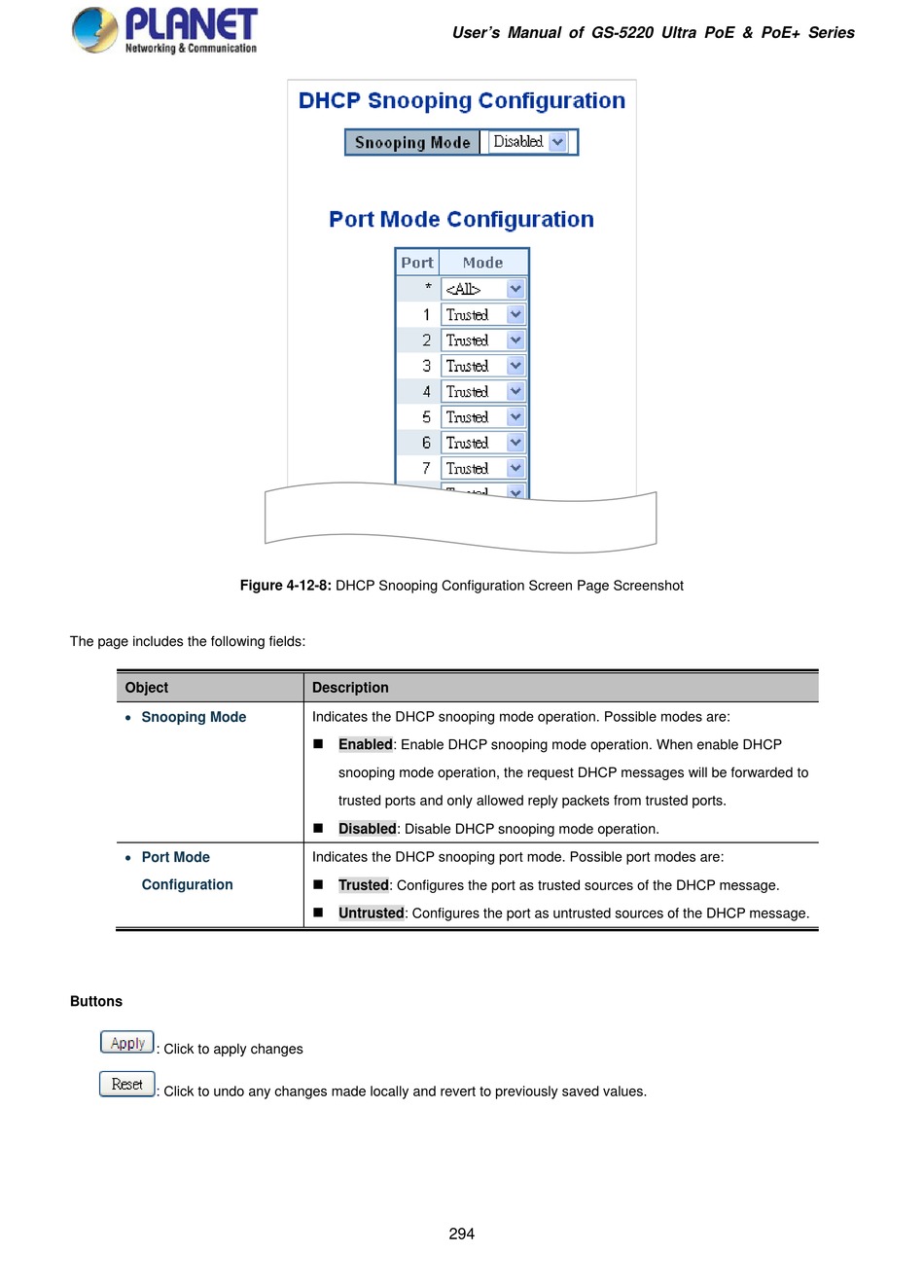

Figure 4-12-8: DHCP Snooping Configuration Screen Page Screenshot
Description
Indicates the DHCP snooping mode operation. Possible modes are:

Enabled: Enable DHCP snooping mode operation. When enable DHCP
snooping mode operation, the request DHCP messages will be forwarded to
trusted ports and only allowed reply packets from trusted ports.

Disabled: Disable DHCP snooping mode operation.
Indicates the DHCP snooping port mode. Possible port modes are:

Trusted: Configures the port as trusted sources of the DHCP message.

Untrusted: Configures the port as untrusted sources of the DHCP message.
