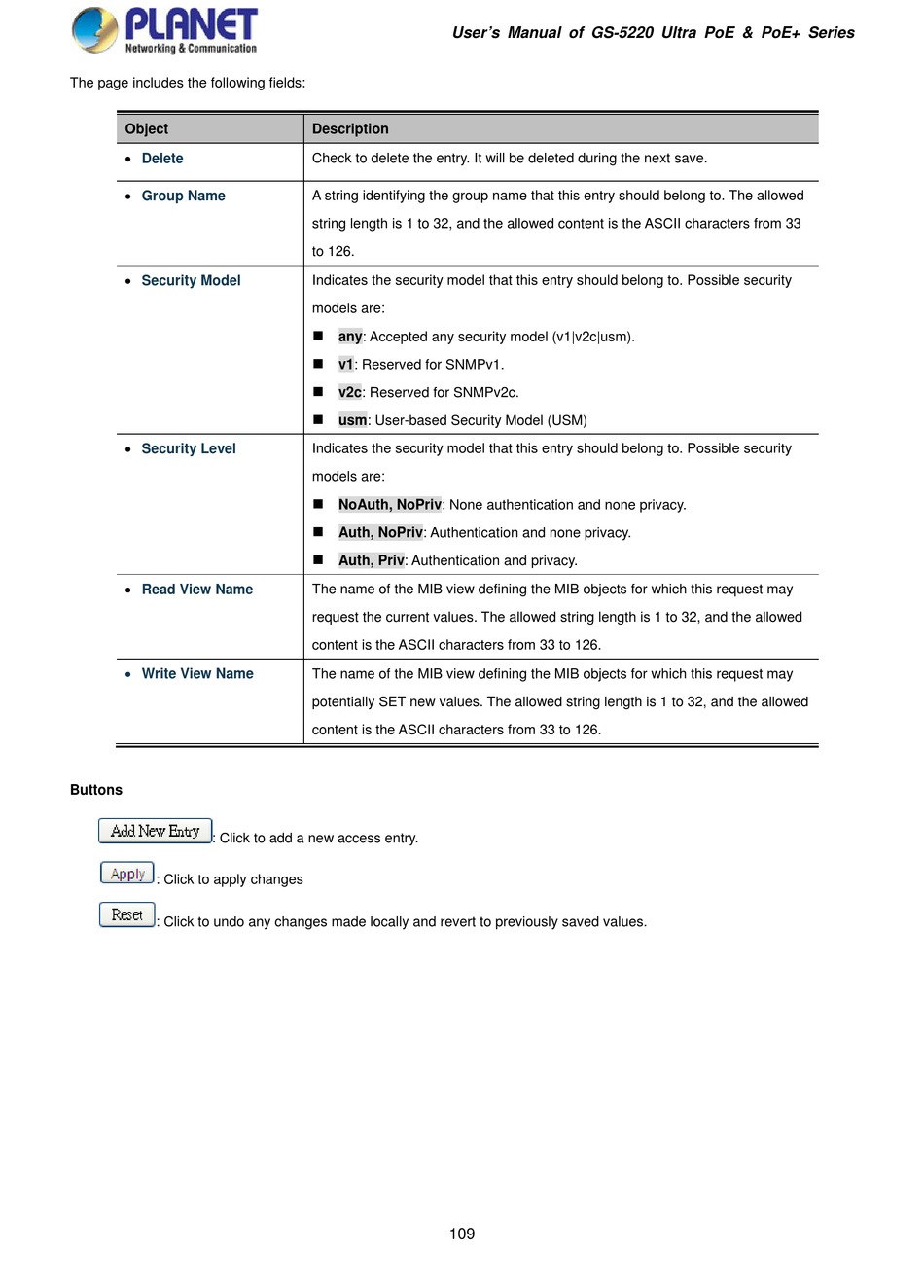

The page includes the following fields:
Object
•
Delete
•
Group Name
•
Security Model
•
Security Level
•
Read View Name
• Write View Name
Buttons
: Click to add a new access entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Description
Check to delete the entry. It will be deleted during the next save.
A string identifying the group name that this entry should belong to. The allowed
string length is 1 to 32, and the allowed content is the ASCII characters from 33
to 126.
Indicates the security model that this entry should belong to. Possible security
models are:

any: Accepted any security model (v1|v2c|usm).

v1: Reserved for SNMPv1.

v2c: Reserved for SNMPv2c.

usm: User-based Security Model (USM)
Indicates the security model that this entry should belong to. Possible security
models are:

NoAuth, NoPriv: None authentication and none privacy.

Auth, NoPriv: Authentication and none privacy.

Auth, Priv: Authentication and privacy.
The name of the MIB view defining the MIB objects for which this request may
request the current values. The allowed string length is 1 to 32, and the allowed
content is the ASCII characters from 33 to 126.
The name of the MIB view defining the MIB objects for which this request may
potentially SET new values. The allowed string length is 1 to 32, and the allowed
content is the ASCII characters from 33 to 126.
109
