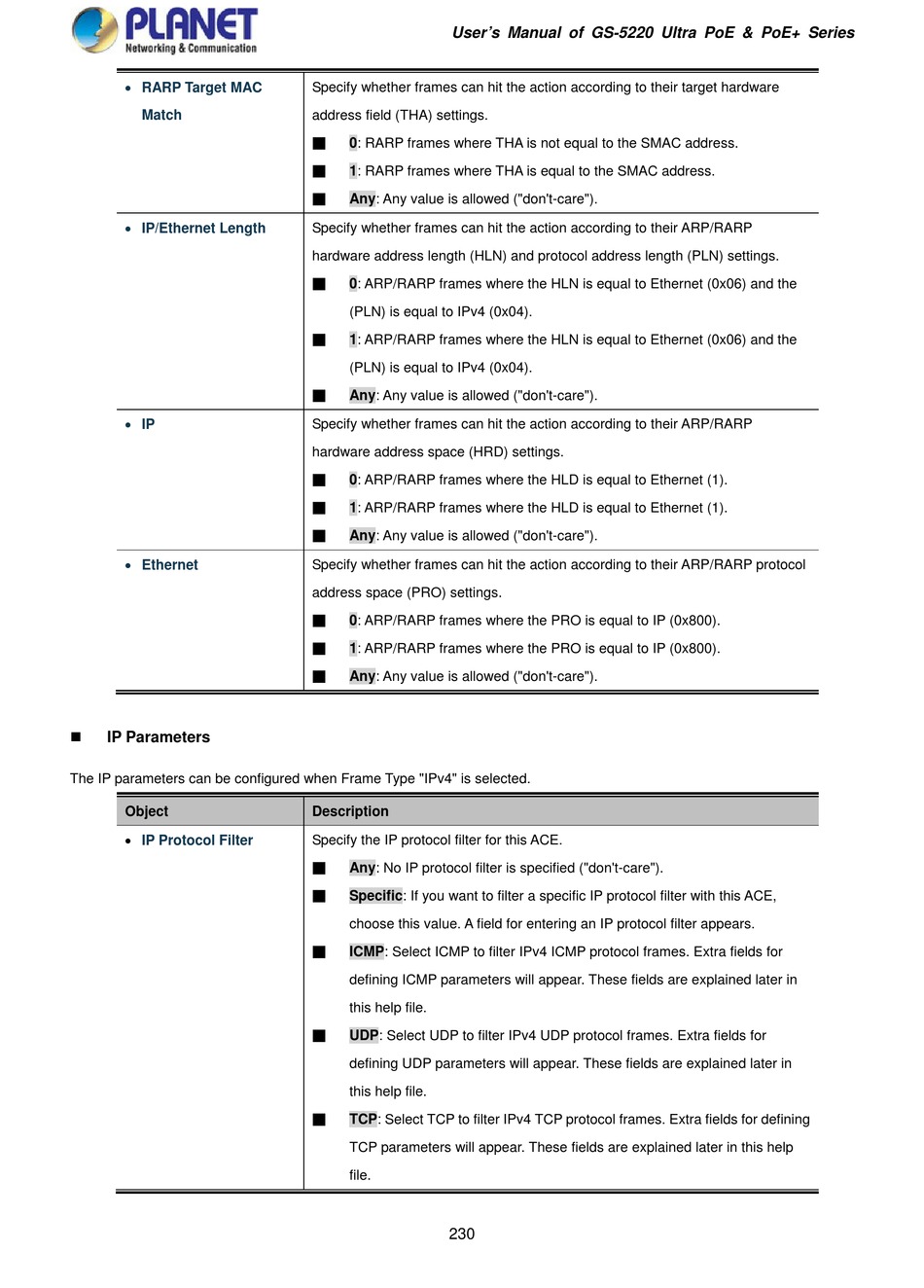

Planet Networking & Communication GS-5220-24P4X User Manual page 230

• RARP Target MAC
Match
• IP/Ethernet Length
• IP
• Ethernet

IP Parameters
The IP parameters can be configured when Frame Type "IPv4" is selected.
Object
•
IP Protocol Filter
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Specify whether frames can hit the action according to their target hardware
address field (THA) settings.
■
0: RARP frames where THA is not equal to the SMAC address.
■
1: RARP frames where THA is equal to the SMAC address.
■
Any: Any value is allowed ("don't-care").
Specify whether frames can hit the action according to their ARP/RARP
hardware address length (HLN) and protocol address length (PLN) settings.
■
0: ARP/RARP frames where the HLN is equal to Ethernet (0x06) and the
(PLN) is equal to IPv4 (0x04).
■
1: ARP/RARP frames where the HLN is equal to Ethernet (0x06) and the
(PLN) is equal to IPv4 (0x04).
■
Any: Any value is allowed ("don't-care").
Specify whether frames can hit the action according to their ARP/RARP
hardware address space (HRD) settings.
■
0: ARP/RARP frames where the HLD is equal to Ethernet (1).
■
1: ARP/RARP frames where the HLD is equal to Ethernet (1).
■
Any: Any value is allowed ("don't-care").
Specify whether frames can hit the action according to their ARP/RARP protocol
address space (PRO) settings.
■
0: ARP/RARP frames where the PRO is equal to IP (0x800).
■
1: ARP/RARP frames where the PRO is equal to IP (0x800).
■
Any: Any value is allowed ("don't-care").
Description
Specify the IP protocol filter for this ACE.
■
Any: No IP protocol filter is specified ("don't-care").
■
Specific: If you want to filter a specific IP protocol filter with this ACE,
choose this value. A field for entering an IP protocol filter appears.
■
ICMP: Select ICMP to filter IPv4 ICMP protocol frames. Extra fields for
defining ICMP parameters will appear. These fields are explained later in
this help file.
■
UDP: Select UDP to filter IPv4 UDP protocol frames. Extra fields for
defining UDP parameters will appear. These fields are explained later in
this help file.
■
TCP: Select TCP to filter IPv4 TCP protocol frames. Extra fields for defining
TCP parameters will appear. These fields are explained later in this help
file.
