4.16.8 LLDP PoE Neighbours

This page provides a status overview for all LLDP PoE neighbors. The displayed table contains a row for each port on which an
LLDP PoE neighbor is detected. The columns hold the following information: The screen in Figure
Please note that administrator has to enable LLDP port from LLDP configuration; please refer to the following example (The
screen in Figure 4-16-8 appears.). To enable LLDP function from port1 to port3, administrator has to plug a PD that supports
PoE LLDP function, and then administrator is going to see the PoE information of the PD from LLDP.
User's Manual of GS-5220 Ultra PoE & PoE+ Series

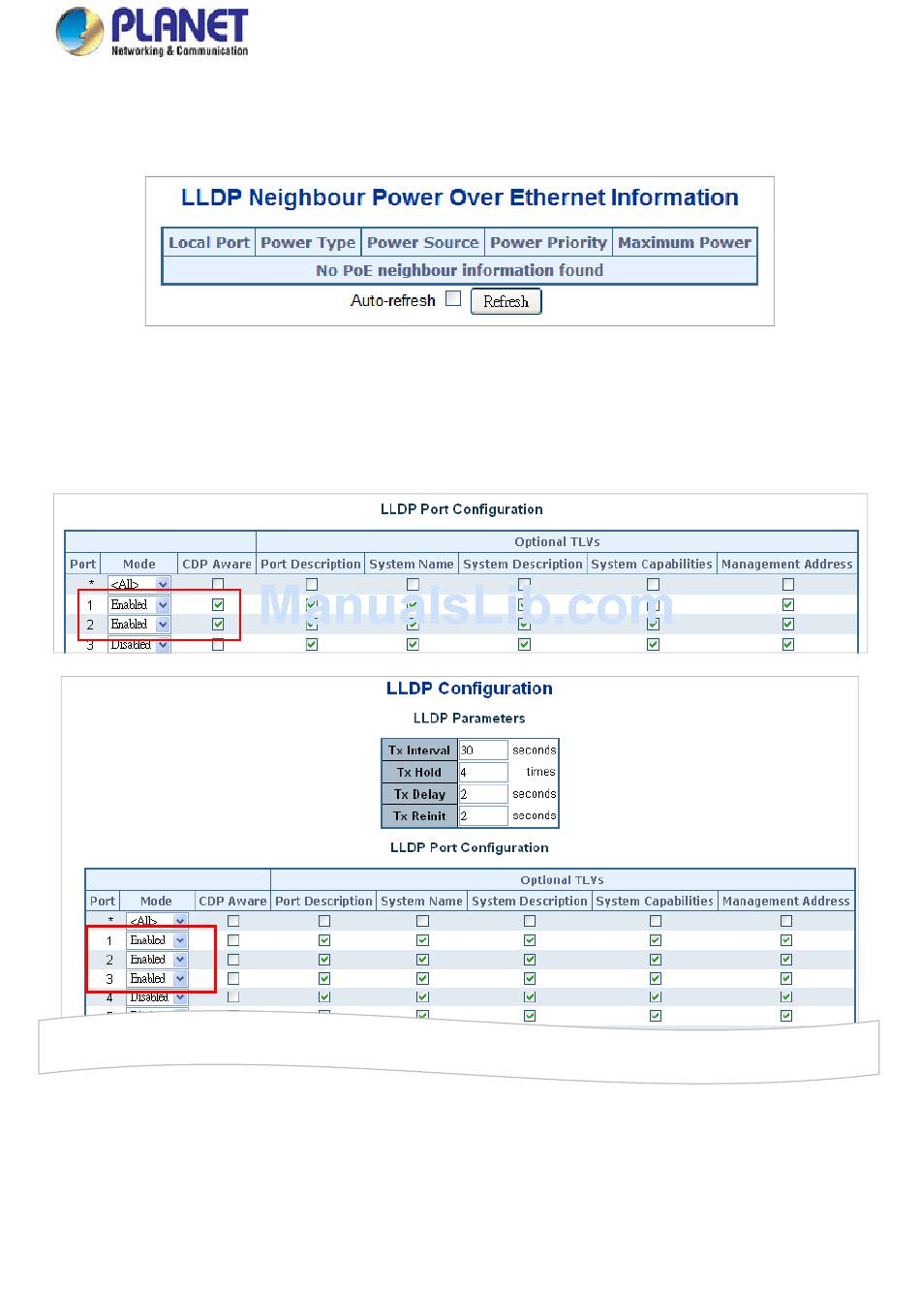

Figure 4-16-7: LLDP PoE Neighbour Screenshot
Figure 4-16-8: LLDP Configuration Screenshot
341
4-16-7 appears.
