Global VLAN Configuration

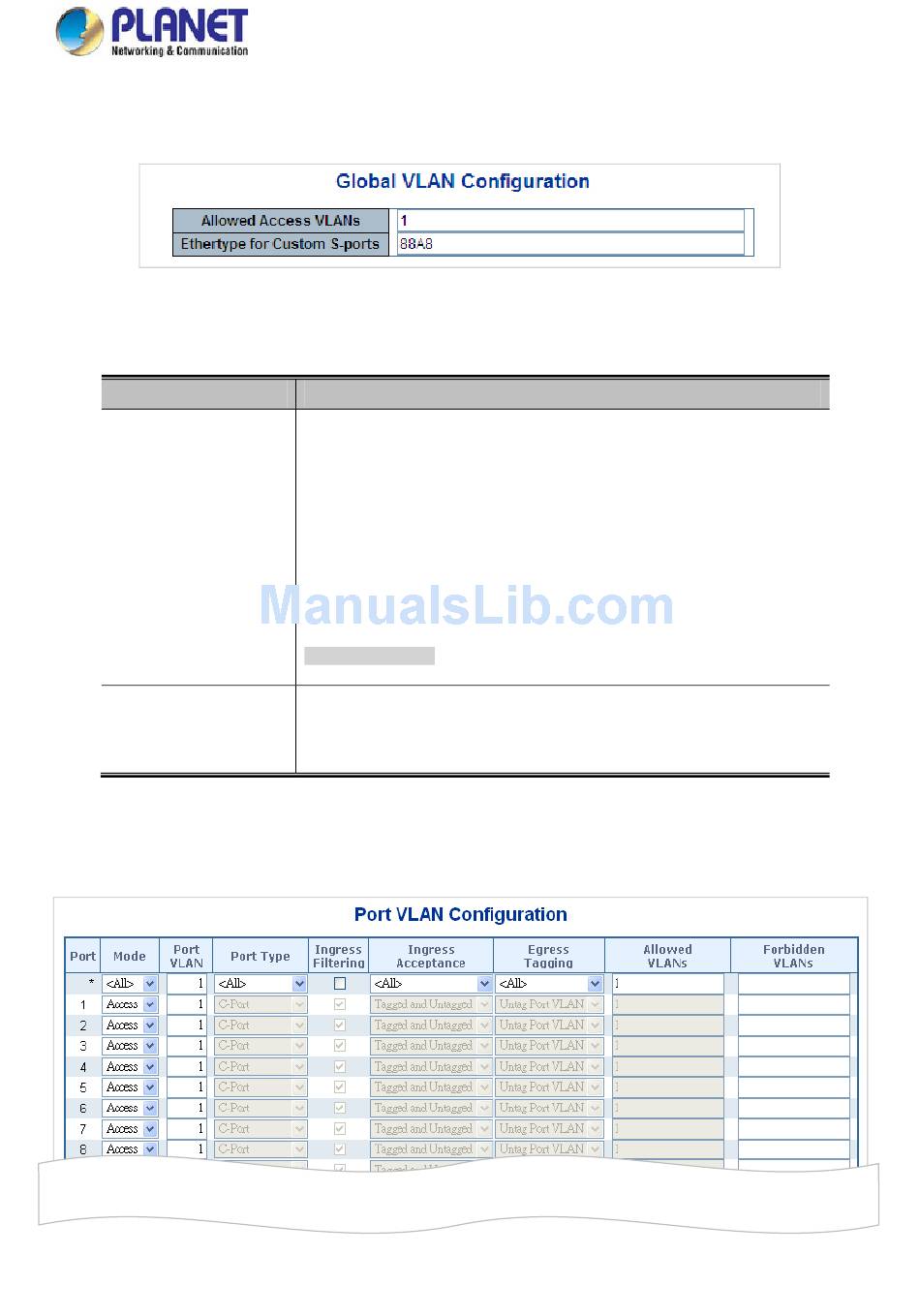

The Global VLAN Configuration screen in
The page includes the following fields:
Object
•
Allowed Access
VLANs
• Ethertype for Custom
S-ports
Port VLAN Configuration
The VLAN Port Configuration screen in
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Figure 4-6-1 appears.
Figure 4-6-1 : Global VLAN Configuration Screenshot
Description
This field shows the allowed Access VLANs, it only affects ports configured as
Access ports. Ports in other modes are members of all VLANs specified in the
Allowed VLANs field.
By default, only VLAN 1 is enabled. More VLANs may be created by using a list
syntax where the individual elements are separated by commas. Ranges are
specified with a dash separating the lower and upper bound.
The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300:
1,10-13,200,300. Spaces are allowed in between the delimiters.
This field specifies the ethertype/TPID (specified in hexadecimal) used for
Custom S-ports. The setting is in force for all ports whose Port Type is set to
S-Custom-Port.
Figure 4-6-2 appears.
