4.16.6 PoE Status

This page allows the user to inspect the total power consumption, total power reserved and current status for all PoE ports. The
screen in Figure 4-16-5 appears.
The page includes the following fields:
Object
• Sequential Power On
• System Power Budget
• Operation Mode
• Current Budget
• Current Ports in Use
• Class 1 ~ 4 ports
• Power Consumption
User's Manual of GS-5220 Ultra PoE & PoE+ Series

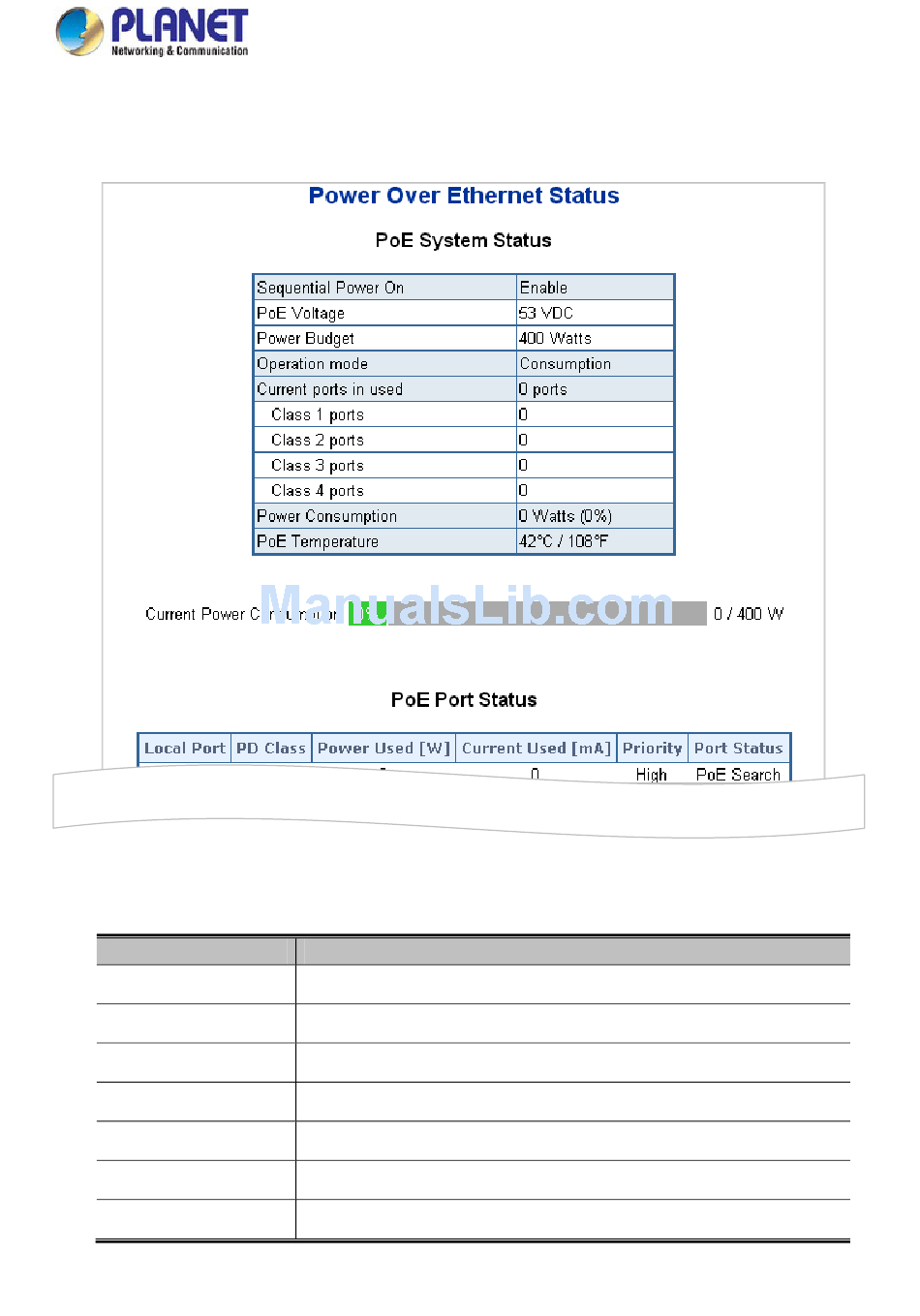

Figure 4-16-5:PoE Status Screenshot
Description
Displays the current sequential power on mode.
Displays the maximum PoE power budget.
Displays the current PoE operation mode.
Displays the current maximum PoE budget.
Displays the current PoE ports in use.
Displays the current PoE class 1 ~ 4 ports.
Displays the current power consumption (total watts and percentage)
