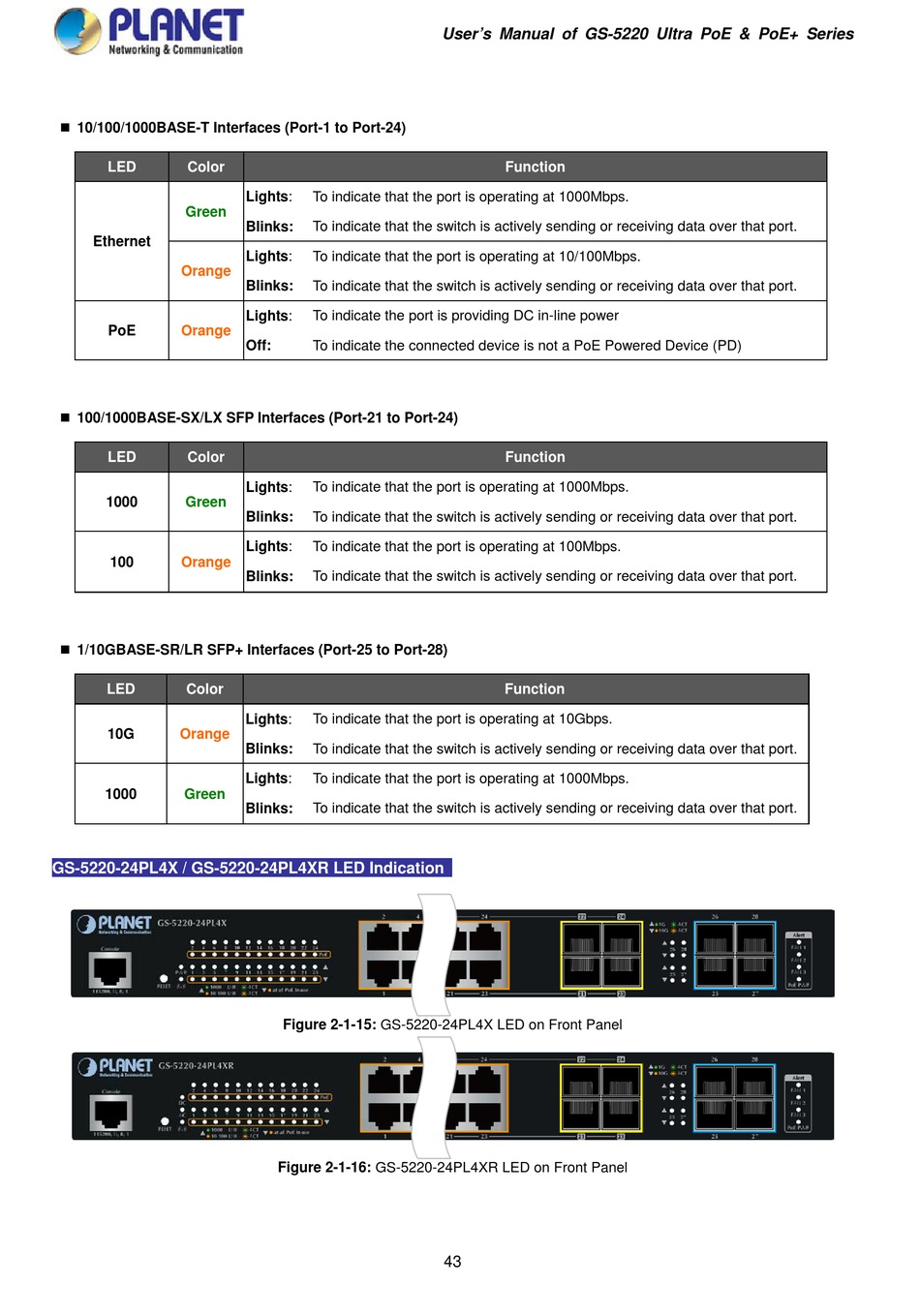

10/100/1000BASE-T Interfaces (Port-1 to Port-24)
LED
Color
Green
Ethernet
Orange
PoE
Orange
100/1000BASE-SX/LX SFP Interfaces (Port-21 to Port-24)
LED
Color
1000
Green
100
Orange
1/10GBASE-SR/LR SFP+ Interfaces (Port-25 to Port-28)
LED
Color
10G
Orange
1000
Green
GS-5220-24PL4X / GS-5220-24PL4XR LED Indication
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 10/100Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate the port is providing DC in-line power
Off:
To indicate the connected device is not a PoE Powered Device (PD)
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 100Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 10Gbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Figure 2-1-15: GS-5220-24PL4X LED on Front Panel
Figure 2-1-16: GS-5220-24PL4XR LED on Front Panel
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Function
Function
Function
43
