The page includes the following fields:
Object
• Sequential Power up
Option
• Sequential Power up
Interval
• Sequential Power up
Port Option
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.16.5 Port Configuration

This section allows the user to inspect and configure the current PoE port settings
The page includes the following fields:
Object
• PoE Mode
• Schedule
Description
Allows user to enable or disable Sequential Power up function.
Allows user to configure the PoE Port Start Up interval time.
There are two modes for Starting Up the PoE Port
By Port: The PoE Port will start up by following Port number.
By Priority: The PoE Port will start up by following the PoE Priority.

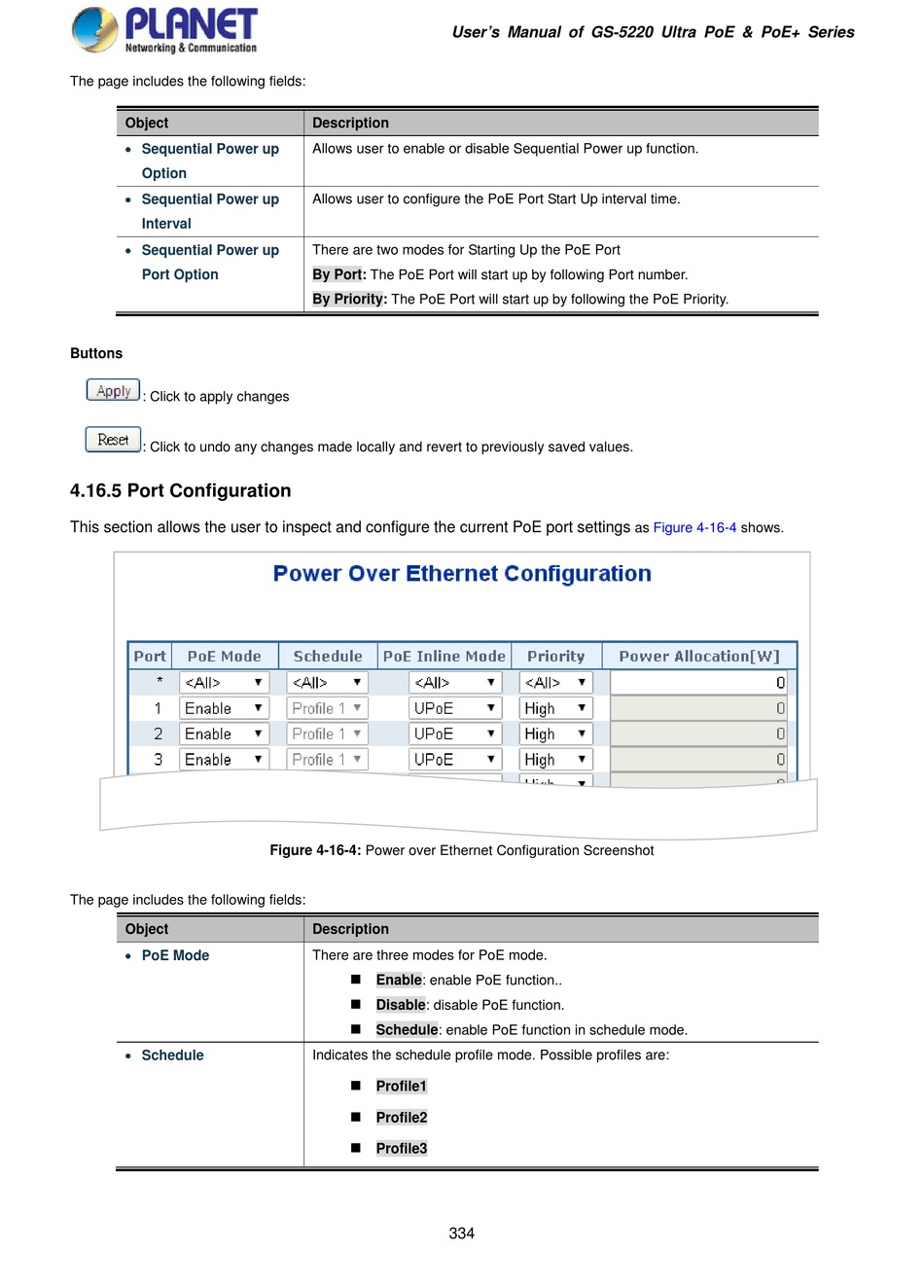

Figure 4-16-4: Power over Ethernet Configuration Screenshot
Description
There are three modes for PoE mode.

Enable: enable PoE function..

Disable: disable PoE function.

Schedule: enable PoE function in schedule mode.
Indicates the schedule profile mode. Possible profiles are:

Profile1

Profile2

Profile3
User's Manual of GS-5220 Ultra PoE & PoE+ Series
334
as Figure 4-16-4 shows.
