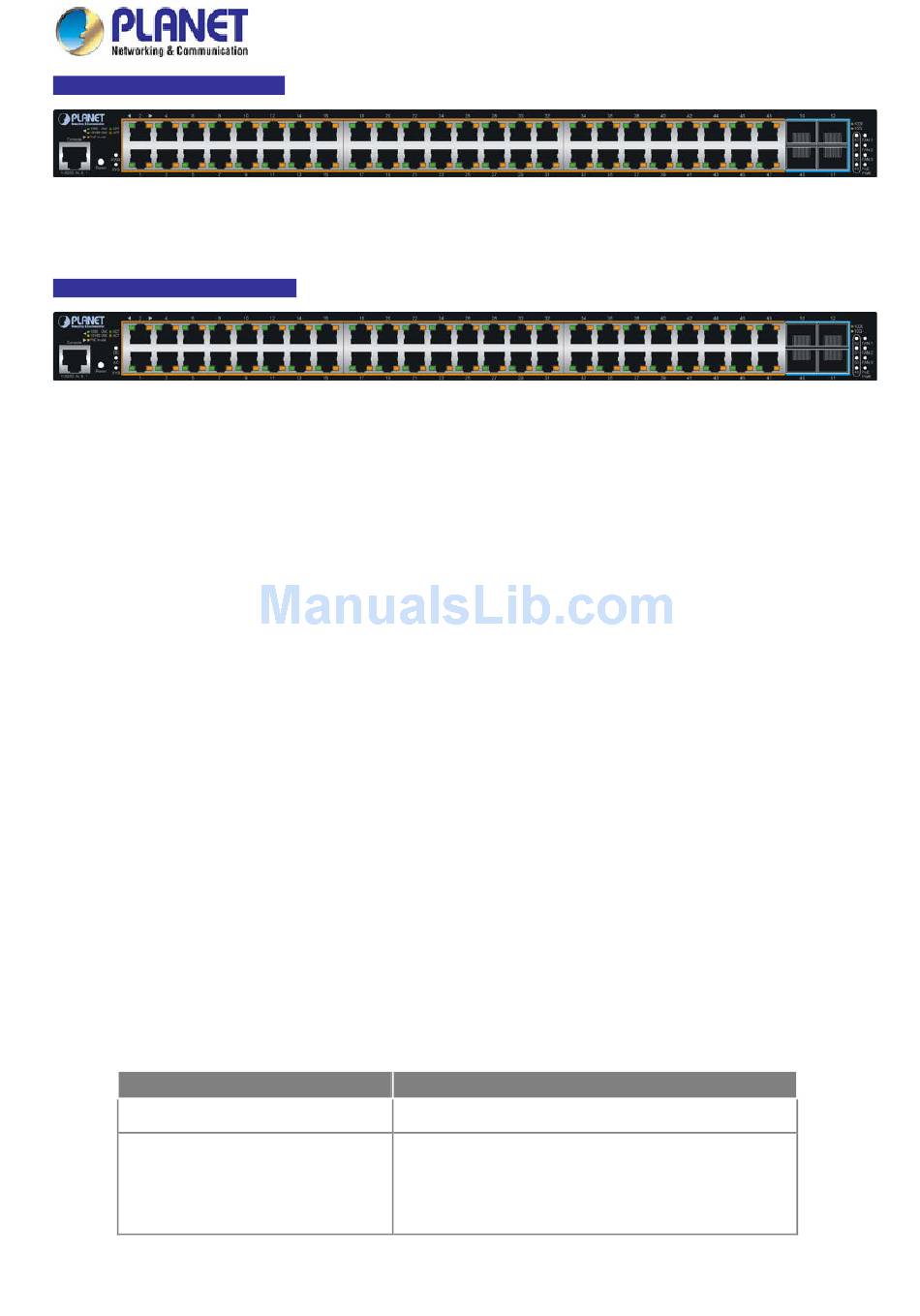

GS-5220-48P(L)4X Front Panel
GS-5220-48P(L)4XR Front Panel
■ Gigabit TP interface
10/100/1000BASE-T Copper, RJ45 twisted-pair: Up to 100 meters.
■ SFP slot
100/1000BASE-X mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters to 2km (multi-mode
fiber), up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber).
■ 10 Gigabit SFP+ slot
10GBASE-SR/LR mini-GBIC slot, SFP+ (Small Factor Pluggable Plus) Transceiver module supports from 300 meters
(multi-mode fiber) up to 10 kilometers (single mode fiber)
■ Console port
The console port is a RJ45 port connector. It is an interface for connecting a terminal directly. Through the console port, it
provides rich diagnostic information including IP address setting, factory reset, port management, link status and system
setting. Users can use the attached DB9 to RJ45 console cable in the package and connect to the console port on the
device. After the connection, users can run any terminal emulation program (Hyper Terminal, ProComm Plus, Telix,
Winterm and so on) to enter the startup screen of the device.
■ Reset button
The front panel of the GS-5220 Ultra PoE & PoE+ Series comes with a reset button designed for rebooting the Managed
Switch without turning off and on the power. The following is the summary table of reset button
Reset Button Pressed and Released
< 5 sec: System Reboot
> 5 sec: Factory Default
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Figure 2-1-11: Front Panel of GS-5220-48P(L)4X
Figure 2-1-12: Front Panel of GS-5220-48P(L)4XR
Function
Reboot the Managed Switch.
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as shown below:
。
41
Default Username: admin
functions:
