Piper Arrow IV Turbo Maintenance Manual page 100

Do not lubricate control wheel shaft or bushing. Clean only
using alcohol or other suitable solvent.
COMPONENT
1. AILERON HINGE PINS
2. FLAP HINGE BEARINGS
3. STABILATOR HINGE PINS
4. RUDDER HINGE BEARINGS
5. CONTROL CABLE PULLEYS
6. TRIM CONTROL WHEEL
7. O-RING, CONTROL SHAFT BUSHING
8. TEE BAR PIVOT POINT
9. CONTROL COLUMN CHAIN
10. CONTROL COLUMN FLEX. JOINTS AND SPROCKET
11. STABILATOR CONTROL
Disassemble O-ring retainer plates from instrument panel; lubricate O-ring and reassemble.
PIPER AIRCRAFT
PA-28RT-201 / 201T
*MAINTENANCE MANUAL
—CAUTION—
*SPECIAL INSTRUCTIONS

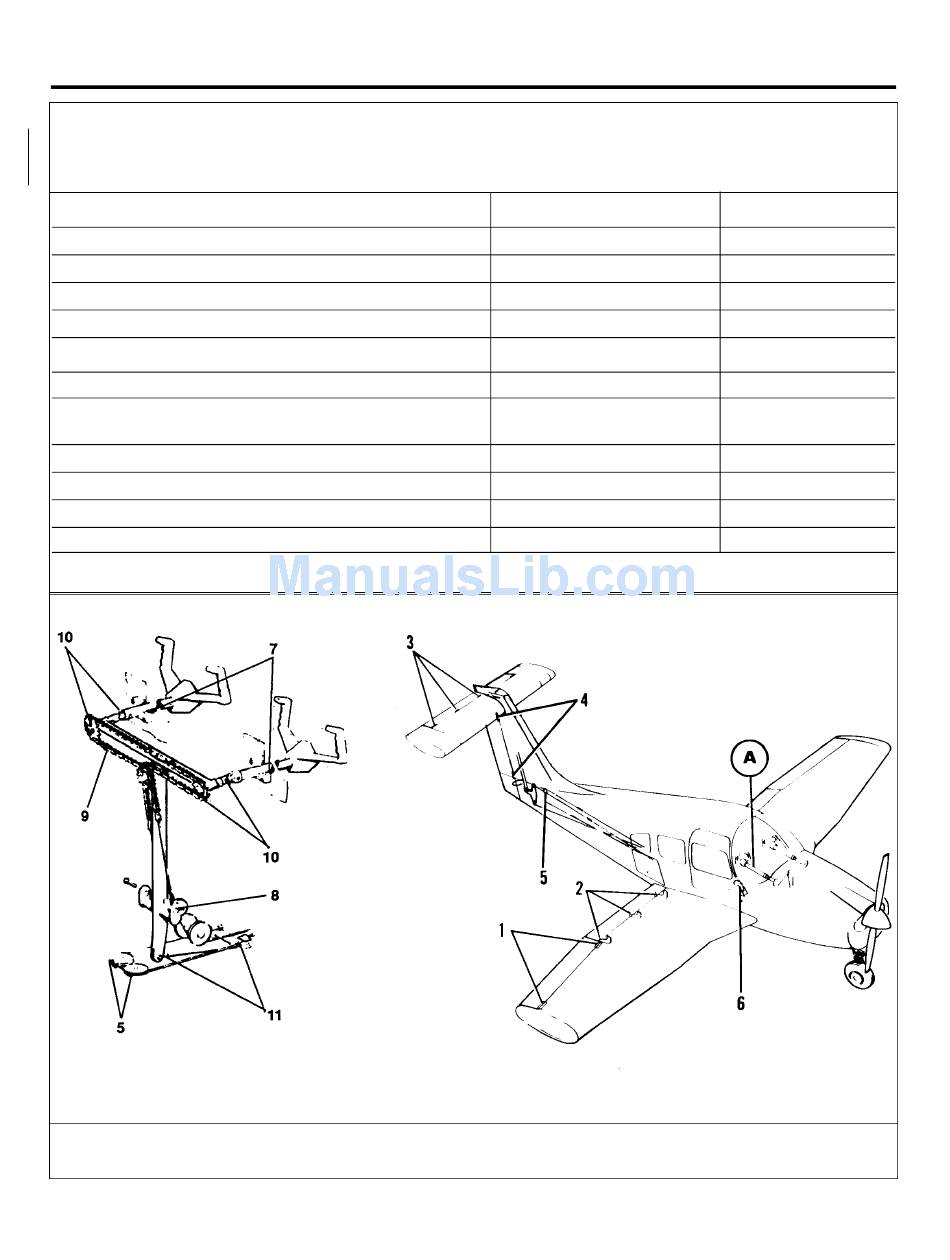

Figure 12-6. Lubrication Chart (Control System)
1E4
LUBRICANT
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
PARKER O-RING*
LUBRICANT
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
Interim Revision: July 30, 1986
FREQUENCY
100 HRS
100 HRS
100 HRS
100 HRS
100 HRS
100 HRS
AS REQUIRED
100 HRS
500 HRS
100 HRS
100 HRS
12-20-32
Page 12-21
