2. Carefully remove the window from the frame.
A damaged window should be saved to provide a pattern for
shaping the new window.
3. Remove excess tape and sealer from the window frame and molding.
INSTALLATION OF SIDE WINDOWS. (Refer to Figure 55-2.)
1. Cut or grind the new window to the same dimension as the window removed.
2. Apply Behr-Manning vinyl foam tape number 560 or equivalent, on both sides of the window around
the outer edges.
3. Apply Behr-Manning Sealant number PRC 5000 or equivalent, completely around the outer surface of
the windows at all attachment flanges.
4. Insert the window in the frame and install the retainer moldings.
5. Secure the molding with attachment screws and tighten until the vinyl foam tape is 25% compressed
by the retainers.
6. Remove the excess exposed sealer and tape.
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

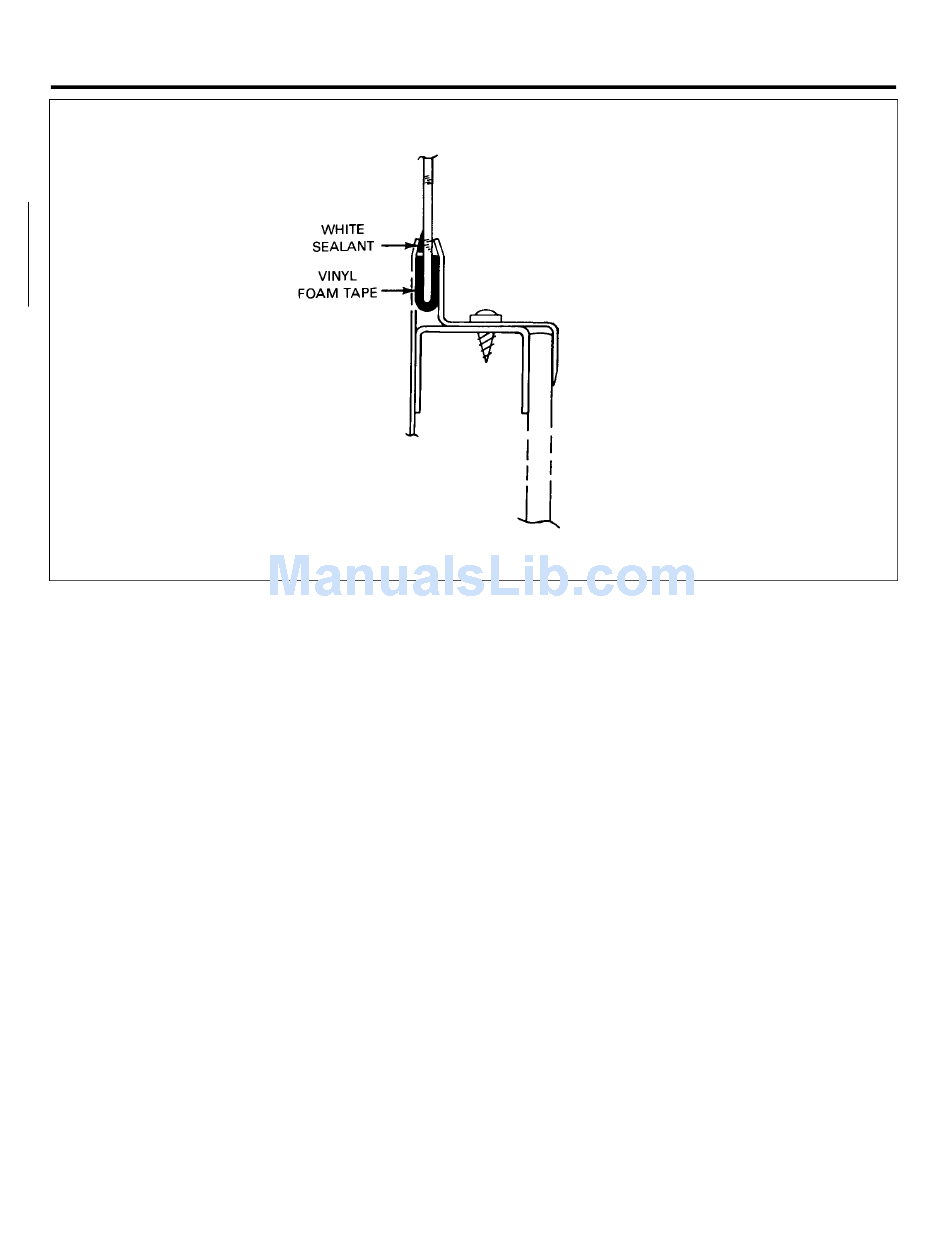

Figure 56-2. Side Window Installation, Single Pane (Typical)
—NOTE—
—END—
2J23
56-20-02
Page 56-03
Revised: July 24, 1981
