PIPER AIRCRAFT
PA-28RT-201/201T
*MAINTENANCE MANUAL

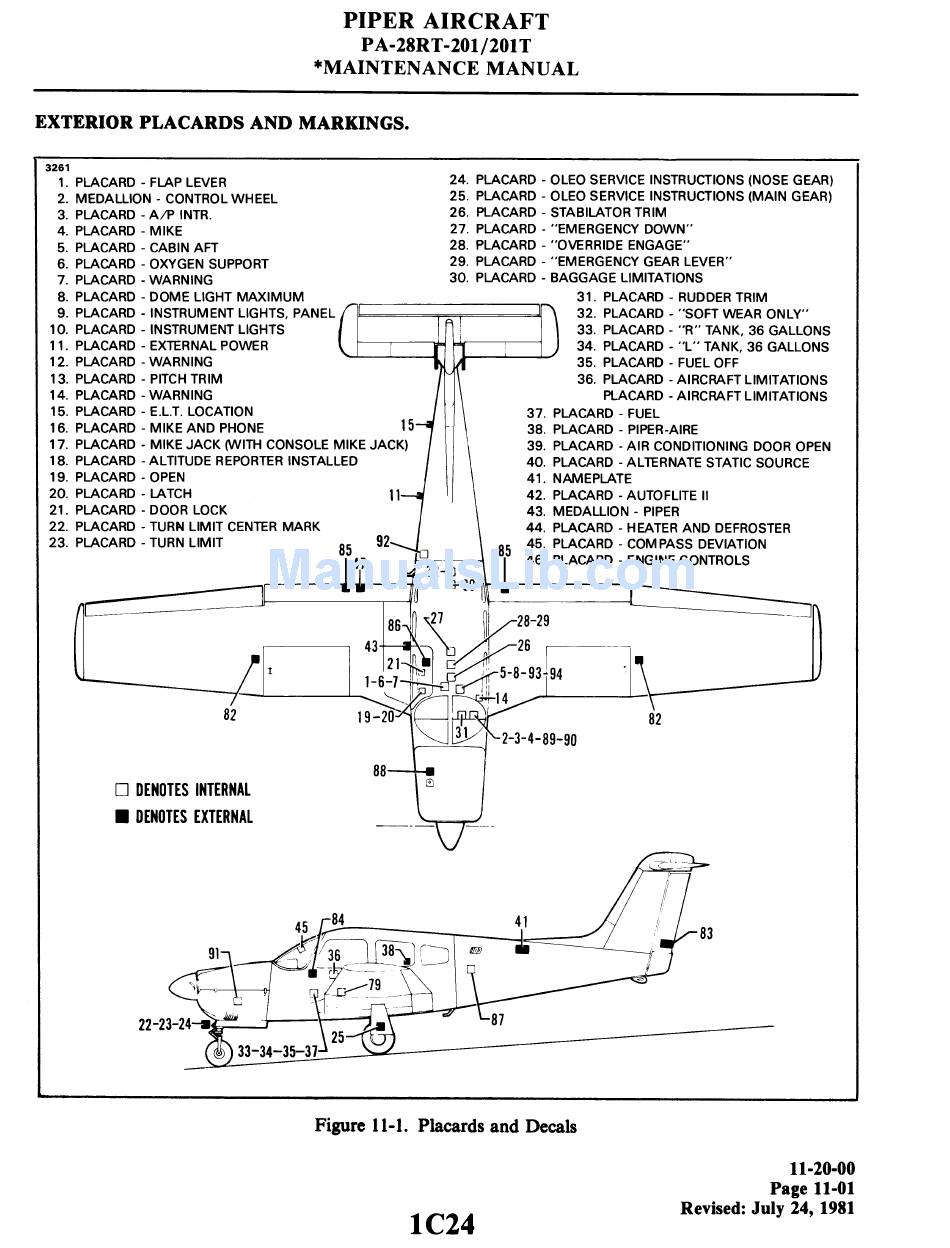

EXTERIOR PLACARDS AND MARKINGS.
3261
1. PLACARD
-
FLAP LEVER
24. PLACARD - OLEO SERVICE INSTRUCTIONS (NOSE GEAR)
2. MEDALLION
-
CONTROL WHEEL
25. PLACARD - OLEO SERVICE INSTRUCTIONS (MAIN GEAR)
3. PLACARD
-
A / P INTR.
26. PLACARD - STABllATOR TRIM
4. PLACARD - MIKE
27. PLACARD
-
"EMERGENCY DOWN"
5. PLACARD - CABIN AFT
28. PLACARD - "OVERRIDE ENGAGE"
6. PLACARD - OXYGEN SUPPORT
29. PLACARD - "EMERGENCY GEAR LEVER"
7. PLACARD
-
WARNING
30. PLACARD
-
BAGGAGE LIMITATIONS
8. PLACARD - DOME LIGHT MAXIMUM 31. PLACARD - RUDDER TRIM
9. PLACARD
-
INSTRUMENT LIGHTS, PANEL 32. PLACARD
-
"SOFT WEAR ONLY"
10. PLACARD - INSTRUMENT LIGHTS 33. PLACARD
-
"R" TANK, 36 GALLONS
1 1. PLACARD - EXTERNAL POWER 34. PLACARD
-
"L" TANK, 36 GALLONS
12. PLACARD
-
WARNING 35. PLACARD
-
FUEL OFF
1 3. PLACARD - PITCH TRIM 36. PLACARD - AIRCRAFTLIMITATIONS
14. PLACARD - WARNING
PLACARD
-
AIRCRAFT LIMITATIONS
15. PLACARD - E.L.T. LOCATION
37. PLACARD - FUEL
16. PLACARD - MIKE AND PHONE
38. PLACARD - PIPER-AIRE
17. PLACARD
-
MIKE JACK (WITH CONSOLE MIKE JACK)
39. PLACARD
-
AIR CONDITIONING DOOR OPEN
18. PLACARD - ALTITUDE REPORTER INSTALLED 40. PLACARD - ALTERNATE STATIC SOURCE
19. PLACARD
-
OPEN
41. NAMEPLATE
20. PLACARD
-
LATCH
42. PLACARD
-
AUTOFLITE II
21. PLACARD
-
DOOR LOCK
43. MEDALLION
-
PIPER
22. PLACARD
-
TURN LIMIT CENTER MARK
44. PLACARD - HEATER AND DEFROSTER
23. PLACARD
-
TURN LIMIT
5
45. PLACARD - COMPASS DEVIATION
46. PLACARD - ENGINE CONTROLS
_I
DENOTES INTERNAL
DENOTES EXTERNAL
Figure 1 1
-
1. Placards and Decals
11-20-00
Page
11-01
Revised: July 24,
1981
