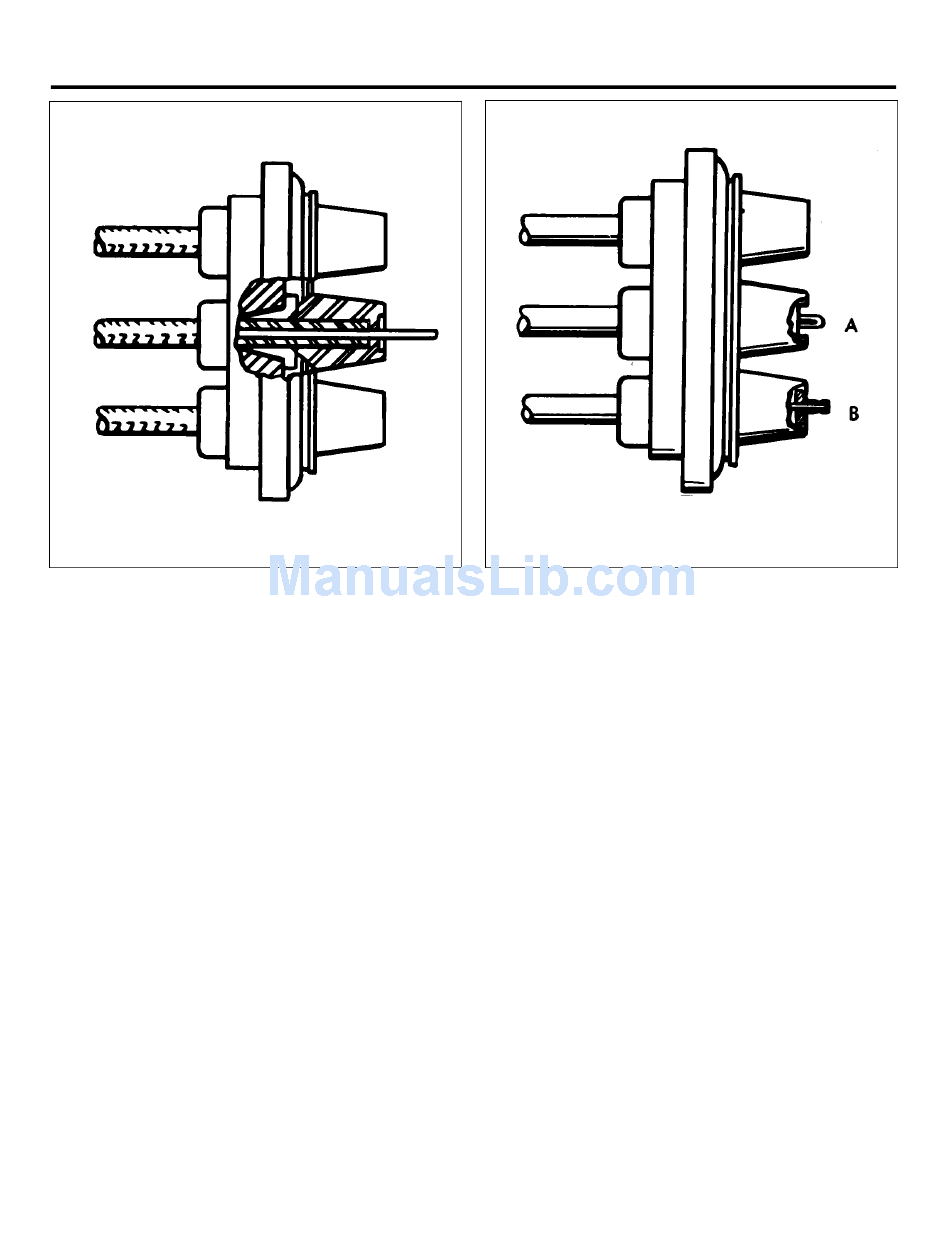

Figure 74-l9. Lead Assembly Installed in
P. Using a suitable crimping tool or equivalent, crimp the eyelet to the wire. Approximately 1/32 inch
of wire should extend from the end of the eyelet after crimping. See B of Figure 74-20.
If the crimping tool is not available, a satisfactory connection can
be made by soldering with Kester Flux 709 or equivalent and a
non corrosive solder. After soldering, clean solder joints using
denatured alcohol.
Q. Install the clamps and cable ties, as necessary, to secure the lead to the engine.
Leads should be dressed away from hot spots, such as manifolds
and sharp edges which cause chafing.
