Piper Arrow IV Turbo Maintenance Manual page 105

COMPONENT
1. ENGINE SUM LYCOMING)
PA-28RT-201 ONLY
2. CARTRIDGE TYPE OIL FILTERS
3. AIR FILTERS
4. PROPELLER ASSEMBLY
5. ENGINE CONTROL AND ENVIRONMENTAL
CONTROL PIVOT POINTS
6. FRESH AIR VENT SHAFTS
7. ALTERNATOR AND COMPRESSOR IDLER
PULLEY BEARINGS
1. Air Filter - To clean filter, tap gently to remove dirt particles. Do not blow out with compressed air or use oil. Replace filter if punctured or
damaged. Air filter is located on left side of engine cowl.
2. Propeller - Remove one of the two grease fittings for each blade. Apply grease through fitting until fresh grease appears at hole of removed
fitting.
See the latest revision of Lycoming Service Instructions No. 1014 for use of detergent oil.

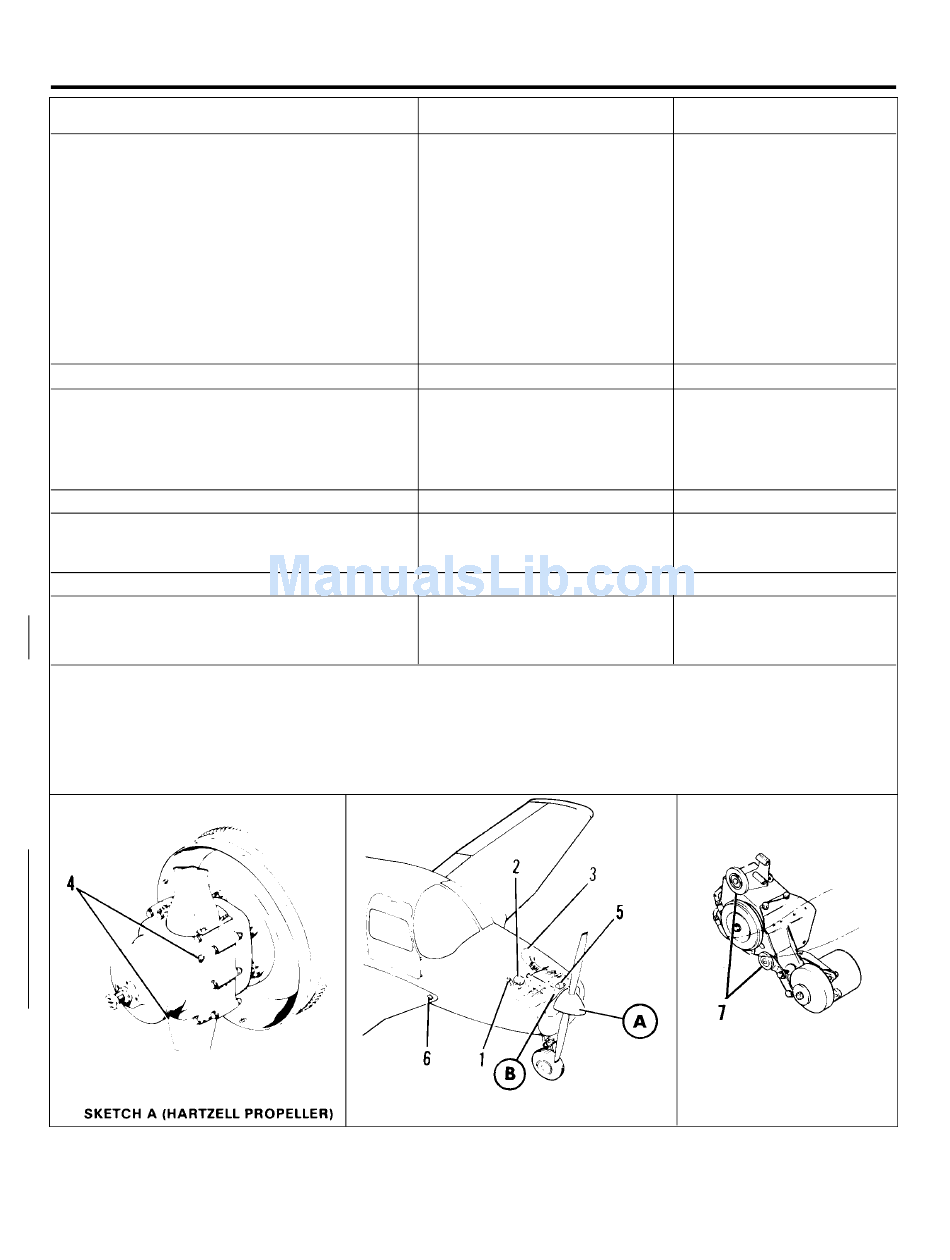

Figure 12-8. Lubrication Chart (Lycoming Power Plant, Propeller and Control Pivot Points)
PIPER AIRCRAFT
PA-28RT-201 / 201T
*MAINTENANCE MANUAL
LUBRICANT
MIL-L-6082 LUBRICATING
OIL, AIRCRAFT RECIPRO-
CATING ENGINE (PISTON)
GRADE AS SPECIFIED,
SAE 50 ABOVE 60°F AIR
TEMP., SAE 40 30° TO
90°F AIR TEMP., SAE 30
0° TO 70°F AIR TEMP.,
SAE 20 BELOW 10°F AIR
TEMP.
CLEAN AS OFTEN AS
NECESSARY, EVERYDAY
UNDER SEVERE
CONDITIONS
MIL-G-23827
MIL-L-7870
MIL-G-7711
MIL-G-81322
SPECIAL INSTRUCTIONS
NOTE
1E9
FREQUENCY
100 HRS
50 HRS
100 HRS
100 HRS
500 HRS
100 HRS
12-20-32
Page 12-25
Revised: February 23, 1979
