PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
1.
COMPRESSOR
2.
FREON LINES
3.
ALTERNATOR
4.
PULLEY POSITIONS
5.
DUCT ASSEMBLY
6.
EVAPORATOR FILTER AND COVER
7.
EXPANSION VALVE

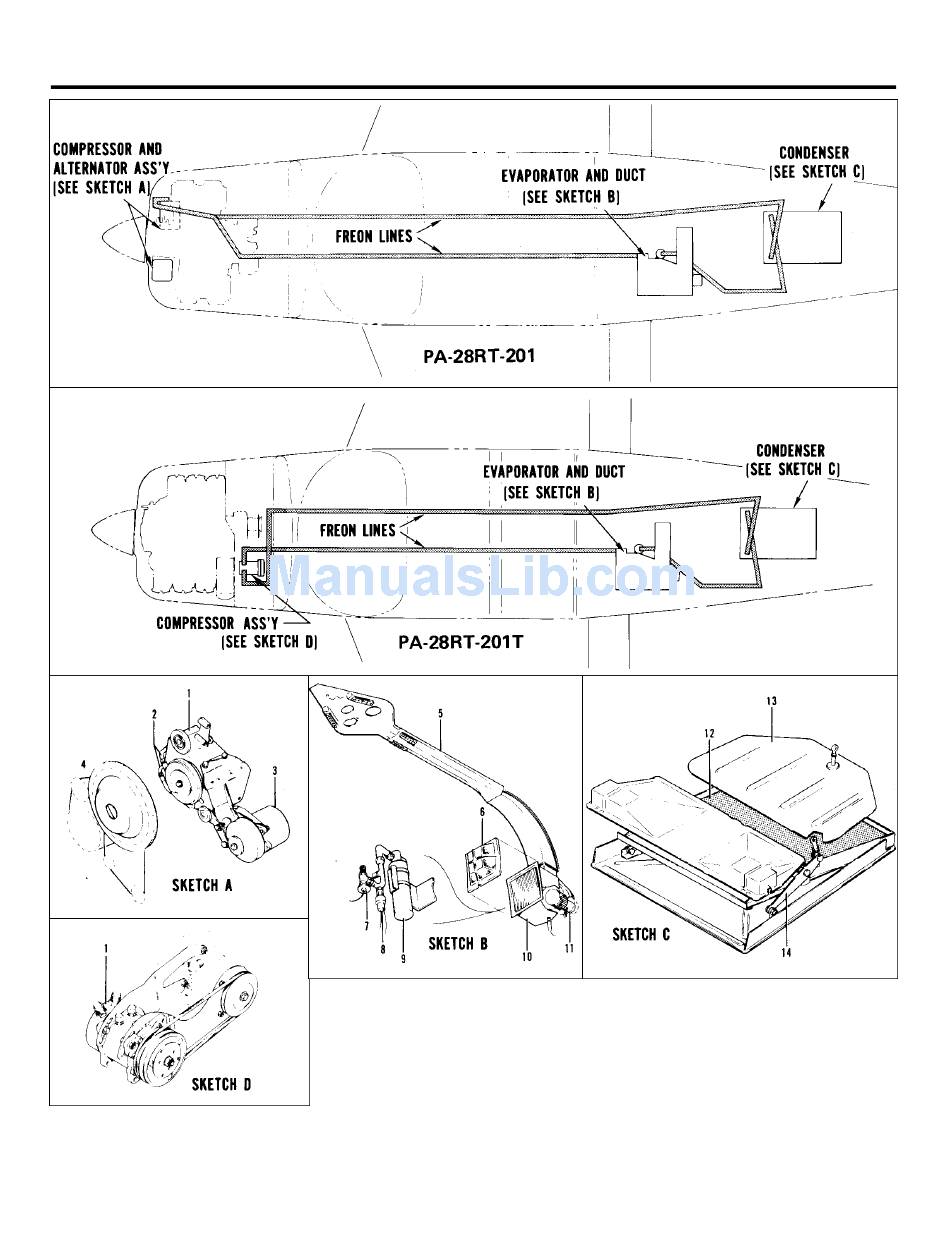

Figure 21-4. Air Conditioning System Installation
1F11
8.
PRESSURE SWITCH
9.
RECEIVER DEHYDRATOR
10.
EVAPORATOR
11.
SLOWER MOTOR
12.
CONDENSER
13.
COVER ASSEMBLY
14.
BELLCRANK ASSEMBLY
December 1, 1978
21-50-01
Page 21-12
