G. With the cables disconnected from the trim control wheel, draw the cable(s) through the floor
tunnel.
INSTALLATION OF STABILATOR TRIM ASSEMBLY. (Forward) (Refer to Figure 27-18.)
1. The trim control wheel with drum may be installed by the following procedure:
A. Wrap the right trim cable on the trim drum by inserting the swaged ball of the cable in the slot
provided in the side (right side) of the drum that mates with the control wheel, and looking at this
side, wrap the drum with three wraps of the cable in a clockwise direction.
B. Attach the control wheel to the cable drum by aligning the long lug of the drum with the long slot
of the wheel and pushing the two pieces together.
C. Wrap the left trim cable on the drum by inserting the swaged ball of the cable in the slot provided
in the flanged side (left side) of the drum and looking at this side, wrap the drum with three wraps
of the cable in a clockwise direction.
D. Lubricate and install the bushing in the control wheel and drum.
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

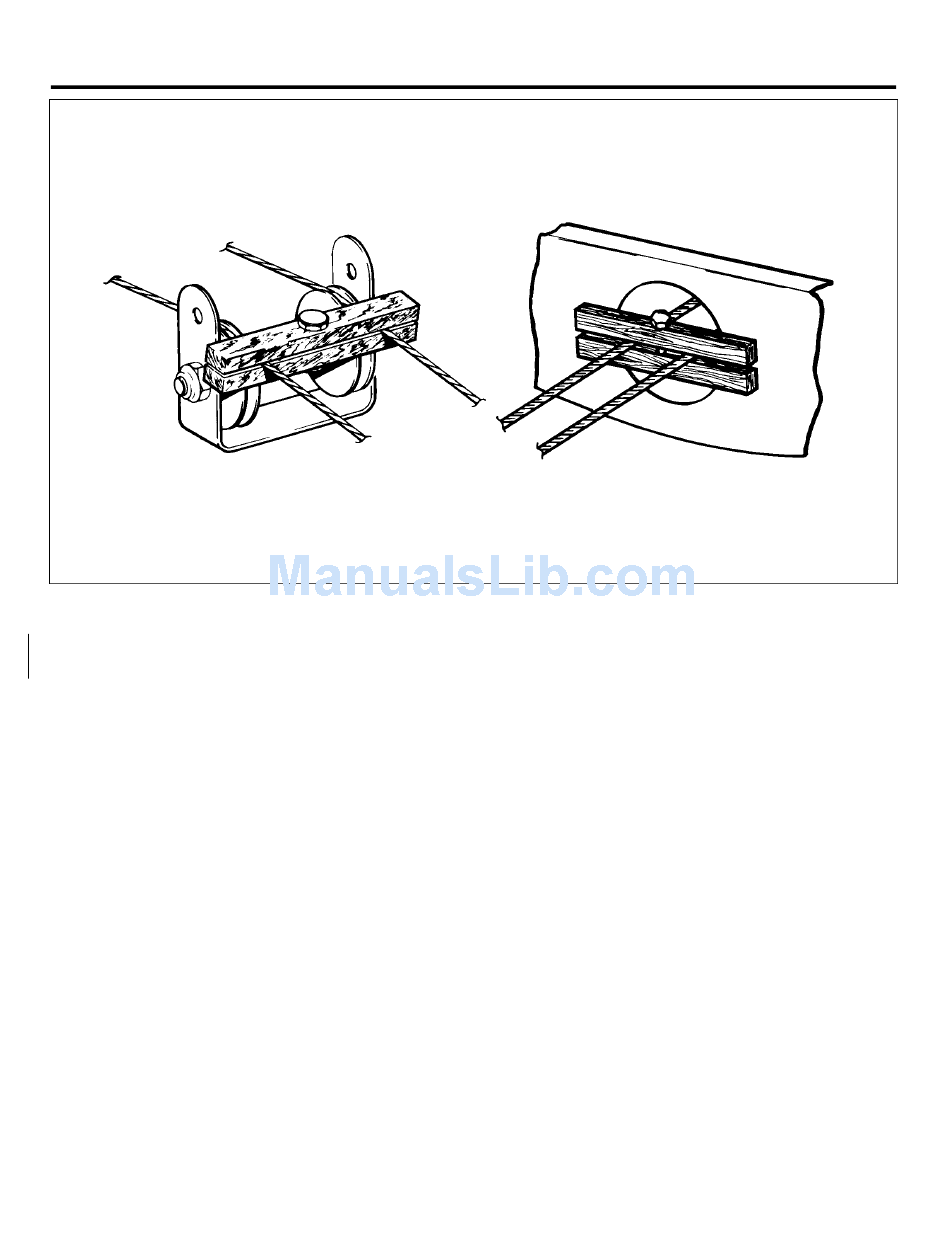

Figure 27-17. Methods of Securing Trim Cables
1L4
27-35-02
Page 27-33
Revised: February 23, 1979
