Piper Arrow IV Turbo Maintenance Manual page 591

3
5
INSTALLATION OF ENGINE COWLING.
1. Attach the bottom cowl to the firewall and then install the top. Connect the electrical lead to the
landing light.
2. Connect the gear door retraction rods and secure with bolts, washers and nuts.
MOUNTS.
REPLACEMENT OF ENGINE SHOCK MOUNTS. (Refer to Figure 71-3.)
1. Remove the engine cowling.
2. Relieve the engine weight on the mounts using a one-half ton hoist attached to the engine lifting
points.
3. Remove the four engine mounting bolts and the lower half of the mount assemblies.
4. Carefully raise the engine just enough to remove the shock mounts. Check all lines, wires and cables
for interference. Disconnect any lines and cables if necessary.
5. Check all components for wear, damage or cracks and install new mounting kit.
6. Lower the engine slowly and use mounting bolts to keep the components aligned.
7. When the engine is supported by the mount, check the mounts for proper seating.
8. Install the mounting bolt, nut, and washer; torque 450 to 500 inch-pounds and safety.
9. Reconnect any lines, wires or cables that were disconnected and install engine cowling.
Effectivity
PA-28RT-201
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

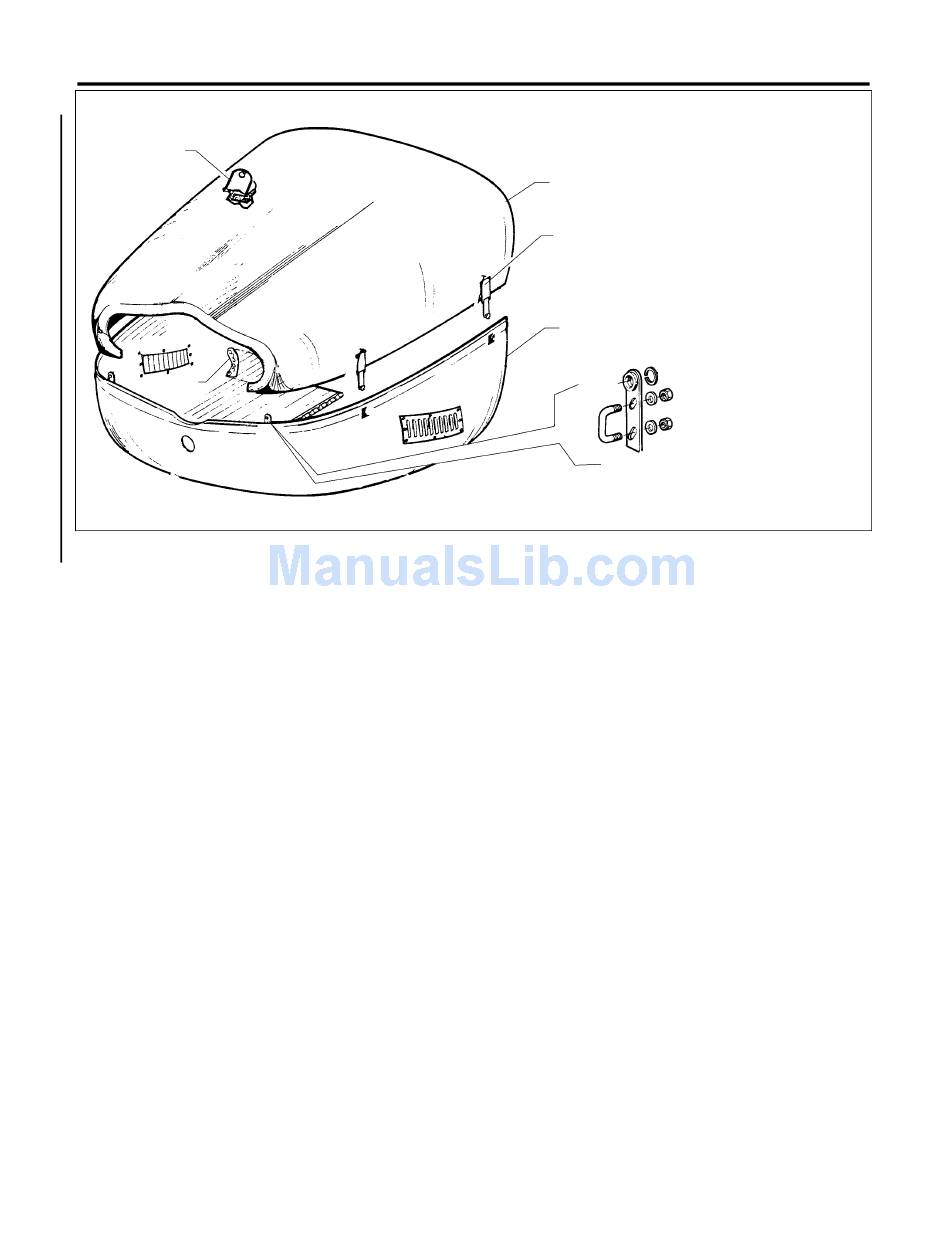

Figure 71-4. Engine Cowling Installation
- END -
3C11
1
1. UPPER COWL ASSEMBLY
2. LOWER COWL ASSEMBLY
3. OIL FILLER DOOR ASSEMBLY
4
4. FASTENER ASSEMBLY
5. PIN PLATE ASSEMBLY
6. PLATE ASSEMBLY, BUSHING,
RETAINING RING, WASHERS, NUTS
2
6
Interim Revision: February 27, 1995
71-20-01
Page 71-22
