ZS4-4 CPU and Memory

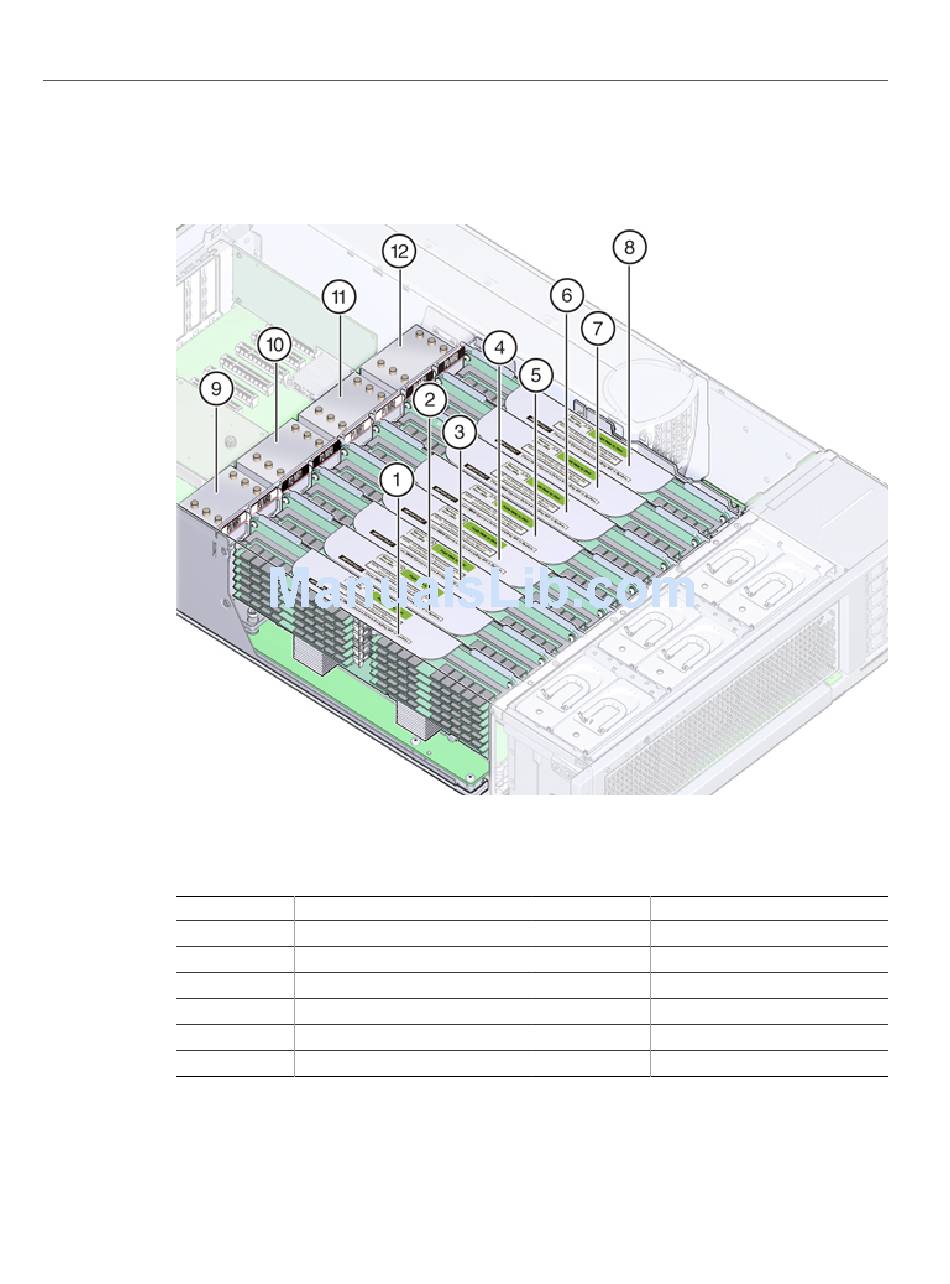

FIGURE 11
Figure Legend
1 Memory riser card P3/MR1
2 Memory riser card P3/MR0
3 Memory riser card P2/MR1
4 Memory riser card P2/MR0
5 Memory riser card P1/MR1
6 Memory riser card P1/MR0
ZS4-4 Controller Hardware Overview
7 Memory riser card P0/MR1
8 Memory riser card P0/MR0
9 CPU P3
10 CPU P2
11 CPU P1
12 CPU P0
