Replacing a Disk Shelf SIM Board

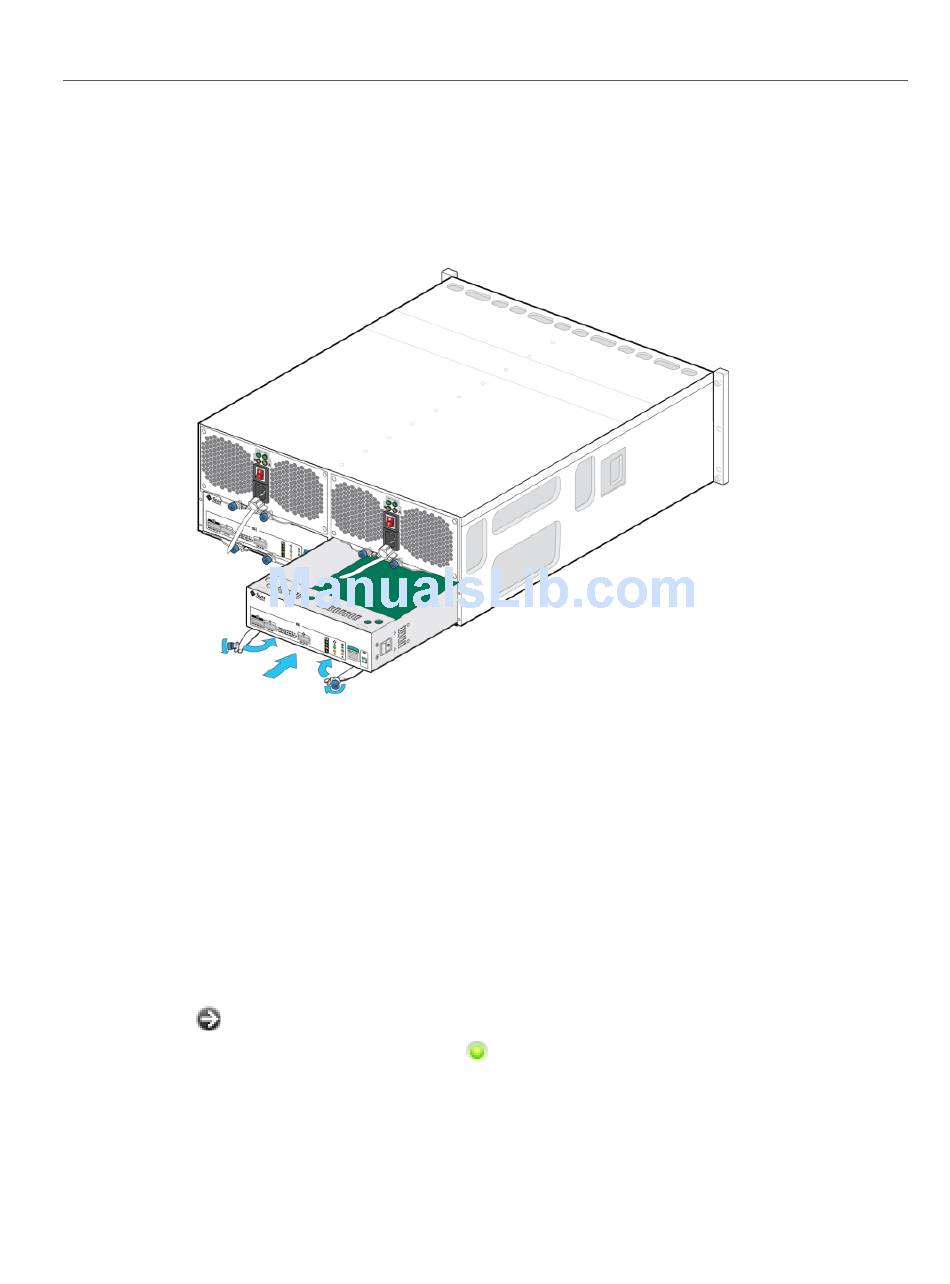

8. With the ejector arms in the full open position, align the new SIM board with
the open slot and slide it into the tray until the ejector arms contact the tray
connectors and begin to swing closed.
9. Swing both ejector arms in until they are flush with the SIM board panel to seat
the board.
10. Tighten both captive screws to secure the board.
Reconnect the SAS interface cables to their original locations.
11.
12. Wait approximately 60 seconds for the SIM board to complete its boot process,
at which time the Power LED should be solid green and the SIM locate LED
should be off.
Go to the Maintenance > Hardware section of the BUI, click the right-arrow icon
13.
at the beginning of the appropriate disk shelf row, and then click Slot to verify
that the SIM board online icon
If a fault does not self-clear, see
14.
268 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
is green for the newly installed SIM board.
"Repairing Active Problems" on page 37.
