ZS4-4 Controller Hardware Overview

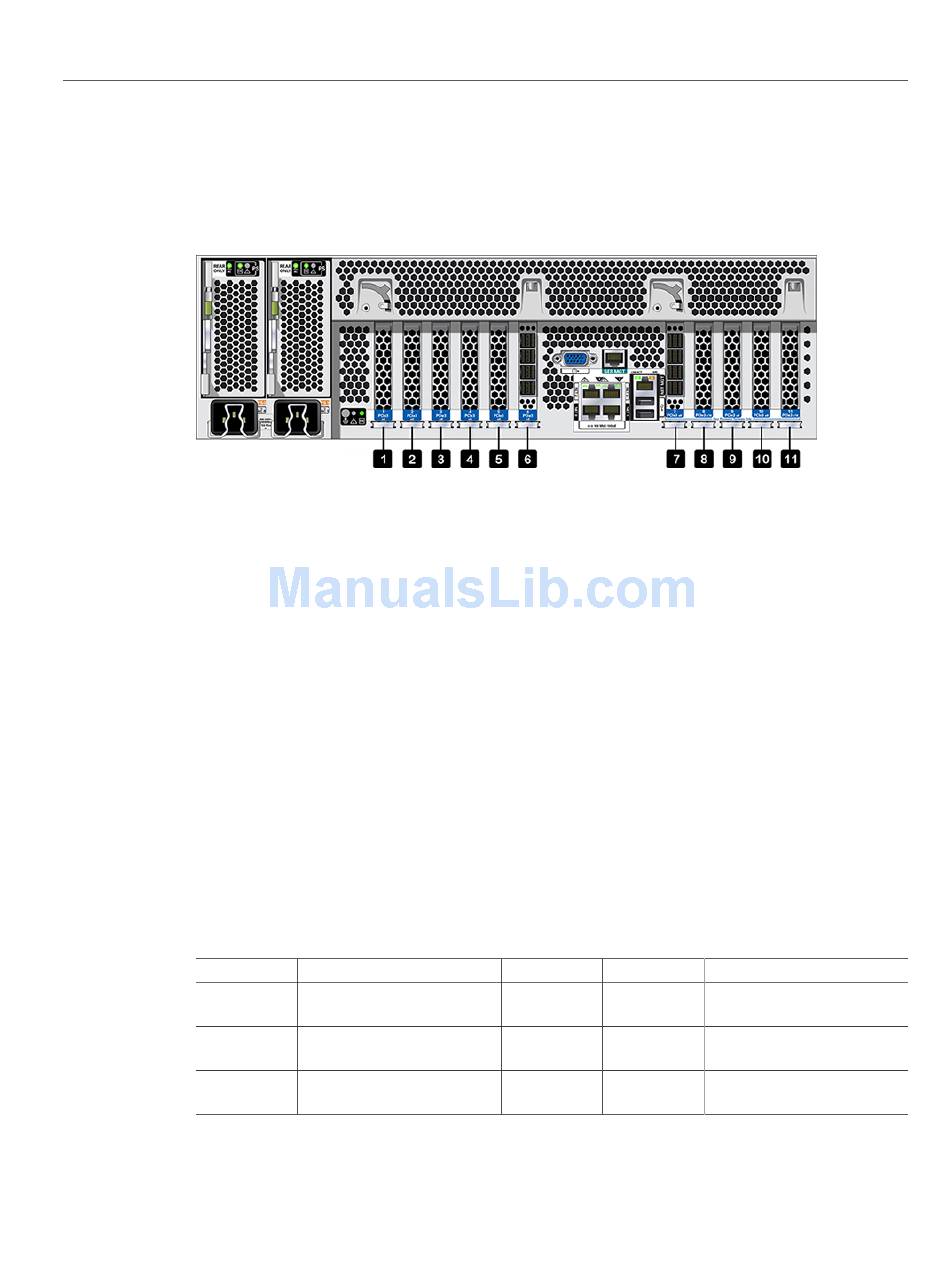

The following figure shows the PCIe I/O slot numbers.
FIGURE 8
PCIe Slot Order - Install optional PCIe cards in the following order:
Install additional 4x4 SAS-2 HBAs in slot 9, then slot 3.
■
Install InfiniBand CX3 HCAs into the first available client-option slot starting with slot 11,
■
then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
Install 16Gb FC HBAs into the first available client-option slot starting with slot 11, then
■
slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
Install 10Gb Ethernet Optical NICs into the first available client-option slot starting with
■
slot 11, then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
Install 10Gb Ethernet Copper NICs into the first available client-option slot starting with
■
slot 11, then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
ZS4-4 PCIe Base and Optional Configurations - The following table describes the PCIe
base and optional slot assignments for ZS4-4 standalone and cluster configurations. PCIe slot
numbering begins with slot 1.
See the legend for a description of the interconnect types and option codes shown in the Type
column.
Slot
1
1
1
80 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
ZS4-4 PCIe I/O Slot Numbers
Description
2-port InfiniBand CX3 HCA
2-port 10Gb Ethernet Optical
NIC
2-port 10Gb Ethernet Copper
NIC
Max Type
4 A
4 C
4 D
Note
Optional recommended front-
end
Optional recommended front-
end
Optional recommended front-
end
