6.

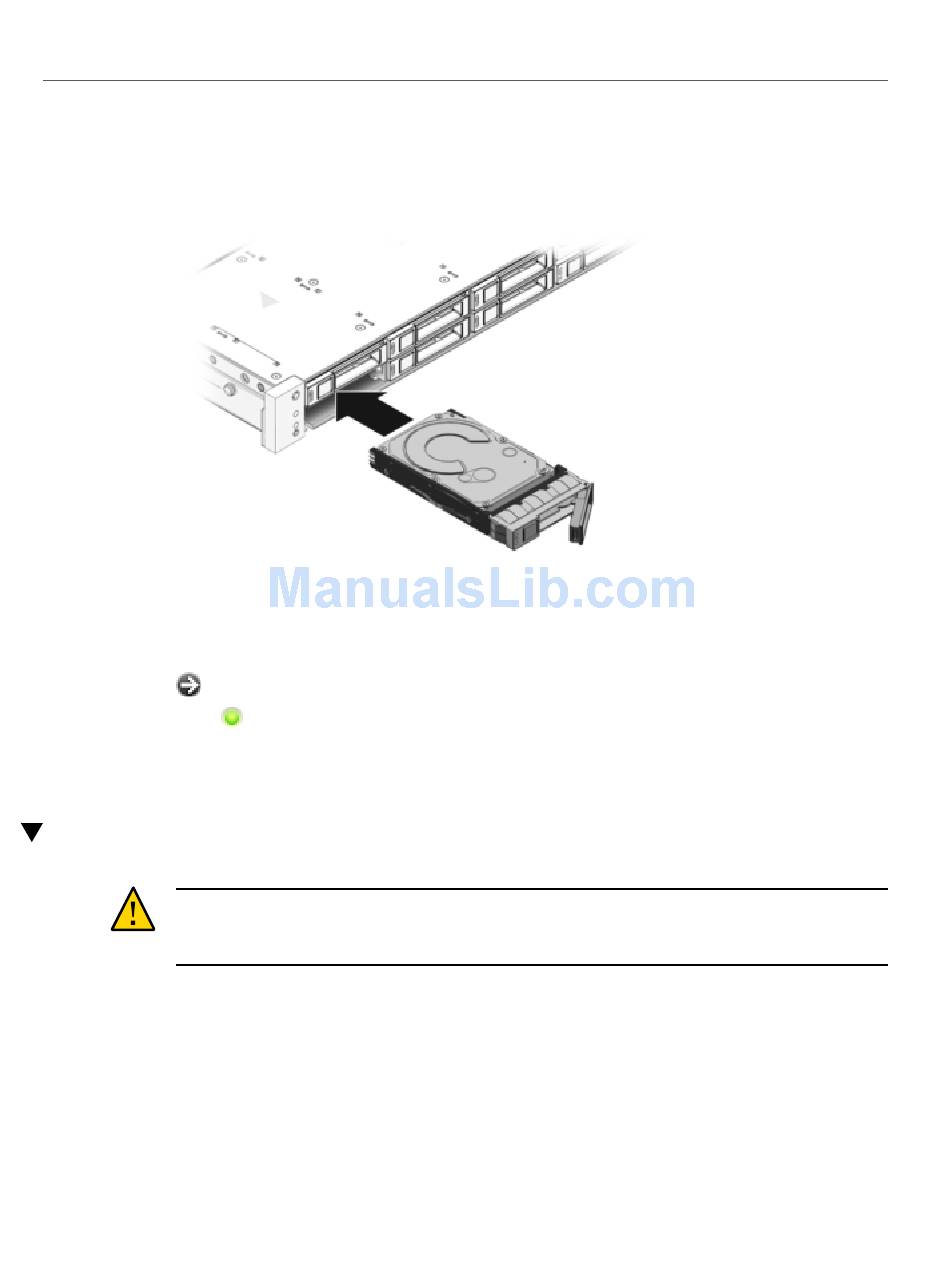

Slide the replacement drive into the slot until it is fully seated.
7.
Close the latch to lock the drive in place.
8.
Go to the Maintenance > Hardware screen of the BUI. Click the right-arrow icon
for the controller or disk shelf and then click Disk to verify that the online
icon
is green for the newly installed drive.
9.
If a fault does not self-clear, see
Replacing a 7x20 Fan Module
Operating a controller for over 60 seconds with fans removed reduces the
Caution -
effectiveness of the cooling system. For this reason, the replacement fan should be unpacked in
advance and ready to insert into the controller chassis as soon as the faulted fan is removed.
Fan modules are hot-swappable and can be removed and installed while the storage controller is
running without affecting other hardware capabilities.
7120 or 7320: The fan modules and status indicators are hidden under a fan door in the 7120
and 7320 storage controllers. Components may differ slightly between the 7120 and 7320,
however service procedures for each are identical. The illustration shows the 7320 controller.
"Repairing Active Problems" on page
Replacing a 7x20 Fan Module
37.
Servicing the 7x20 Controller
175
