For information about how to connect cables to form a cluster, see
in Oracle ZFS Storage Appliance Cabling
Ethernet Ports
The ZS4-4 has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors on the rear panel,
labeled NET 0, NET 1, NET 2, and NET 3 (bottom left to top right), as shown in the figure
below. Use these ports to connect the appliance to the network.
The LEDs located above the NET ports, labeled 2, 0, 3, 1 (left to right) are Link/Activity
indicators.
LED
OFF (1)
ON (0)
Blink
Speed is not indicated for the NET ports.
Note -

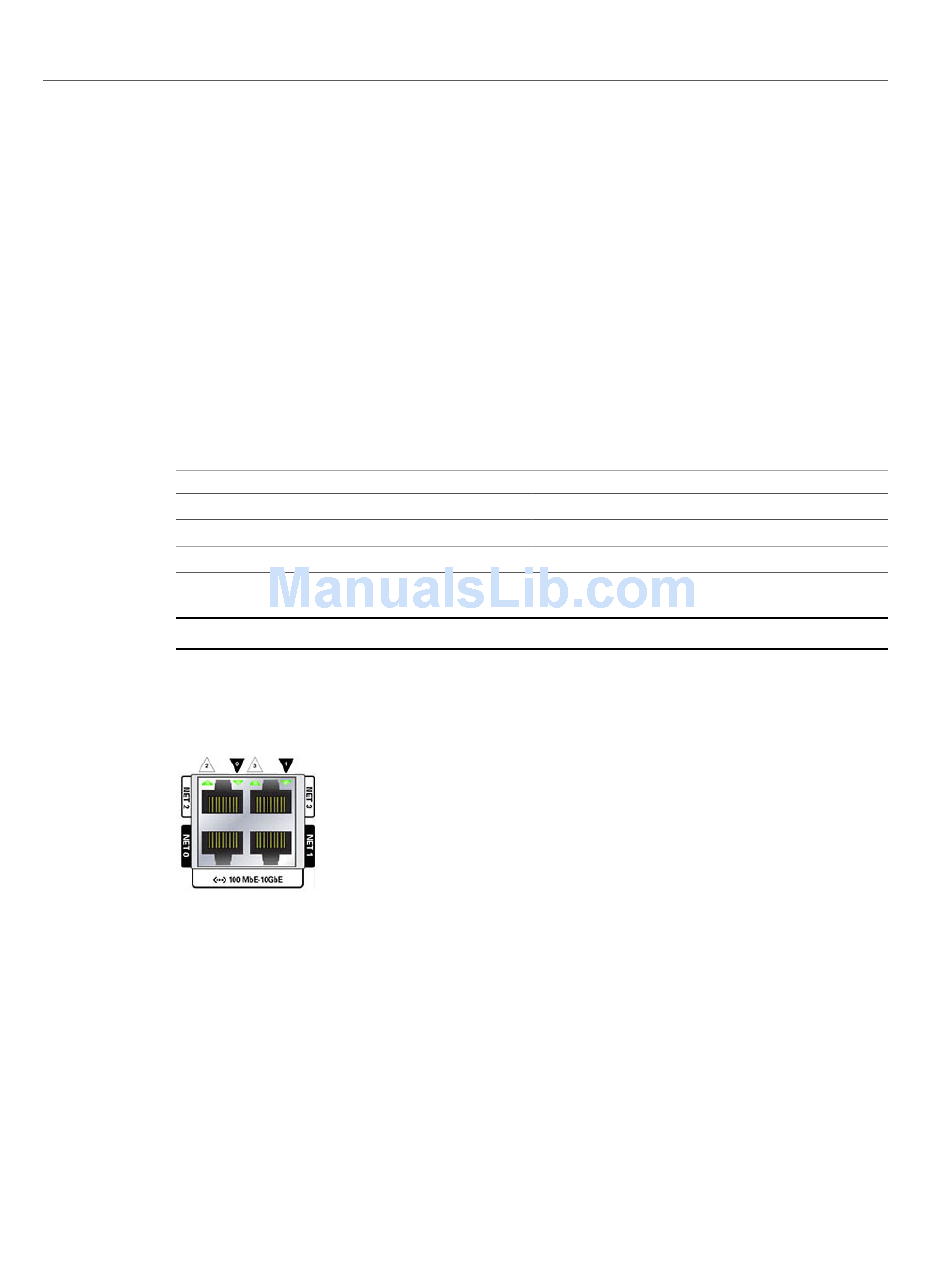

FIGURE 4 ZS4-4 Ethernet Ports
Network Management Port
The network management connector (NET MGT), shown in the figure below, is an RJ-45
10/100/1000 BASE-T Ethernet port and provides an alternate terminal interface to the service
processor (SP) console.
ZS4-4 Controller Hardware Overview
"Connecting Cluster Cables"
Guide.
Status
No Link
Link and no activity
Link and activity
