7120 Connectors - Oracle ZFS Storage Appliance Service Manual

Slot Type
3 PCIe
4 PCIe
4 PCIe
4 PCIe

7120 Connectors

The serial management connector (SER MGT) is an RJ-45 port and provides a terminal
connection to the SP console.

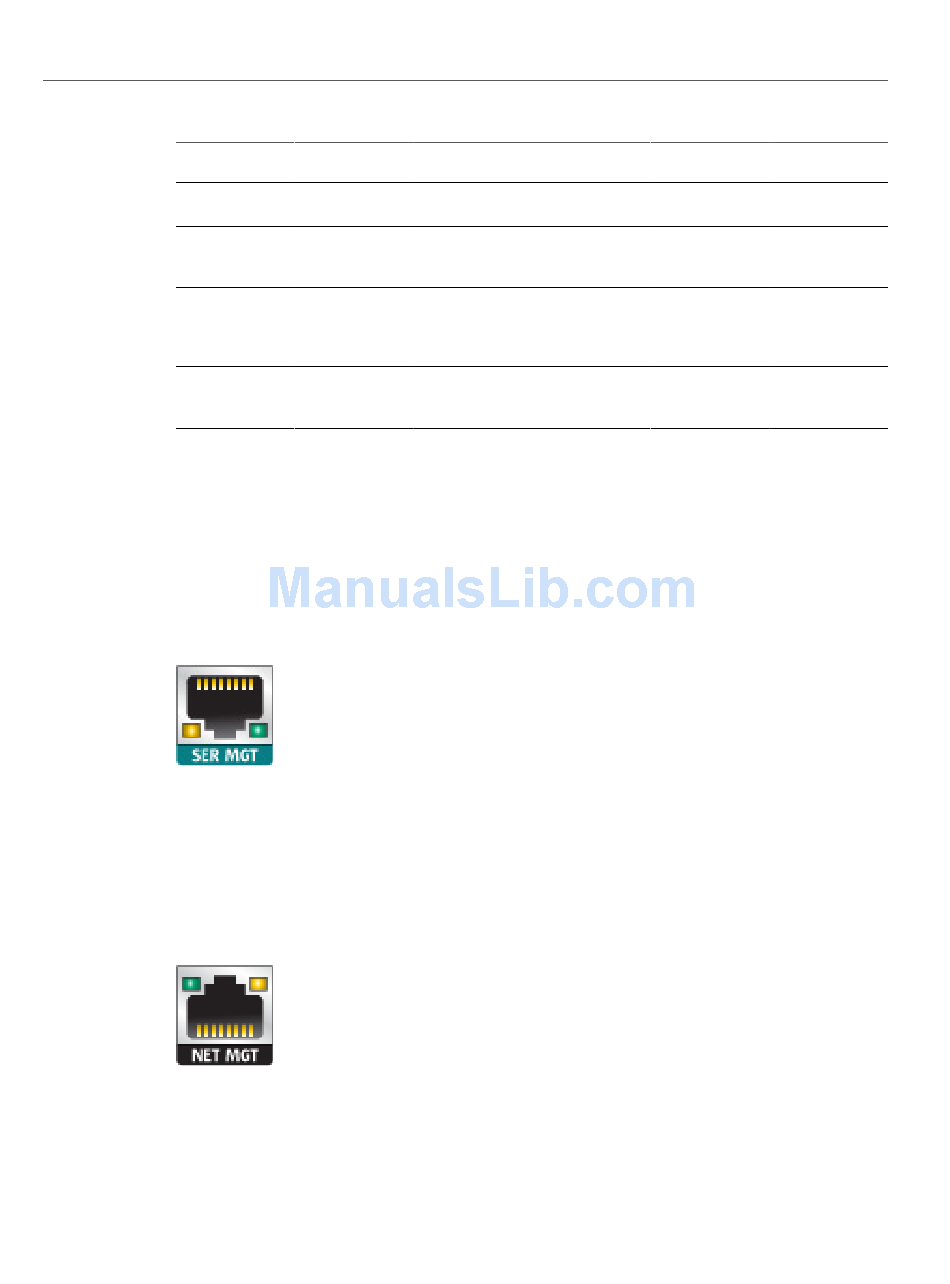

FIGURE 60 7120 Controller Serial Management Port
The network management connector (NET MGT) is an RJ-45 port and provides an alternate
terminal interface to the SP console.
FIGURE 61 7120 Controller Network Management Port
Sun Part Vendor Part
Number Number
375-3665-01 Sun Thebe (INT)
375-3481-01 Intel
EXPI9404PT
371-4325-01 QLogic
375-3609-03 Sun Thebe
(EXT)
7120 Controller Hardware Overview
Description Note
Internal SAS Base
HBA Configuration
QP Copper NIC Optional
Recommended
Front-end
8Gb DP FC Optional
HBA FC Target
or Initiator
(Backup)
8P 6Gb/s SAS Additional
HBA Optional Back-
end
Servicing the 7x20 Controller 251
