ZS3-4 Controller Hardware Overview

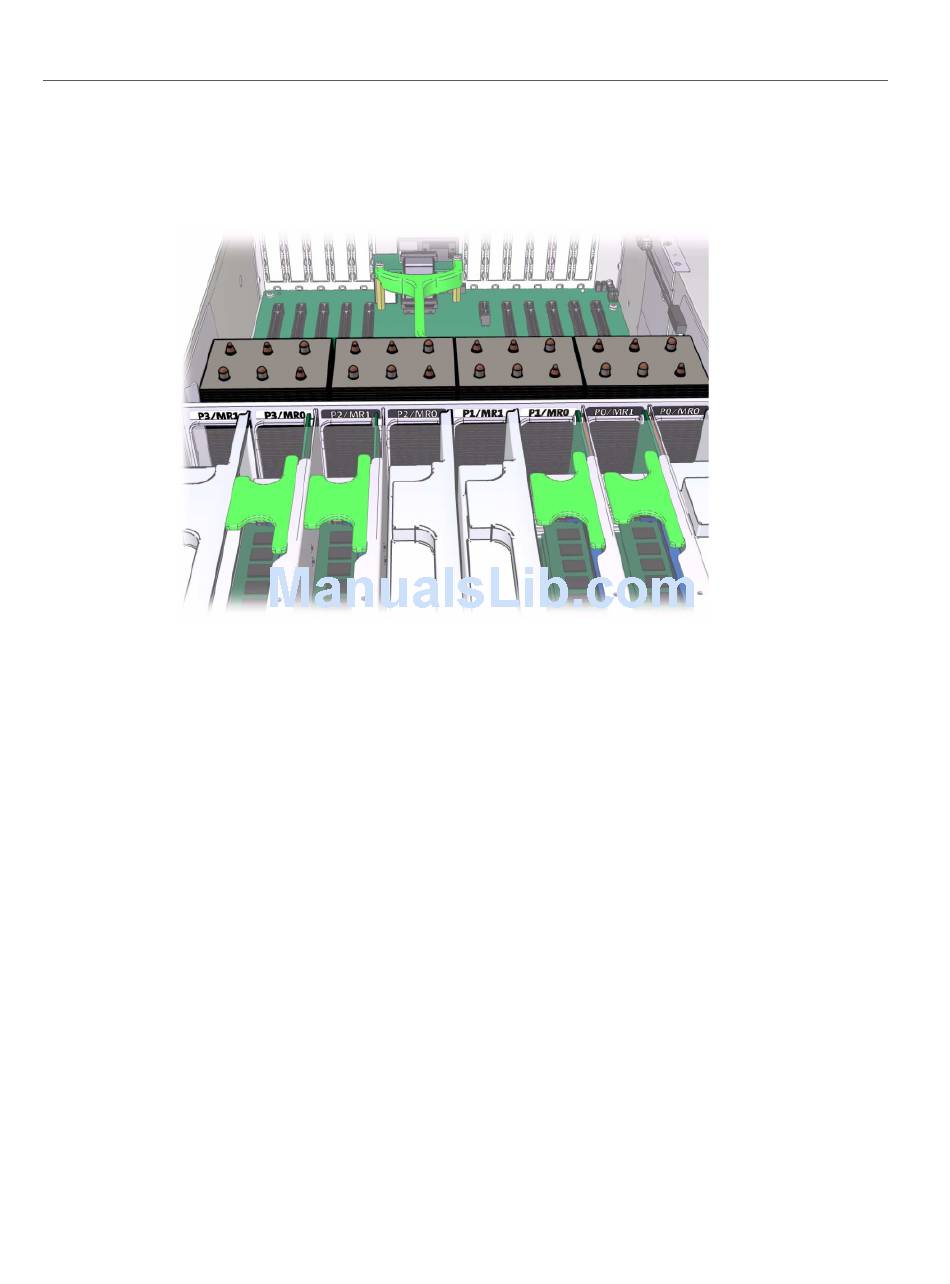

ZS3-4 Controller DIMM Risers
FIGURE 20
Refer to the service label on the cover for DIMM placement information. On every memory
riser, slots D0, D2, D4, and D6 must be populated; optionally, slots D1, D3, D5, and D7 may
be populated as a group on
installed memory risers. All DIMMs in the system must be
all
identical.
Servicing the ZS3-4 Controller
119
