ZS3-4 Controller Fan Modules

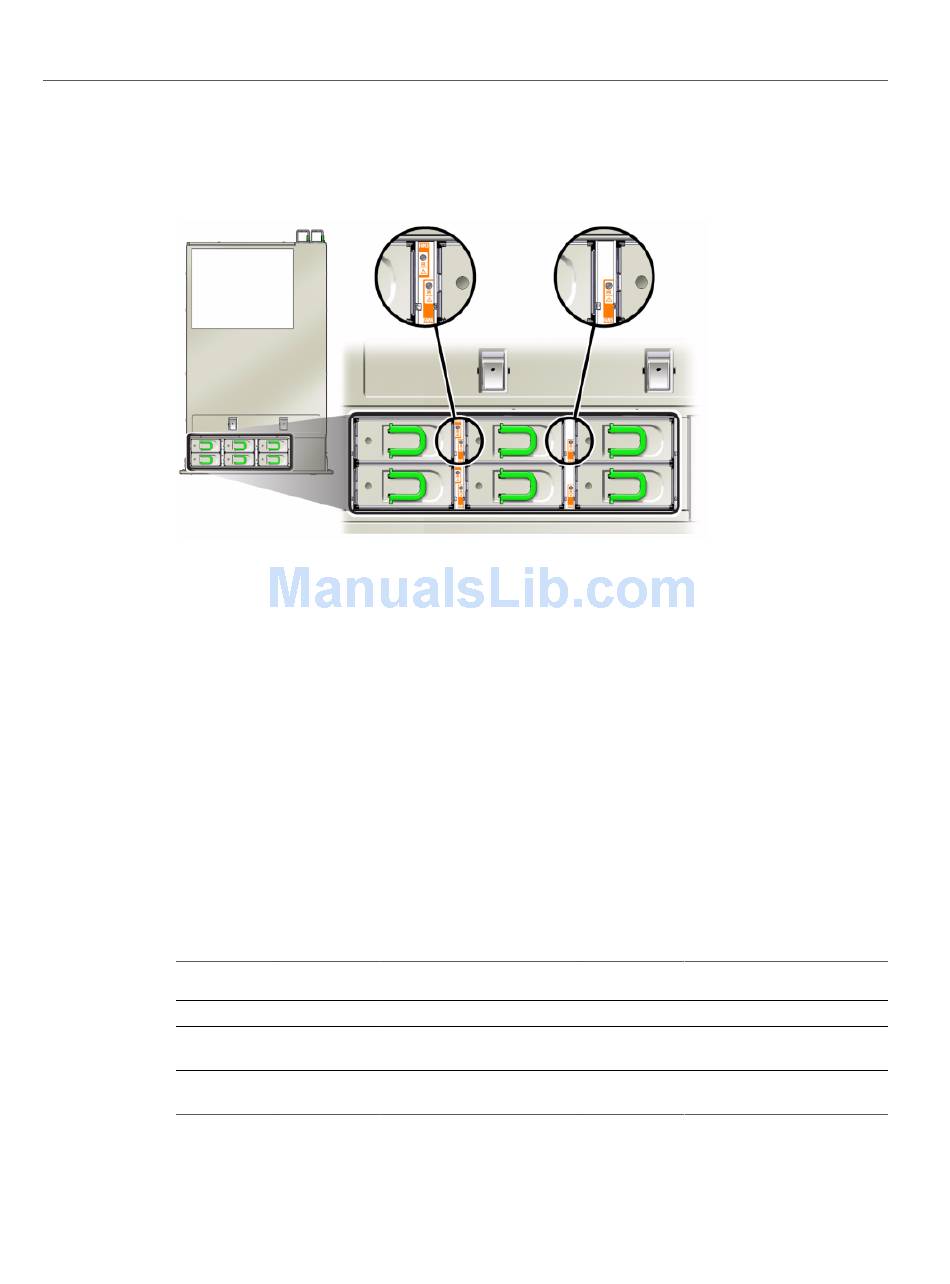

FIGURE 22
Front and rear Service Action Required LEDs
■
Fan Module Service Action Required (TOP) LED on the front of the server
■
Fan Fault LED on or adjacent to the faulty fan module
■
The system Overtemp LED might light if a fan fault causes an increase in system operating
temperature.

ZS3-4 PCIe I/O Cards

ZS3-4 PCIe Options - This table describes the PCIe base configuration and optional slot
assignments for ZS3-4 standalone and cluster configurations.
TABLE 19 ZS3-4 Controller PCIe Options
Mfg Part
Slot
Number
0 7047852
1 7067091
2 7067091
Description
8-port SAS-2 internal HBA
4-port (4x4) SAS-2 external
HBA
4-port (4x4) SAS-2 external
HBA
ZS3-4 Controller Hardware Overview
Max Note
1 Base configuration
4 Base configuration
4 Additional optional back-end
Servicing the ZS3-4 Controller 121
