ZS4-4 Internal Components

The ZS4-4 chassis contains both customer-replaceable units (CRUs) and field-replaceable units
(FRUs) as shown in the following figure. FRUs must be replaced by trained Oracle service
technicians.

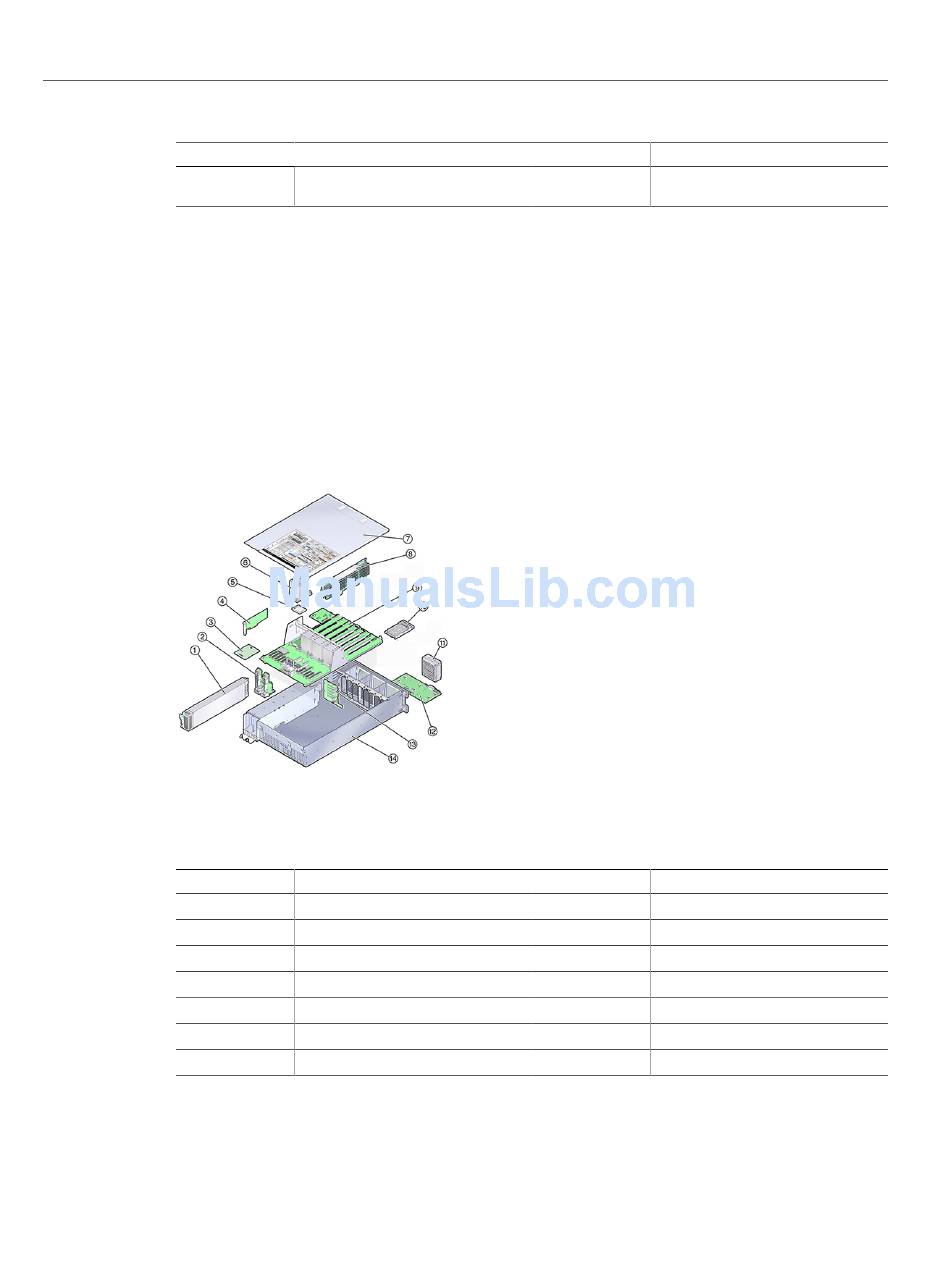

FIGURE 9 Internal Components (Exploded View)
Figure Legend
1 Power supplies (CRU)
2 Power supply backplane (FRU)
3 SP card (FRU)
4 HBA/PCIe cards (CRU)
5 CPU (FRU)
6 Heatsink (FRU)
7 Cover
ZS4-4 Controller Hardware Overview
8 Memory riser card (CRU)
9 Motherboard (FRU)
10 System drive (CRU)
11 Fan module (CRU)
12 Fan board (FRU)
13 Drive backplane (FRU)
14 Chassis
