ZS3-2 Controller Hardware Overview
FIGURE 25
Figure Legend
SAS-2 HBA (slot 1)
1
4x4 SAS-2 6Gb/s HBA (slot 2)
2
PCIe slot 3
3
PCIe slot 4
4
PCIe slot 5
5
PCIe slot 6
6
Note -
Cluster Interface Compatibility - The ZS3-2 controller contains embedded support for
Version 2 clustering ports. It does not have a cluster interface card nor can one be installed in a
PCIe slot.
158 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

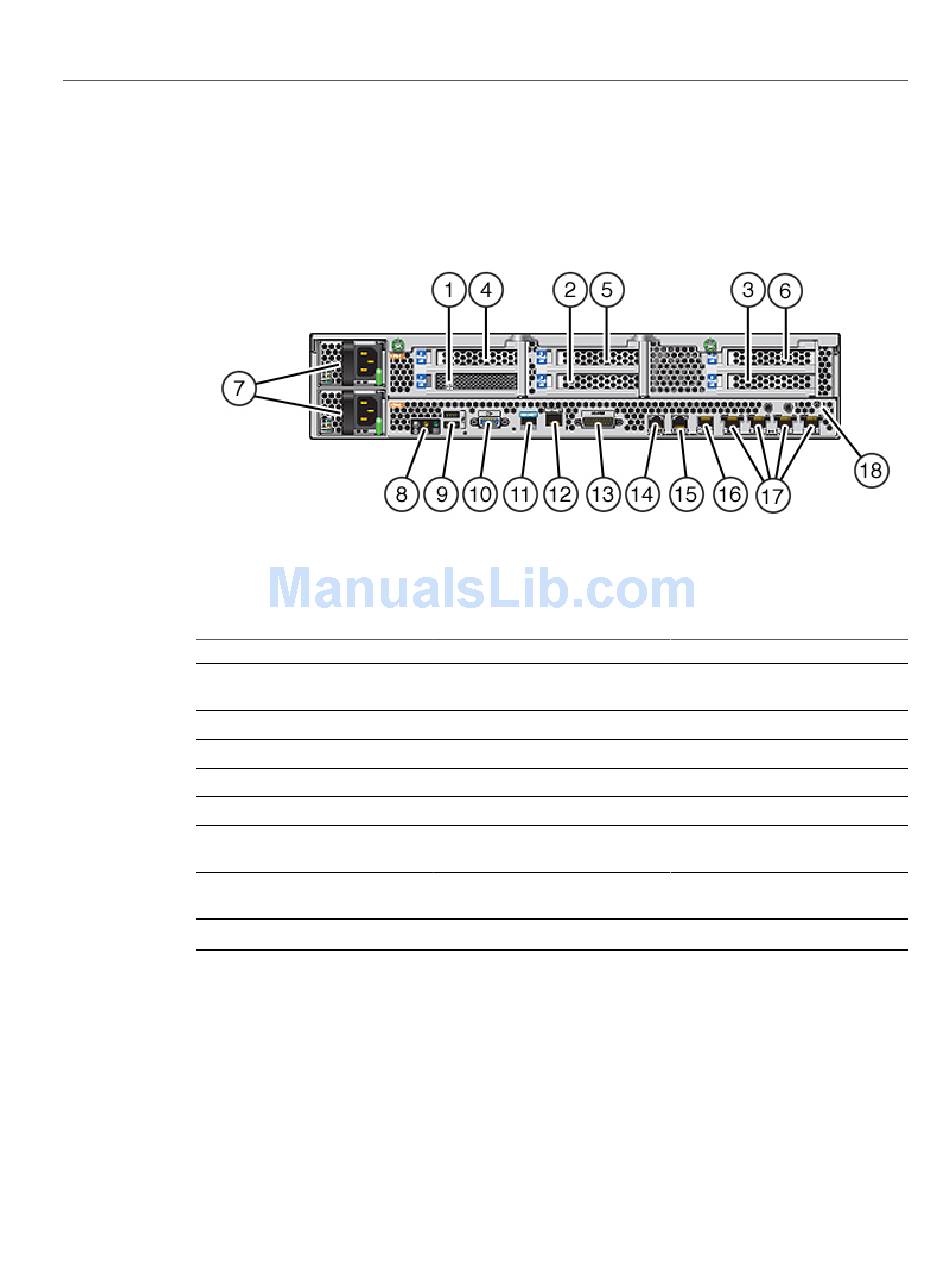

ZS3-2 Controller Rear Panel
The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection only.
AC power supplies PS1 (top), PS0
7
(bottom)
System status LEDs
8
USB 2.0 ports
9
SP 15-pin VGA video port
10
Serial management port
11
Network management (NET
12
MGT) 10/100 BASE-T Ethernet port
Alarm port, DB-15 connector (not
13
used for the ZS3-2)
Cluster I/O ports
14-16
10-Gbit Ethernet ports
17
Chassis ground post
18
