Oracle ZFS Storage Appliance Service Manual page 282

Disk Shelf Hardware Overview

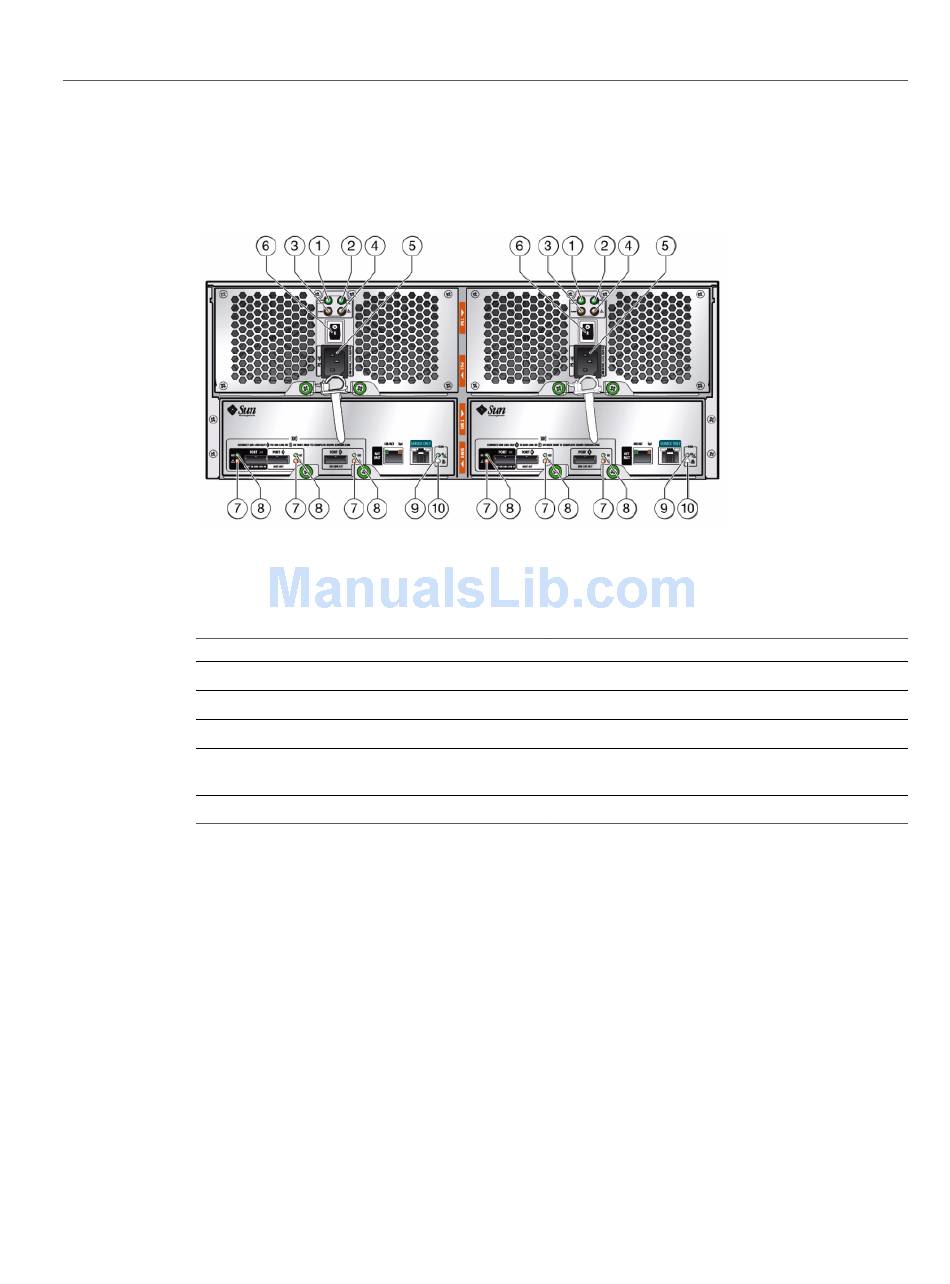

FIGURE 74
Figure Legend
AC power indicator
1
DC power indicator
2
Fan fault indicator
3
Power supply fault indicator
4
Universal power connector
5
Disk Shelf Power Supply Indicators - The following figure shows power supply with fan
module indicators for these disk shelves:
Oracle Storage Drive Enclosure DE2-24P
■
Oracle Storage Drive Enclosure DE2-24C
■
282 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
SIM Board Indicators
Figure Legend
Power switch
6
Port fault indicator
7
Port OK indicator
8
SIM board OK indicator (green)/SIM board fault
9
indicator (amber)
SIM locator indicator
10
