7120 Front Panel

The following figure and legend show the front panel and the drive locations. The Logzilla 3.5"
SSD belongs in slot 3 and is not supported in controllers configured with the internal Sun Aura
flash HBA Logzilla.

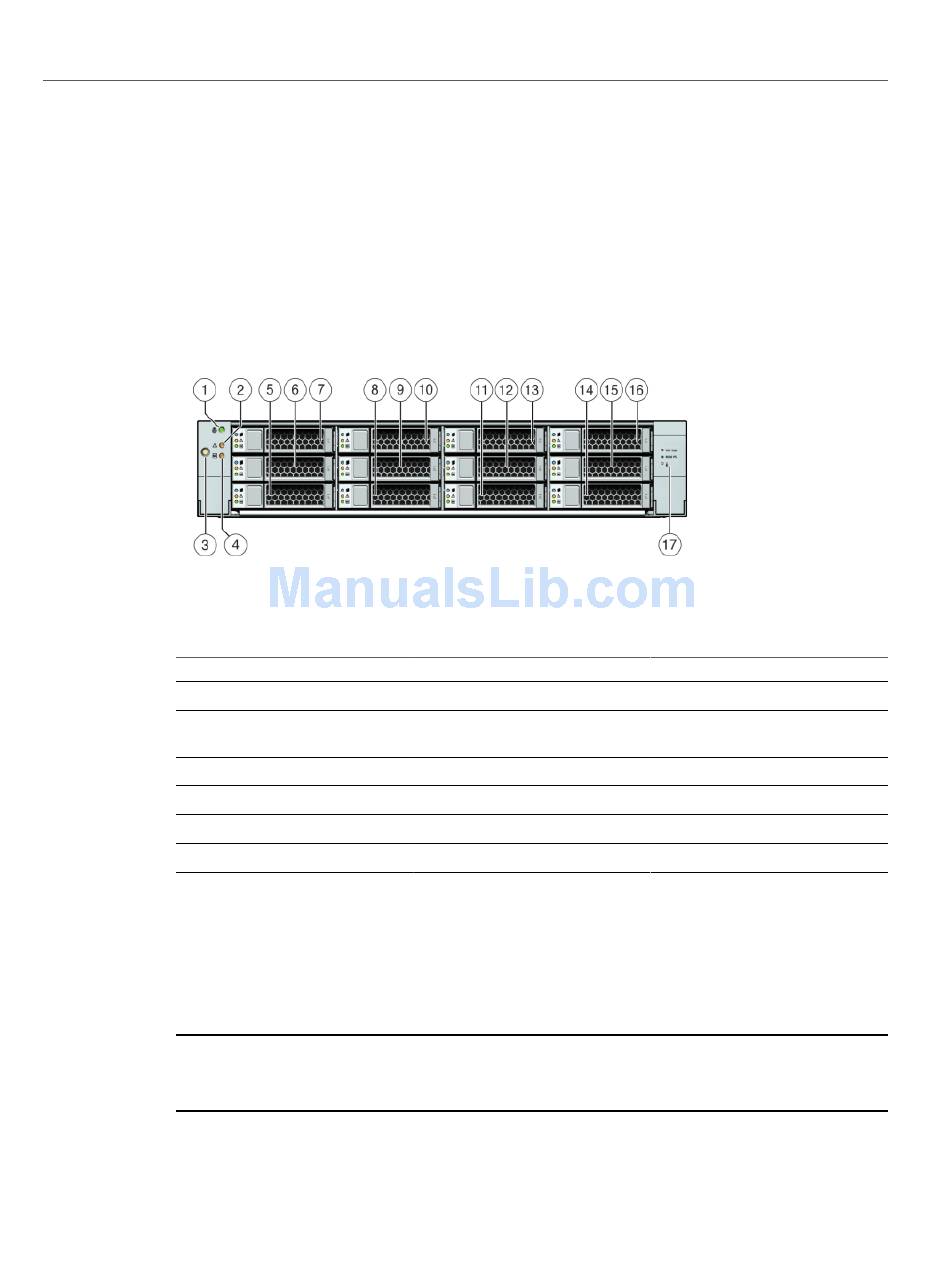

FIGURE 54 7120 Controller Front Panel
Figure Legend
Locator LED/button (white)
1
Service Action Required LED
2
(amber)
Power button
3
Power/OK LED (green)
4
HDD 0
5
HDD 1
6

7120 Rear Panel

The following figure and legend show the rear panel.
Optional Sun Dual Port 40Gb/sec 4x InfiniBand QDR HCAdapter PCIe cards (375-
Note -
3606-01) may be located in slots 1, 2, or 3. 375-3606-01 HCA expansion cards are not
supported in the 10Gb network configurations.
HDD 2
7
HDD or SSD 3
8
HDD 4
9
HDD 5
10
HDD 6
11
HDD 7
12
7120 Controller Hardware Overview
HDD 8
13
HDD 9
14
HDD 10
15
HDD 11
16
Drive map
17
